A&S Power 18650 11.1v 4400mah Lithium ion Battery
prevnext

A&S Power 18650 11.1v 4400mah Lithium ion Battery

  • Art No :AS18650 3S2P
  • Material:Li-ion battery
  • Size :20*70*112mm
  • Weight:285g
  • Description :

    1. Voltage: 11.1V

    2. Capacity: 4Ah

    3. Dimension with PCM: 20*70*112mm

    4. Model: AS18650 3S2P


    5. The Shortest Sample Time:7 days

    6. Order confirmation to delivery:30 days


A&S Power 18650 11.1v 4400mah Lithium ion Battery

Product details


Specification:

A&S Power 18650 11.1v 4400mah Li-ion Battery



Product Description—Li-ion Battery


Item

Rating

Note

3.1    Capacity

Typical

4000mAh

Discharge:0.2CmA

Minimum

3950mAh

3.2    Nominal Voltage

Average  11.1V

Discharge:0.2CmA

3.3    AC Impedance Resistance

220mΩ



3.4    Discharge Cut-off Voltage

9.00V



3.5    Charge Current

800mA

Standard Charge

3.6    Charge Voltage

12.6V



3.7    Charge Time

Approx 6h

Charge: 0.2CmA

3.8    Max. Charge Current

4400mA

1.0CmA

  3.9    Max Continuous Discharge Current

8800mA

2.0CmA

3.10   Weight

Approx 285g



3.11  Operating

Temperature

Charge

0~45



Discharge

-20~60



3.12  Storage

      Temperature

less than 1 month

-20~60



less than 3 months

-20~45

less than 1 year

-20~25

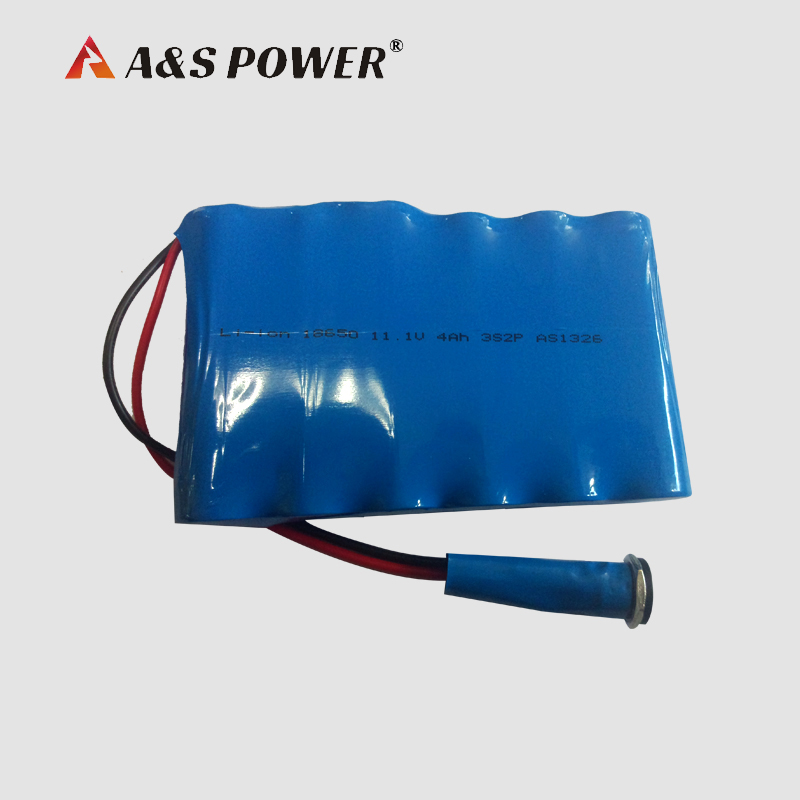

Product Photo


 A&S Power 18650 11.1v 4400Ah li-ion battery

This super capacity battery pack preforms little resistance,super storing capacity,multi-recycable times and non-memory. With its multi-protective device, the inner circuit prevents the box from over-recharging or over-discharging.Under the monitor of our computer,the quality can be assured.

A&S Power 18650 li-ion batteryA&S Power 18650 li-ion battery


A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors.  We hope you find the one in our product list and suite you the best.  If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades.  We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production.  Our Customer Service can help for engineering suggestion to meet your specification.

A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely




Lithium Ion Battery Cell Models:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C) Diameter
 φ ( mm)
Height
 ( mm)
Weight
(approx)(g)
AS-186503.720004.252.753C186543.5
AS-186503.722004.252.753C186545
AS-186503.725004.252.753C186545.5
AS-186503.726004.252.753C186546
AS-186503.632004.252.52C186545.5
AS-186503.633504.252.51C186546
AS-217003.640004.252.55C217068.5
AS-217003.645004.252.53C217069
AS-217003.648004.252.51C217070
AS-217003.650004.252.51C217070



A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C)Weight
(approx)(g)
Certification
AS-18650-2600-113.726004.231C49UL2054,IEC62133(CB),CE,KC,UN38.3
AS-18650-2000-217.420008.461C89 UL2054,IEC62133(CB),UN38.3
AS-18650-2600-217.426008.461C90IEC62133(CB),UN38.3
AS-18650-3350-217.433508.451C92IEC62133(CB)
AS-18650-2000-3211.1400012.690.5C265UL2054,UN38.3
AS-18650-2600-4114.8260016.8121C185IEC62133(CB)
AS-18650-2500-5218.5500021151C480IEC62133(CB),UN38.3
AS-18650-2000-6222.2400025.2182C530IEC62133(CB),UN38.3
AS-21700-5000-143.7200004.22.50.25300UN38.3
AS-21700-4800-123.796004.22.50.2150UN38.3
AS-21700-4800-7325.91500029.417.50.51500CE
AS-21700-50E-227.4100008.450.5300IEC62133(CB),UN38.3




A&S Power Company ProfileA&S Power Lithium Battery factory producedA&S Power Lithium Battery fair photoA&S Power Certification


FAQ


 Q1: Can I have some samples for testing quality?

 A1:  Yes, you can buy some samples of any our products for testing quality and market.

Q2: How should I pay?
A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as  order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.

Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne          by the buyers, for more details, please contact us.

Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you             place official order.

Q5: Are you factory?
A5: yes,we are factory.
