A&S Power 2S4P 18650 7.4V 8800mah Lithium ion battery
prevnext

A&S Power 2S4P 18650 7.4V 8800mah Lithium ion battery

  • Art No :AS-2S4P18650-8800mah
  • Material:lithium ion battery
  • Size :39mm*75mm*71mm
  • Weight:375g
  • Description :

    Model:AS-2S4P18650-8800mah

    Voltage:7.4V

    Capacity:8800mah

    Cycle life:over 500times

    Delivery time:3-4 weeks

A&S Power 2S4P 18650 7.4V 8800mah Lithium ion battery

Product details


Specification:

A&S Power 2S4P 18650 7.4V 8800mah Lithium ion battery


1.Model: li-ion 18650 2S4P

2.Voltage: 7.4V

3.Capacity:8800mAh

4.Dimension: 39mm* 75mm*71mm

5.Certificate: CE, UL, ROHS, REACH

 A&S Power 2S4P 18650 7.4V 8800mah Lithium ion battery

Specification


Item

Rating

Note

3.1    Capacity

Typical

8800mAh



Minimum

8600mAh

3.2    Nominal Voltage

Average  7.4V



3.3    AC Impedance Resistance

≤120mΩ



3.4    Discharge Cut-off Voltage

6.0V



3.5    Charge Current

1760mA

Standard Charge

3.6    Charge Voltage

8.4V



3.7    Max. Charge Voltage

8.46V



3.8    Charge Time

Approx 6h

Charge: 0.2CmA(1760mA )

3.9    Max. Charge Current

8800mah



3.10   Max. Discharge Current

8800mah



3.11   Weight

Approx 375.0g



3.12  Operating

Temperature

Charge

0~+45°C



Discharge

-20~+60°C



3.13  Storage

      Temperature

less than 1 month

-5~+35°C

Recommended storage

temperature: 20°C,at the

shipment state

less than 3 months

-5~+35°C

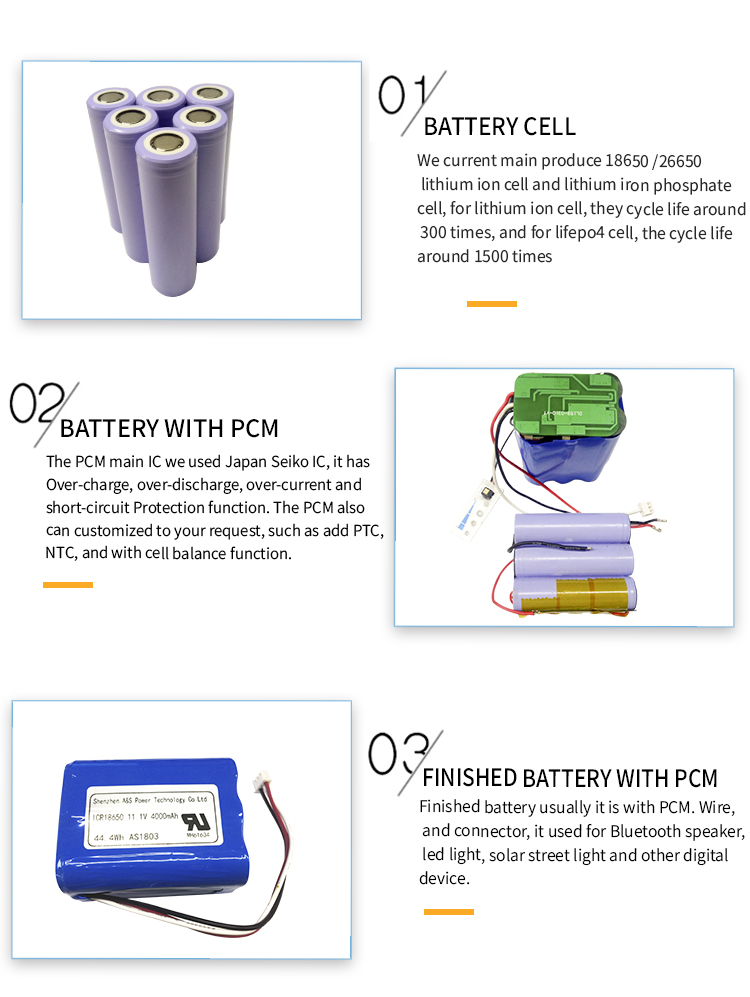

A&S Power 18650 Lithium ion battery

A&S Power 18650 Lithium ion battery

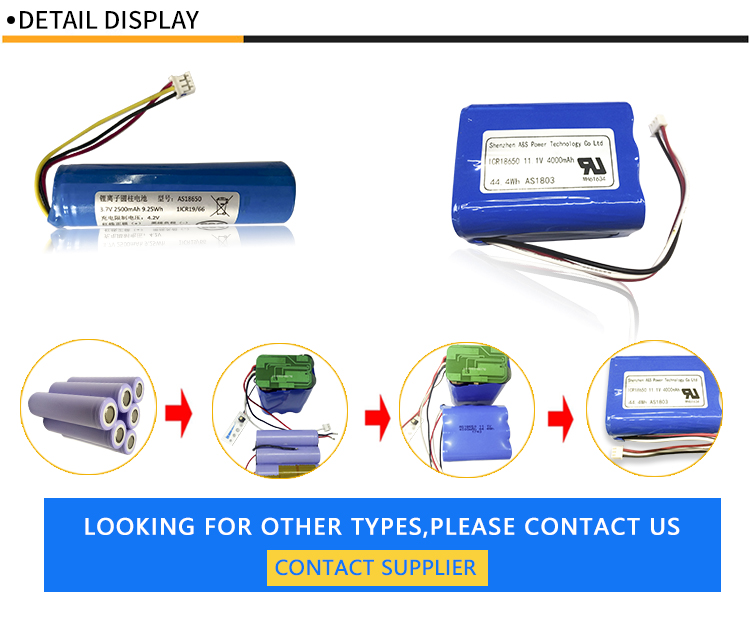

A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors.  We hope you find the one in our product list and suite you the best.  If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades.  We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production.  Our Customer Service can help for engineering suggestion to meet your specification.

A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely


Lithium Ion Battery Cell Models:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C) Diameter
 φ ( mm)
Height
 ( mm)
Weight
(approx)(g)
AS-186503.720004.252.753C186543.5
AS-186503.722004.252.753C186545
AS-186503.725004.252.753C186545.5
AS-186503.726004.252.753C186546
AS-186503.632004.252.52C186545.5
AS-186503.633504.252.51C186546
AS-217003.640004.252.55C217068.5
AS-217003.645004.252.53C217069
AS-217003.648004.252.51C217070
AS-217003.650004.252.51C217070



A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C)Weight
(approx)(g)
Certification
AS-18650-2600-113.726004.231C49UL2054,IEC62133(CB),CE,KC,UN38.3
AS-18650-2000-217.420008.461C89 UL2054,IEC62133(CB),UN38.3
AS-18650-2600-217.426008.461C90IEC62133(CB),UN38.3
AS-18650-3350-217.433508.451C92IEC62133(CB)
AS-18650-2000-3211.1400012.690.5C265UL2054,UN38.3
AS-18650-2600-4114.8260016.8121C185IEC62133(CB)
AS-18650-2500-5218.5500021151C480IEC62133(CB),UN38.3
AS-18650-2000-6222.2400025.2182C530IEC62133(CB),UN38.3
AS-21700-5000-143.7200004.22.50.25300UN38.3
AS-21700-4800-123.796004.22.50.2150UN38.3
AS-21700-4800-7325.91500029.417.50.51500CE
AS-21700-50E-227.4100008.450.5300IEC62133(CB),UN38.3


A&S Power Company Profile

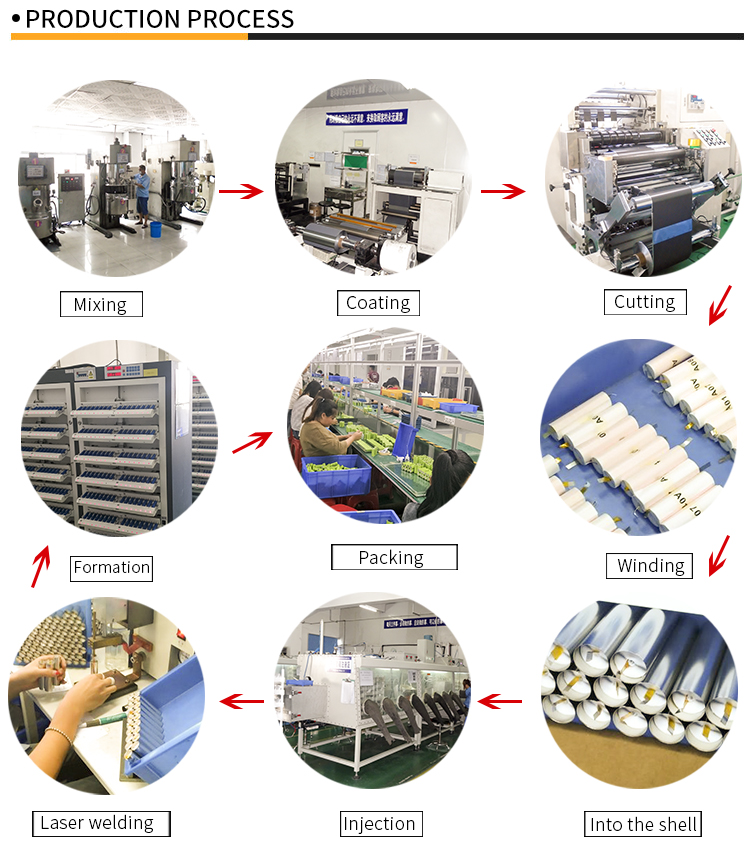

A&S Power Lithium Battery factory produced

A&S Power Lithium Battery fair photo

A&S Power Certification


FAQ


 Q1: Can I have some samples for testing quality?

 A1:  Yes, you can buy some samples of any our products for testing quality and market.
 Q2: How should I pay?
 A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30%  T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
 Q3: What is your package looks like? Can I have the customized package?
 A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne  by the buyers, for more details, please contact us.
 Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place official order.
 Q5: Are you factory?

A5: yes,we are factory.



Our website lists just some of the products we have successfully supplied,but please note this is just representative and an example of our products&service,so,if you cannot see the product you are looking for, please contact us today!!!
