A&S Power Li-ion 18650 3S3P 11.1v 6.6ah Battery Pack for Led Light
prevnext

A&S Power Li-ion 18650 3S3P 11.1v 6.6ah Battery Pack for Led Light

  • Art No :AS18650 3S3P
  • Material:Li-ion battery
  • Size :57*57*71mm
  • Weight:470g
  • Description :

    1. Voltage: 11.1v

    2. Capacity: 6.6Ah

    3. Dimension with PCM: 57*57*71mm

    4. Model: AS18650 3S3P

    5. The Shortest Sample Time:7 days

    6. Order confirmation to delivery:30 days

A&S Power Li-ion 18650 3S3P 11.1v 6.6ah Battery Pack for Led Light

Product details


Specification:

A&S Power Li-ion 18650 3S3P 11.1v 6.6ah Battery for Led Light



Product Description




Item

Rating

Note

3.1    Capacity

Typical

6600mAh

Discharge:0.2CmA

Minimum

650mAh

3.2    Nominal Voltage

Average  11.1V

Discharge:0.2CmA

3.3    AC Impedance Resistance

220mΩ



3.4    Discharge Cut-off Voltage

9.00V



3.5    Charge Current

1320mA

Standard Charge

3.6    Charge Voltage

12.6V



3.7    Charge Time

Approx 6h

Charge: 0.2CmA

3.8    Max. Charge Current

6600mA

1.0CmA

  3.9    Max Continuous Discharge Current

13200mA

2.0CmA

3.10   Weight

Approx 475g



3.11  Operating

Temperature

Charge

0~45



Discharge

-20~60



3.12  Storage

      Temperature

less than 1 month

-20~60



less than 3 months

-20~45

less than 1 year

-20~25


1.High working voltage for single battery cells
2.Strong over-discharge resistance and charge retention rechargeable battery pack
3.Light weight and higher energy density than any rechargeable battery pack

4.Perfect to build rechargeable battery pack for scooters,bike lighing, RC toys (cars and airplanes), robots, cameras, and DVD external batteries


Product Description



A&S Power Li-ion 18650 3S3P 11.1v 6.6ah Battery

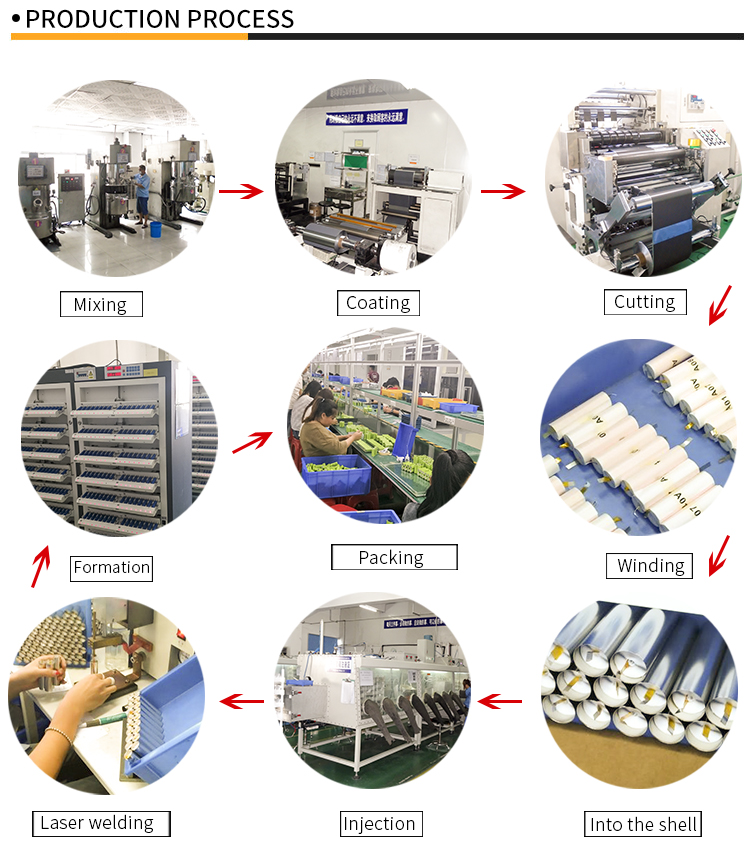

A&S Power Li-ion 18650 Battery Materials&Process


A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors.  We hope you find the one in our product list and suite you the best.  If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades.  We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production.  Our Customer Service can help for engineering suggestion to meet your specification.

A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely



Lithium Ion Battery Cell Models:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C) Diameter
 φ ( mm)
Height
 ( mm)
Weight
(approx)(g)
AS-186503.720004.252.753C186543.5
AS-186503.722004.252.753C186545
AS-186503.725004.252.753C186545.5
AS-186503.726004.252.753C186546
AS-186503.632004.252.52C186545.5
AS-186503.633504.252.51C186546
AS-217003.640004.252.55C217068.5
AS-217003.645004.252.53C217069
AS-217003.648004.252.51C217070
AS-217003.650004.252.51C217070



A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C)Weight
(approx)(g)
Certification
AS-18650-2600-113.726004.231C49UL2054,IEC62133(CB),CE,KC,UN38.3
AS-18650-2000-217.420008.461C89 UL2054,IEC62133(CB),UN38.3
AS-18650-2600-217.426008.461C90IEC62133(CB),UN38.3
AS-18650-3350-217.433508.451C92IEC62133(CB)
AS-18650-2000-3211.1400012.690.5C265UL2054,UN38.3
AS-18650-2600-4114.8260016.8121C185IEC62133(CB)
AS-18650-2500-5218.5500021151C480IEC62133(CB),UN38.3
AS-18650-2000-6222.2400025.2182C530IEC62133(CB),UN38.3
AS-21700-5000-143.7200004.22.50.25300UN38.3
AS-21700-4800-123.796004.22.50.2150UN38.3
AS-21700-4800-7325.91500029.417.50.51500CE
AS-21700-50E-227.4100008.450.5300IEC62133(CB),UN38.3




A&S Power Li-ion 18650 BatteryA&S Power Li-ion 18650 BatteryA&S Power Company ProfileA&S Power Lithium Battery factory produced


A&S Power Lithium Battery Cooperation Cases

A&S Power Certification

FAQ



 Q1: Can I have some samples for testing quality?

 A1:  Yes, you can buy some samples of any our products for testing quality and market.

Q2: How should I pay?
A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as  order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.

Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne          by the buyers, for more details, please contact us.

Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you             place official order.

Q5: Are you factory?

A5: yes,we are factory.


WARNING : To reduce the risk of fire or burns
Do not attempt to open, disassemble, or service the battery pack.
Do not crush, puncture, short external contacts of dispose of in fire or water above 60 ¡æ(140 ¨H)
Replace only with the battery pack designated for this product
