KC Certification approval 552035 3.7v 350mah lipo battery

  • Art No :CPL552035
  • Material:Li-polymer battery
  • Size :5.7*21*37.5mm
  • Weight:7.0g
  • Description :1. Voltage: 3.7v 2. Capacity: 350mah 3. Certification: UL/IEC62133/CE/ROHS/UN38.3 KC

KC Certification approval 552035 3.7v 350mah lipo battery

Product details

                                             552035 3.7v 350mah lipo battery

Specification:

Item

Rating

Note

3.1    Capacity

Typical

350mAh

Discharge:0.2CmA

cut off Voltage:3V for cell

Minimum

330mAh

3.2    Nominal Voltage

Average  3.7V

Discharge:0.2CmA

cut off Voltage:3V for cell

3.3    AC Impedance Resistance

320mΩ



3.4    Discharge Cut-off Voltage

3.00V



3.5    Charge Current

150mA



3.6    Charge Voltage

4.2V



3.7    Max. Charge Voltage

4.23V



3.8    Charge Time

Approx 6.0h

Charge: 0.2CmA

3.9    Max. Charge Current

350mA

1.0CmA

3.10   Max. Discharge Current

350mA

1.0CmA

3.11   Weight

Approx7.0g



3.12  Operating

Temperature

Charge

0~+40



Discharge

-20~+60



3.13  Storage

      Temperature

less than 1 month

-20~+45

Recommended storage

temperature: 20,at the

shipment state

less than 3 months

-20~+35

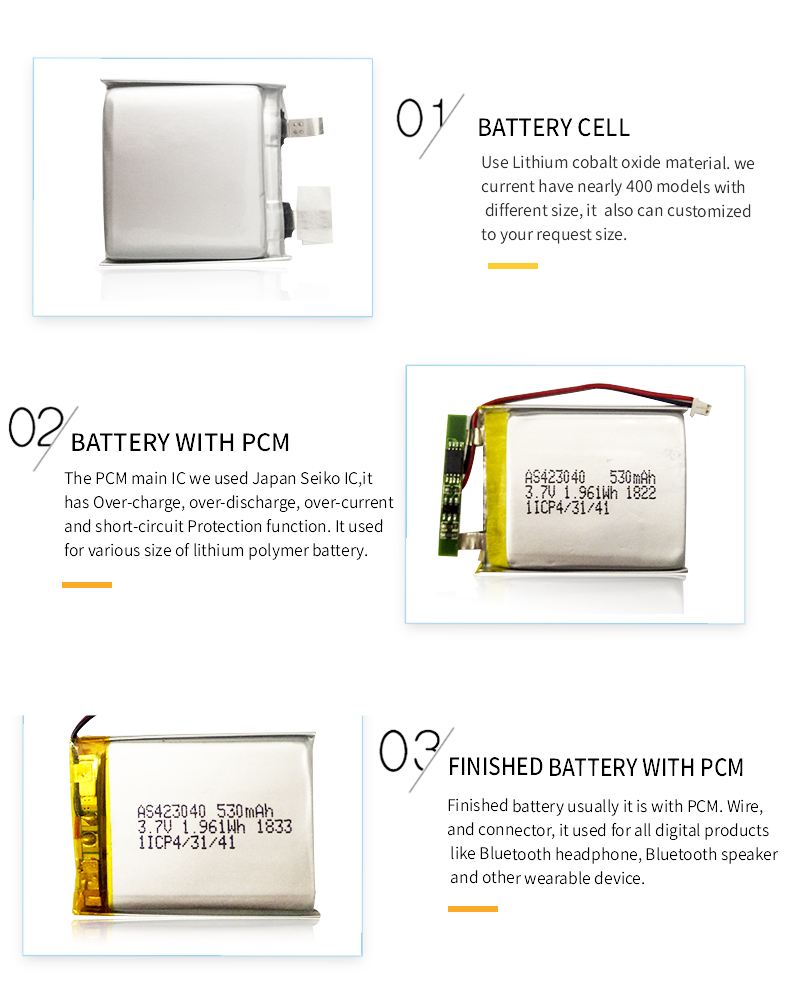

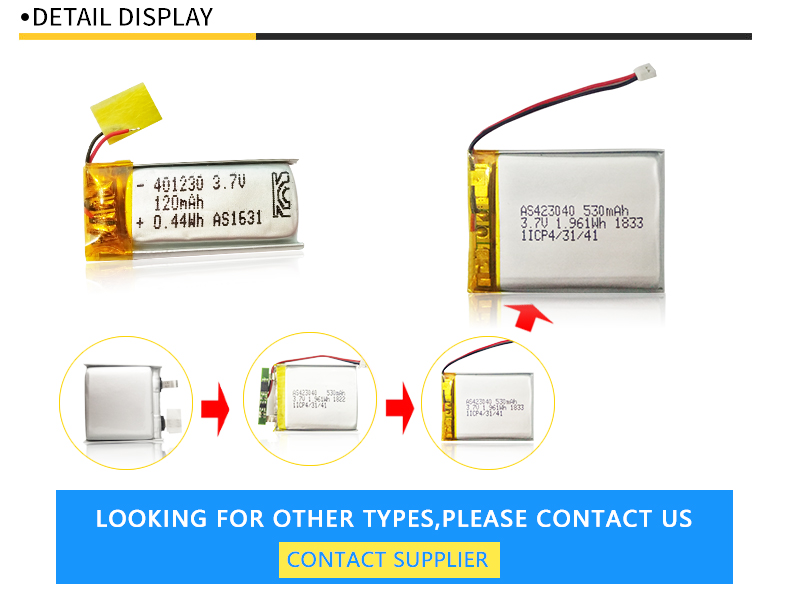

Product Photo

552035 3.7v 350mah lipo battery


电池_01电池_02电池_03电池_04电池_05电池_06


FAQ


 Q1: Can I have some samples for testing quality?

 A1:  Yes, you can buy some samples of any our products for testing quality and market.



Q2: How should I pay?

A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other paymentterms, please contact us freely.

Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne          by the buyers, for more details, please contact us.

Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for smallorders, for more QTY. order, let's confirm when you place official order.

Q5: Are you factory?
A5: yes,we are factory.
