KC/UL Certification approval 602240 3.7V 500mah lipo battery
prevnext

KC/UL Certification approval 602240 3.7V 500mah lipo battery

  • Art No :AS602240
  • Material:lipo battery
  • Size :6*22*40mm
  • Weight:11g
  • Description :

    KC/UL1642 Certification approval 602240 3.7V 500mah lipo battery

    Application Field: Livestock Monitor,Security Camera,Bluetooth Headset

KC/UL Certification approval 602240 3.7V 500mah lipo battery

Product details


Specification:

UL1642 KC approval rechargeable 602240 3.7v 500mah lithium polymer battery with PCM

Product Description

Product Description for UL1642 KC approval rechargeable 602240 3.7v 500mah lithium polymer battery with PCM

Item

Rating

Note

3.1    Capacity

Typical

500mAh

Discharge:0.2CmA

cut off Voltage:3.0V for cell

Minimum

480mAh

3.2    Nominal Voltage

Average  3.7V

Discharge:0.2CmA

cut off Voltage:3.0V for cell

3.3    AC Impedance Resistance

≤125mΩ



3.4    Discharge Cut-off Voltage

3.00V



3.5    Charge Current

100.0 mA

Standard Charge

3.6    Charge Voltage

4.2V



3.7    Max. Charge Voltage

4.23V



3.8     Storage humidity

< 75%RH

Hygrometer

3.9    Max. Charge Current

500mA

1.0CmA

3.10   Max. Discharge Current

500mA

1.0 CmA

3.11   Weight

Approx 10.0g



3.12  Operating

Temperature

Charge

0~+45°C



Discharge

-20~+60°C



3.13  Storage

      Temperature

less than 1 month

-20~+45°C

Recommended storage

temperature: 20°C,at the

shipment state

less than 3 months

-20~+35°C

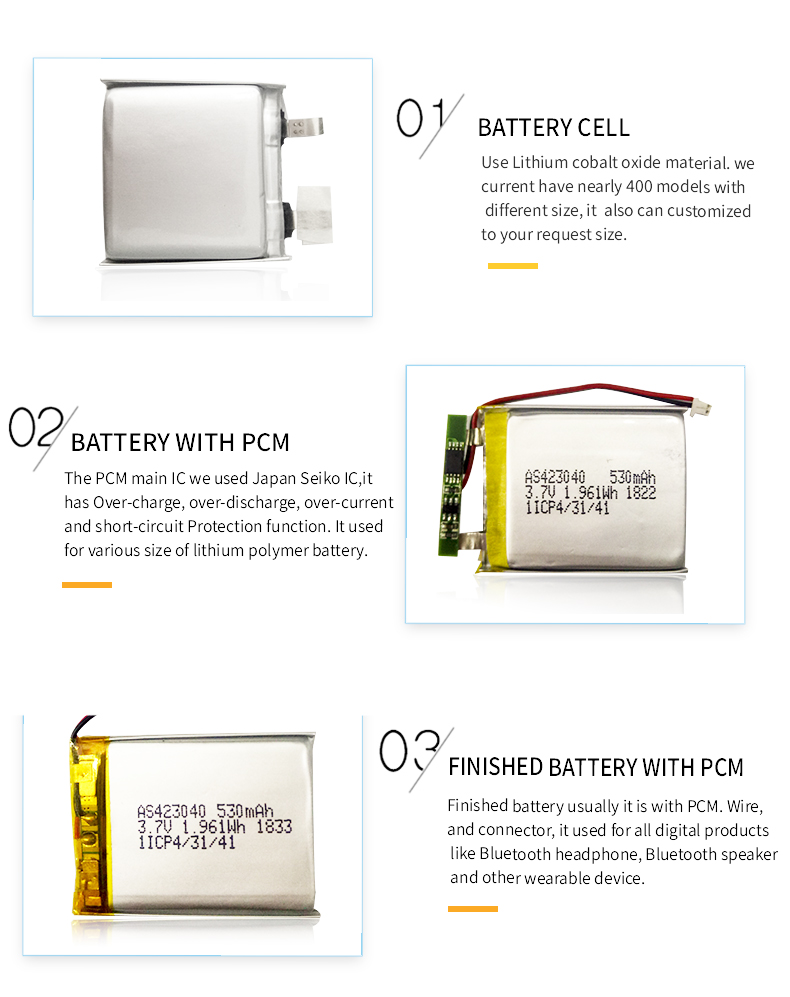

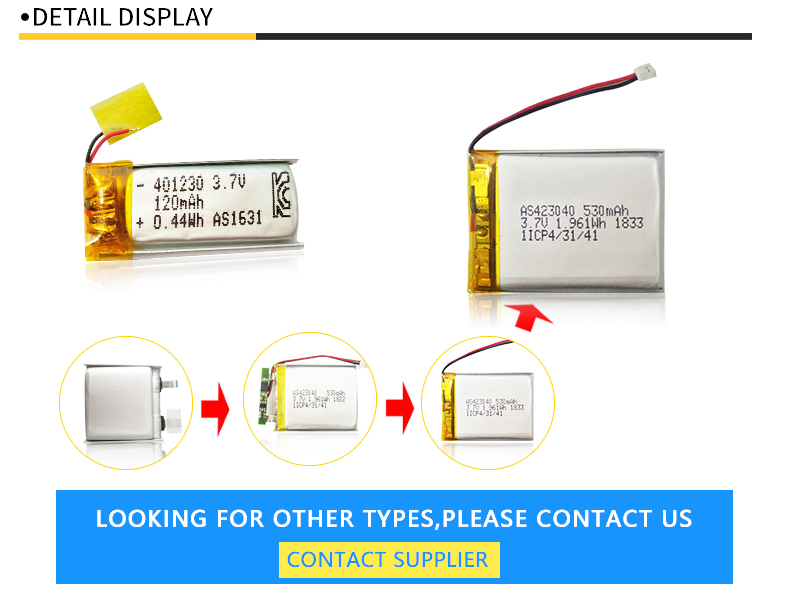

Product Pictures

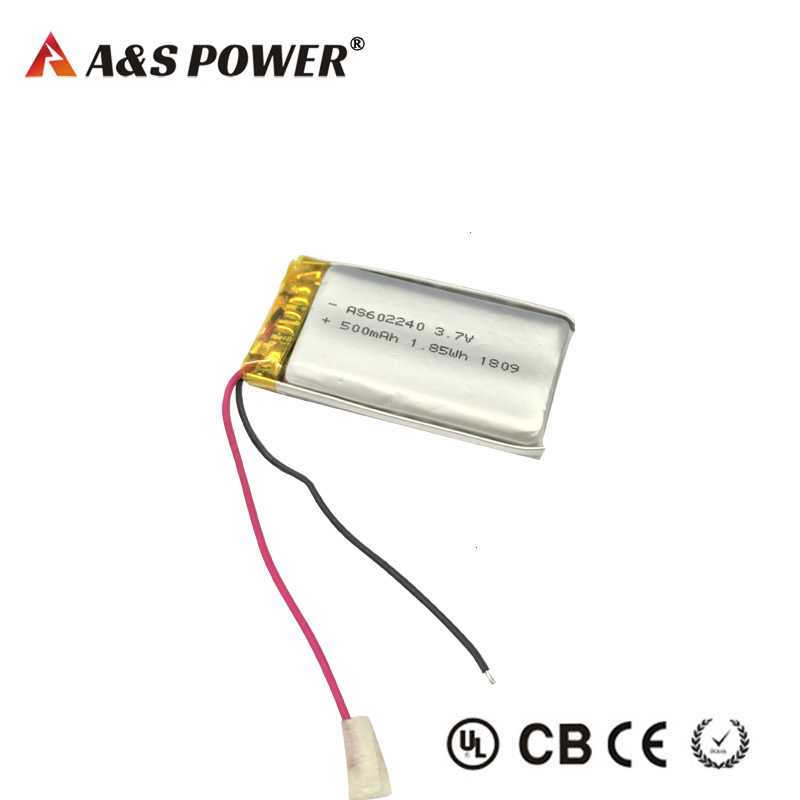

A&S Power 602240 3.7v 500mah lithium polymer battery

A&S Power 3.7v lithium polymer battery

A&S Power 3.7v lithium polymer battery


A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors.  We hope you find the one in our product list and suite you the best.  If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades.  We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production.  Our Customer Service can help for engineering suggestion to meet your specification.

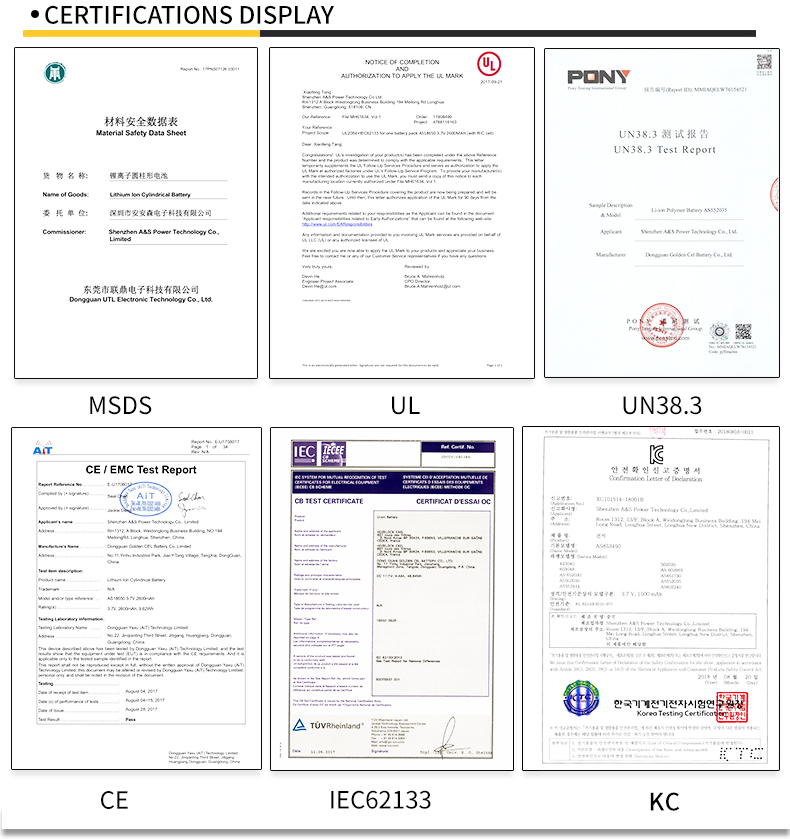

A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely


A&S Power Lithium Polymer Battery Model List With Certifications:



Model

Nominal voltage(V)Capacity (mAh)

Thickness

 (mm)

Width

 (mm)

Length

 (mm)
Certification
AS101003.758Diameter: 1010CQC
AS083103.7130Diameter: 8.031IEC62133, UN38.3
AS174503.71100Diameter: 1745IEC62133(CB), UN38.3
AS105003.7390Diameter: 1050IEC62133(CB), UN38.3
AS1020403.7700102040UL1642,CE,UN38.3
AS1022313.7600102231UL1642
AS1030353.71000103035UL1642,CE
AS1034503.72000103450UL1642,CE,UN38.3
AS1040493.72600104049UL1642,IEC62133(CB),CE,UN38.3
AS1040653.73200104065UL1642,IEC62133(CB),CE,BIS,UN38.3
AS1050733.75000105073UL1642,CE
AS1125603.71800112560UL1642
AS1250993.73750125099UL1642
AS1263633.75400126363UL1642,UN38.3
AS2535503.73602.53550UL1642,IEC62133(CB)
AS2714203.7202.714
UL1642
AS3013203.7553.01320UL1642
AS3020253.71003.02025UL1642
AS3023233.71103.02323UL1642,UN38.3
AS3025303.71803.02530KC
AS3030803.78503.03080UL1642,IEC62133,CE,UN38.3
AS30621733.735003.062173UL1642
AS3211293.7703.21129UL1642
AS3511203.7403.51120UL1642,CE
AS3511213.7453.51121UL1642
AS3520253.71103.52025UL1642,CE
AS3527303.72203.52730UL1642,CE
AS3565853.720003.56585UL1642
AS3570903.728003.57090UL1642,CE
AS3710423.71053.71042UL1642
AS3810183.7403.81018UL1642
AS3915203.7903.91520UL1642
AS3922653.75103.92265UL1642
AS4008303.7604.0830UL1642,CE
AS4010203.7554.01020UL1642,CE
AS4010303.7804.01030UL1642,CE,UN38.3
AS4011193.7504.01119UL1642
AS4011203.7604.01120UL1642
AS4012303.71204.01230UL1642,IEC62133(CB),KC,UN38.3,CQC
AS4012353.71304.01235UN38.3
AS4012453.71904.01245CE
AS4018243.71004.01824KC
AS4025253.72004.02525CE,KC,UN38.3
AS4030403.74304.03040UL1642,CE
AS4050703.717004.05070UL1642,CE,UN38.3
AS4050803.717504.05080UN38.3
AS4068683.722004.06868UL1642,CE
AS4230403.75304.23040UL1642,UL2054,CE,KC,UN38.3
AS4420303.72104.42030UL1642,CE
AS4434933.715004.43493UL1642
AS4512683.72804.51268UL1642
AS4524283.72504.52428CE
AS4550603.714004.55060UL1642,CE
AS4617303.72004.61730UL1642,CE,KC,UN38.3
AS4812213.7704.81221UL1642,CE
AS4834503.78504.83450UL1642,CE,UN38.3
AS4958923.730004.95892UL1642
AS5012353.71605.01235KC,UN38.3
AS5020253.71805.02025UL1642,CE,KC
AS5020303.72405.02030UL1642,CE,KC,UN38.3
AS5022483.75005.02248UL1642,IEC62133(CB),CE,UN38.3
AS5030303.74305.03030UL1642,CE,KC
AS5030343.74605.03034UL1642,CE
AS5030353.75005.03035UL1642,CE
AS5045523.712005.04552UL1642,CE
AS5050553.818005.05055UL1642,UL2054,IEC62133(CB),CE,UN38.3
AS5057713.722005.05771UL1642,CE
AS5060773.734005.06077UL1642,IEC62133(CB),CE,UN38.3
AS5234503.710005.23550UL1642,CE
AS5350583.716005.35058UL1642,CE
AS5424353.75005.42435UN38.3
AS5520353.73505.52035UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS
AS5525403.75405.52540UL1642,CE
AS5533453.77205.53345UL1642,CE
AS5534363.77405.53436UL1642,CE
AS5534443.7650/9505.53444UL1642,CE,KC
AS5536403.78505.53640UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,CQC
AS5537593.713505.53759UL1642,CE
AS5565853.736005.56585UL1642
AS5624383.74005.62438UL1642,CE
AS5835733.715005.83573UL1642
AS5840703.720005.84070UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,PSE
AS5935453.710505.93545CE
AS6013623.75006.0 1362UL1642,CE
AS6015303.72506.0 1530CE
AS6014703.76006.0 1470CE
AS6020253.72006.0 2025CE
AS6020303.73006.02030CE,KC
AS6022403.75006.02240UL1642,CE,KC
AS6026633.710006.02663UL1642,IEC62133,CE,KC,UN38.3
AS6030303.75206.03030UL1642,IEC62133(CB),CE,KC,UN38.3,WERCS
AS6030403.77506.03040UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS
AS6030483.79006.03048UL1642,CE,KC,UN38.3
AS6032453.77206.03245UL1642
AS6034503.710506.03450UL1642,IEC62133(CB),CE,KC,UN38.3
AS6034653.713506.03465UL1642,CE
AS6039523.714006.03952CE
AS6040503.711006.04050UL1642,IEC62133(CB),UN38.3
AS6060603.72500/30006.06060UL1642,CE
AS60601153.750006.060115UL1642,CE
AS6234413.710006.23441CE
AS6240463.712006.24046UL1642,IEC62133(CB),CE,UN38.3
AS64821483.737506.482148UL1642
AS6520303.73506.52030UL1642,CE,KC,UN38.3
AS6526313.75206.52631UL1642,CE
AS6531363.78006.53136CE
AS6821343.75006.82134UL1642
AS7012353.72507.0 1235CE
AS7017293.73007.0 1729UL1642,BIS
AS7014163.71007.0 1416UL1642,CE
AS7019193.71507.01919UL1642,CE
AS7020403.75007.02040UL1642,IEC62133(CB),CE,UN38.3,WERCS
AS7034403.710007.03440UL1642,UL2054,CE,KC,UN38.3
AS7040603.718007.04060UL1642,CE
AS7050883.734007.05088UL1642
AS7232723.717007.23272UL1642
AS7530483.712007.53048UL1642,CE,KC
AS7550703.730007.55070UL1642,IEC62133(CB),CE, KC
AS8020303.74208.02030UL1642,CE
AS8030353.78008.03035UL1642,UL2054,CE,KC,UN38.3
AS8030403.79008.03040CE
AS8036483.712008.03648UL1642,CE
AS8050523.725008.05052UL1642
AS80511163.769008.051116UL1642,CE
AS8534503.715008.53450UL1642,CE,CB,KC,UN38.3
AS8722373.77508.72237UL1642
AS9042863.740009.0 4286UL1642,CE
AS9546743.740509.54674UL1642
AS9627313.77209.62731UL1642
AS853450-2P3.73000173553UL1642,UL2054,UN38.3
