A&S Power 18650 3S1P 11.1v 2ah Li-ion Battery pack for LED light
- Art No :AS18650 3S1P
- Material:lithium ion battery
- Size :20*57*70mm
- Weight:145g
- Description :
1. Voltage: 11.1v
2. Capacity: 2Ah
3. Dimension with PCM: 20*57*70mm
4. Model:AS18650 3S1P
Specification:
A&S Power 18650 3S1P 11.1v 2ah Li-ion Battery pack for LED light
Specification:
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
2000mAh |
Discharge:0.2CmA |
|
|
Minimum |
1950mAh |
|||
|
3.2 Nominal Voltage |
Average 11.1V |
Discharge:0.2CmA |
||
|
3.3 AC Impedance Resistance |
≤220mΩ |
|
||
|
3.4 Discharge Cut-off Voltage |
9.00V |
|
||
|
3.5 Charge Current |
400mA |
Standard Charge |
||
|
3.6 Charge Voltage |
12.6V |
|
||
|
3.7 Charge Time |
Approx 6h |
Charge: 0.2CmA |
||
|
3.8 Max. Charge Current |
2000mA |
1.0CmA |
||
|
3.9 Max Continuous Discharge Current |
4000mA |
2.0CmA |
||
|
3.10 Weight |
Approx 145g |
|
||
|
3.11 Operating Temperature |
Charge |
0~45℃ |
|
|
|
Discharge |
-20~60℃ |
|
||
|
3.12 Storage Temperature |
less tha |
|||

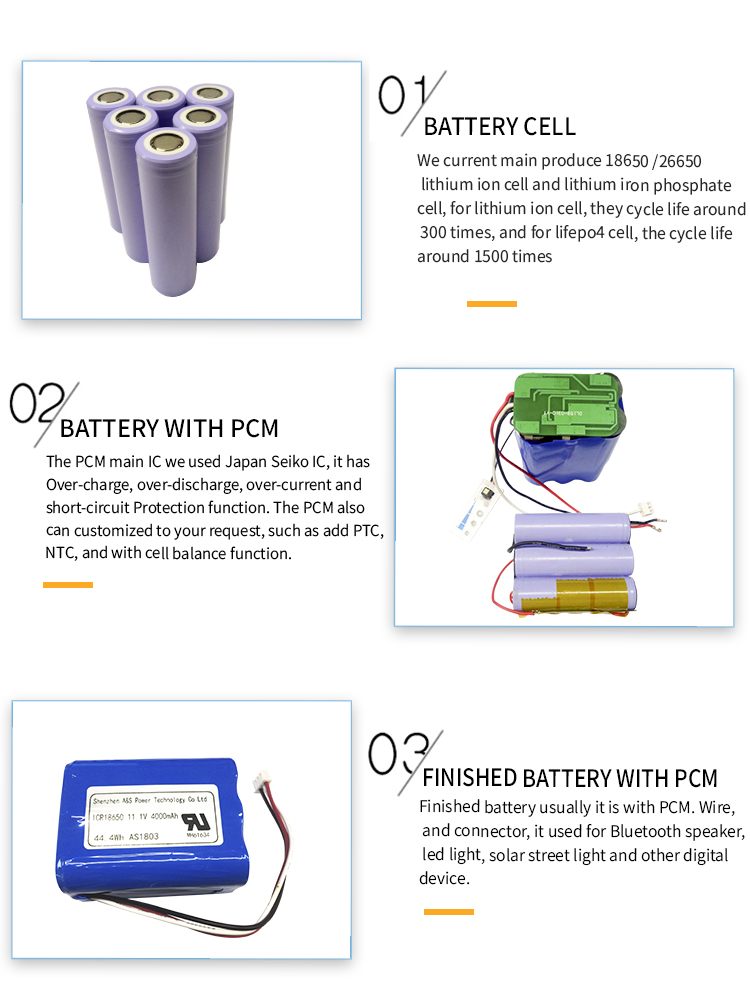

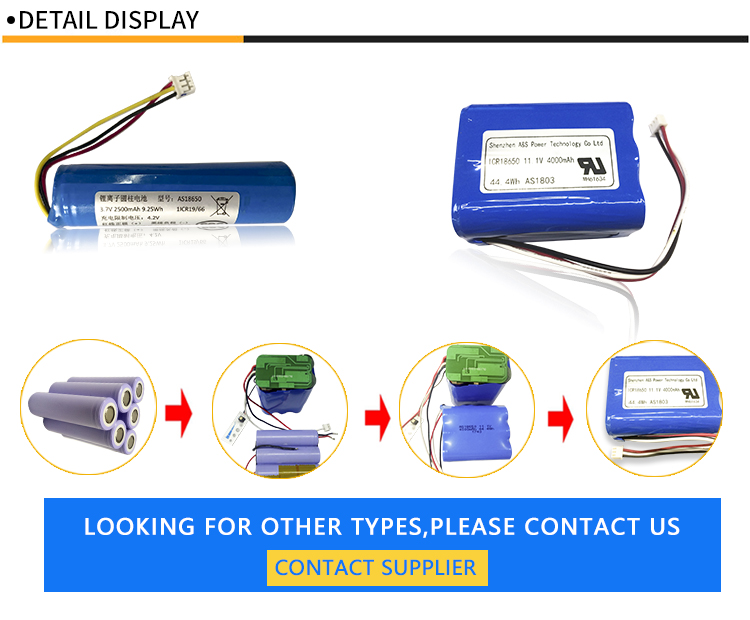

Product Photo
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.

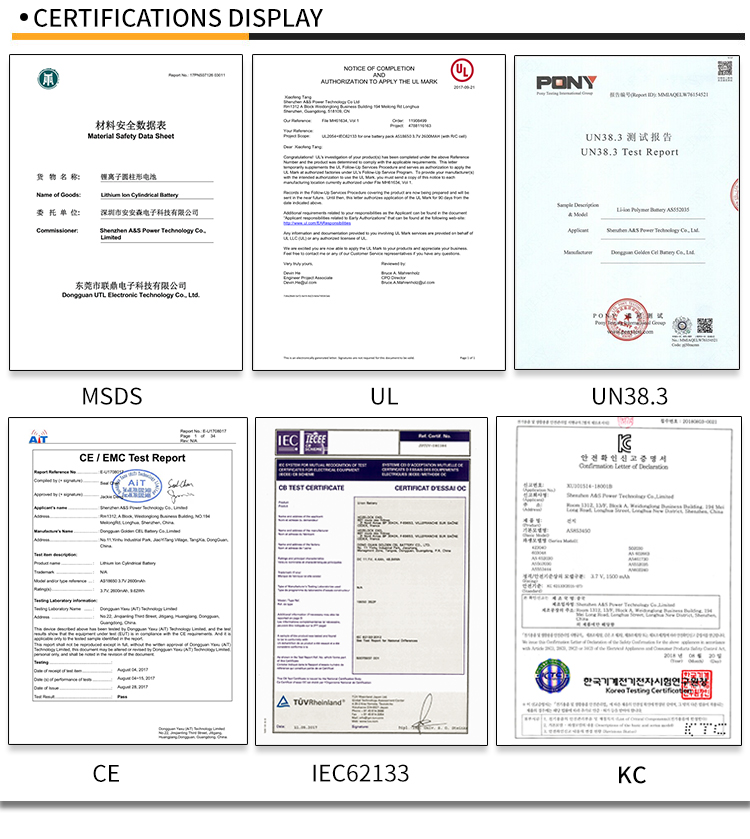

A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely
Lithium Ion Battery Cell Models:
| Model | Nominal voltage(V) | Capacity (mAh) | Max charge voltage(V) | Cut-off discharge voltage(V) | Max continuous discharge currnt(C) | Diameter φ ( mm) | Height ( mm) | Weight (approx)(g) |
| AS-18650 | 3.7 | 2000 | 4.25 | 2.75 | 3C | 18 | 65 | 43.5 |
| AS-18650 | 3.7 | 2200 | 4.25 | 2.75 | 3C | 18 | 65 | 45 |
| AS-18650 | 3.7 | 2500 | 4.25 | 2.75 | 3C | 18 | 65 | 45.5 |
| AS-18650 | 3.7 | 2600 | 4.25 | 2.75 | 3C | 18 | 65 | 46 |
| AS-18650 | 3.6 | 3200 | 4.25 | 2.5 | 2C | 18 | 65 | 45.5 |
| AS-18650 | 3.6 | 3350 | 4.25 | 2.5 | 1C | 18 | 65 | 46 |
| AS-21700 | 3.6 | 4000 | 4.25 | 2.5 | 5C | 21 | 70 | 68.5 |
| AS-21700 | 3.6 | 4500 | 4.25 | 2.5 | 3C | 21 | 70 | 69 |
| AS-21700 | 3.6 | 4800 | 4.25 | 2.5 | 1C | 21 | 70 | 70 |
| AS-21700 | 3.6 | 5000 | 4.25 | 2.5 | 1C | 21 | 70 | 70 |
A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:
| Model | Nominal voltage(V) | Capacity (mAh) | Max charge voltage(V) | Cut-off discharge voltage(V) | Max continuous discharge currnt(C) | Weight (approx)(g) | Certification |
| AS-18650-2600-11 | 3.7 | 2600 | 4.2 | 3 | 1C | 49 | UL2054,IEC62133(CB),CE,KC,UN38.3 |
| AS-18650-2000-21 | 7.4 | 2000 | 8.4 | 6 | 1C | 89 | UL2054,IEC62133(CB),UN38.3 |
| AS-18650-2600-21 | 7.4 | 2600 | 8.4 | 6 | 1C | 90 | IEC62133(CB),UN38.3 |
| AS-18650-3350-21 | 7.4 | 3350 | 8.4 | 5 | 1C | 92 | IEC62133(CB) |
| AS-18650-2000-32 | 11.1 | 4000 | 12.6 | 9 | 0.5C | 265 | UL2054,UN38.3 |
| AS-18650-2600-41 | 14.8 | 2600 | 16.8 | 12 | 1C | 185 | IEC62133(CB) |
| AS-18650-2500-52 | 18.5 | 5000 | 21 | 15 | 1C | 480 | IEC62133(CB),UN38.3 |
| AS-18650-2000-62 | 22.2 | 4000 | 25.2 | 18 | 2C | 530 | IEC62133(CB),UN38.3 |
| AS-21700-5000-14 | 3.7 | 20000 | 4.2 | 2.5 | 0.25 | 300 | UN38.3 |
| AS-21700-4800-12 | 3.7 | 9600 | 4.2 | 2.5 | 0.2 | 150 | UN38.3 |
| AS-21700-4800-73 | 25.9 | 15000 | 29.4 | 17.5 | 0.5 | 1500 | CE |
| AS-21700-50E-22 | 7.4 | 10000 | 8.4 | 5 | 0.5 | 300 | IEC62133(CB),UN38.3 |
Q1: Can I have some samples for testing quality?
A1: Yes, you can buy some samples of any our products for testing quality and market.Q2: How should I pay?
A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place official order.
Q5: Are you factory?
A5: yes,we are factory.
WARNING : To reduce the risk of fire or burns
Do not attempt to open, disassemble, or service the battery pack.
Do not crush, puncture, short external contacts of dispose of in fire or water above 60 ¡æ(140 ¨H)
Replace only with the battery pack designated for this product
