A&S Power 18650 4S3P 14.8v 7200mah lithium ion battery packs factory for led light
prevnext

A&S Power 18650 4S3P 14.8v 7200mah lithium ion battery packs factory for led light

  • Art No :AS18650 4S3P
  • Material:Li-ion battery
  • Size :25*67*224mm
  • Weight:550g
  • Description :

    1. Voltage: 14.8v

    2. Capacity: 7200mah

    3. Dimension with PCM: 25*67*224mm

    4. Application: for led light


    5. The Shortest Sample Time:7 days

    6. Order confirmation to delivery:30 days


A&S Power 18650 4S3P 14.8v 7200mah lithium ion battery packs factory for led light

Product details


Specification:

A&S Power 18650 4S3P 14.8v 7200mah lithium ion battery packs factory for led light


Product Description—Li-ion Battery


Item


Rating

Note

3.1    Capacity

Typical


7200mAh

Discharge:0.2CmA

Minimum


7150mAh

3.2    Nominal Voltage


Average  14.8V

Discharge:0.2CmA

3.3    AC Impedance Resistance


≤300mΩ



3.4    Discharge Cut-off Voltage


12.00V



3.5    Charge Current


1368mA

Standard Charge

3.6    Charge Voltage


16.8V



3.7    Charge Time


Approx 6h

Charge: 0.2CmA

3.8    Max. Charge Current


7200mA

1.0CmA

  3.9    Max Continuous Discharge Current


7200mA

1.0CmA

3.10   Weight


Approx 550g



3.11  Operating

Temperature

Charge


0~45



Discharge


-20~60



3.12  Storage

      Temperature

less than 1 month


-20~60



Recommended storage

temperature: 20,at the

shipment state

less than 3 months


-20~45

less than 1 year


-20~25



Caution:

Do use the specialized accesory to recharge.
The input voltage of any appliance must be in the range of the output of the lithium ion battery ,otherwise it can do harm to the appliance.
To avoid the decending capacity,the lithium ion battery must not be put away over 1 year
Away from high temperature,and keep lithium ion battery in cool dry place.

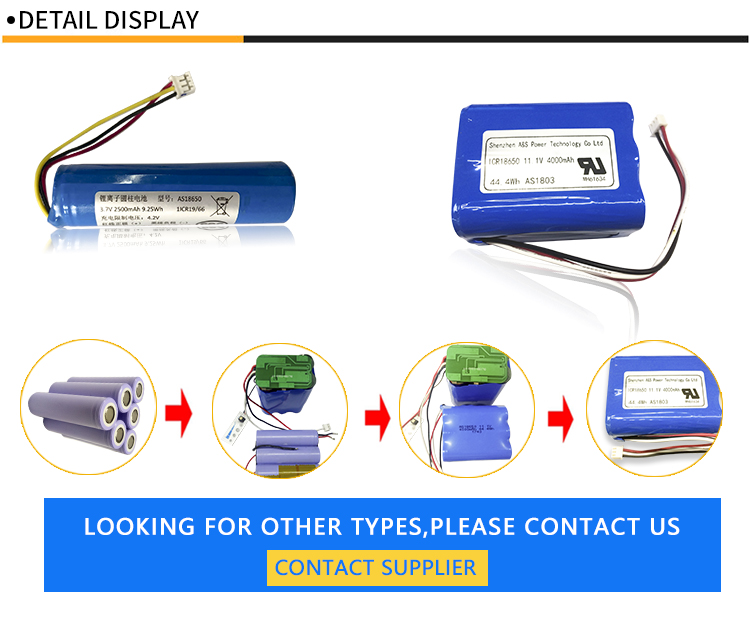

Product Photo

A&S Power 18650 4S3P 14.8v 7200mah lithium ion battery packs



A&S Power 18650 lithium ion battery packsA&S Power 18650 lithium ion battery packs


A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors.  We hope you find the one in our product list and suite you the best.  If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades.  We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production.  Our Customer Service can help for engineering suggestion to meet your specification.

A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely

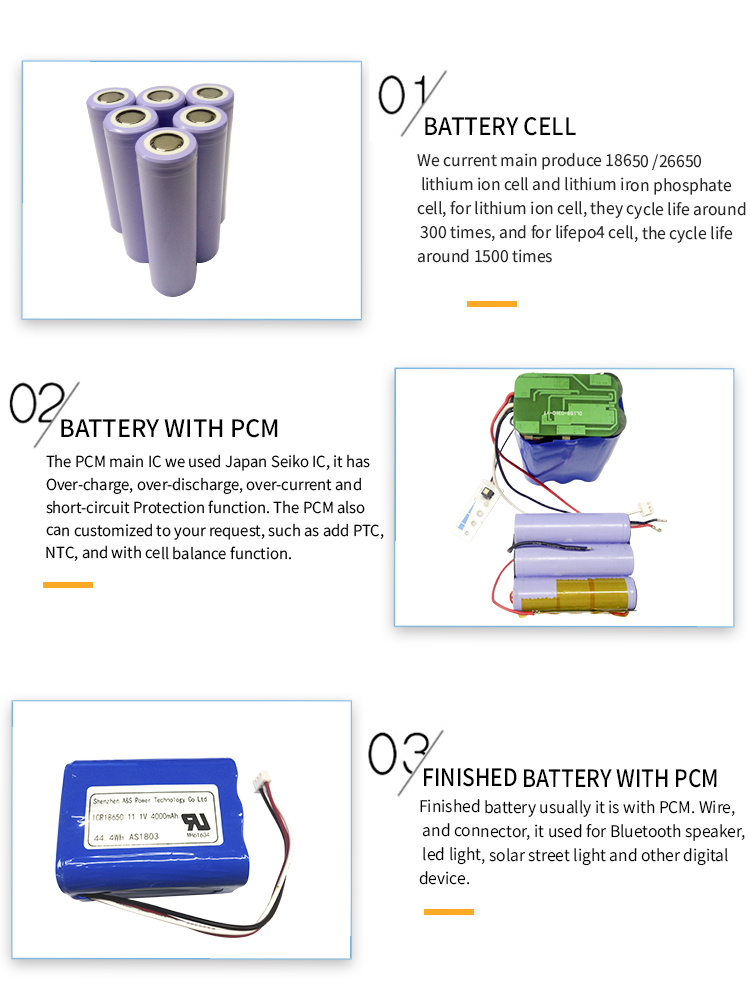

Lithium Ion Battery Cell Models:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C) Diameter
 φ ( mm)
Height
 ( mm)
Weight
(approx)(g)
AS-186503.720004.252.753C186543.5
AS-186503.722004.252.753C186545
AS-186503.725004.252.753C186545.5
AS-186503.726004.252.753C186546
AS-186503.632004.252.52C186545.5
AS-186503.633504.252.51C186546
AS-217003.640004.252.55C217068.5
AS-217003.645004.252.53C217069
AS-217003.648004.252.51C217070
AS-217003.650004.252.51C217070

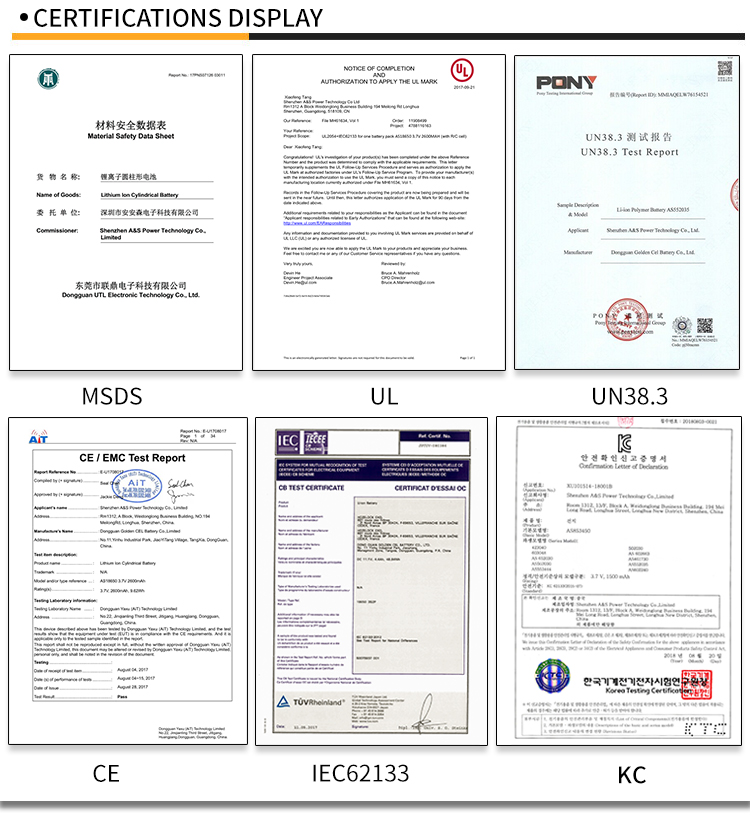

A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C)Weight
(approx)(g)
Certification
AS-18650-2600-113.726004.231C49UL2054,IEC62133(CB),CE,KC,UN38.3
AS-18650-2000-217.420008.461C89 UL2054,IEC62133(CB),UN38.3
AS-18650-2600-217.426008.461C90IEC62133(CB),UN38.3
AS-18650-3350-217.433508.451C92IEC62133(CB)
AS-18650-2000-3211.1400012.690.5C265UL2054,UN38.3
AS-18650-2600-4114.8260016.8121C185IEC62133(CB)
AS-18650-2500-5218.5500021151C480IEC62133(CB),UN38.3
AS-18650-2000-6222.2400025.2182C530IEC62133(CB),UN38.3
AS-21700-5000-143.7200004.22.50.25300UN38.3
AS-21700-4800-123.796004.22.50.2150UN38.3
AS-21700-4800-7325.91500029.417.50.51500CE
AS-21700-50E-227.4100008.450.5300IEC62133(CB),UN38.3




A&S Power Company ProfileA&S Power Lithium Battery factory producedA&S Power Lithium Battery fair photoA&S Power Certification


FAQ


 Q1: Can I have some samples for testing quality?

 A1:  Yes, you can buy some samples of any our products for testing quality and market.

Q2: How should I pay?
A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as  order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.

Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.

Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place official order.

Q5: Are you factory?
A5: yes,we are factory.
