Rechargeable Lithium Iron Phosphate Battery 12V 12.8V 120ah LiFePO4 LFP Battery for Solar Monitor
- Art No :12v-120ah
- Material:Lifepo4 battery
- Size :483*170 *240mm
- Weight:1.05kg, 13kg
- Description :
1.Rate:0.2c-2c
2.PCM:Customized
3.Cycle Life:>2000times
4.Application:Solar Energy Storage/Power Tools
Specification:
Rechargeable Lithium Iron Phosphate Battery 12V 12.8V 120ah LiFePO4 LFP Battery for Solar Monitor
Shenzhen A&S Power Technology Co., Ltd, is a Chinese OEM rechargeable battery manufacturer for more than 10 years. Specializes in lithium polymer batteries, lithium iron phosphate batteries and lithium ion batteries. Our products are widely used in popular electronic products, such as Bluetooth headsets, portable speakers, consumer products, emergency lights, GPS, digital players, solar and wind energy storage, electronic cars and E-bus. A&S Power battery ,good quality with full of ceritificates.
A&S Power - Your professional and reliable battery partner, specialized in Lithium polymer battery, LiFePO4 battery and Li-ion Battery.
Product Photo
Electrical Characteristics | Nominal Voltage | 12.8v |
Nominal Capacity | 120Ah @ 0.2C | |
Energy | 1536Wh | |
Internal resistance | ≤40mΩ | |
Cycle Life | >2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70% capacity | |
Months Self discharge | ≤3.5% per month at 25ºC | |
Standard Charge | Charge voltage | 14.6±0.2V |
Charge Mode( CC/CV) | At 0ºC~45ºC temperature, charged to 14.6v at constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6v until the current was not more than 0.02C5A | |
Charge current | 24A | |
Max.Charge current | 60A | |
Standard Discharge | Discharge current | 24A |
Max.continuous current | 100A | |
Max. Pulse current | 200A (<3S) | |
Discharge cut-off voltage | 10.0V | |
Environmental | Charge Temperature | 0ºC to 45 ºC |
Discharge Temperature | -20ºC to 60 ºC | |
Storage Temperature | 0ºC to 45 ºC | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | IFR32700, 4S20P |
Plastic Case | ABS | |
Dimension (L*W*H) | 483*170 *240mm | |
Weight | Approx. 16.2KG | |
Terminal | M8 |
Specification:
1.Model:ASIFR32700 4S20P
2.Voltage:12.8V
3.Capacity: 120Ah
4.Application: Solar Led light
5.Dimension: 483*170 *240mm
Widely Applications For Lithium Battery 12v LiFePO4 Battery
1.The proprietary lithium iron phosphate chemistry of this battery makes it less of a hassle to maintain and utilize the power you need.
2.Not only are they designed to store power with ease, but they also provide you with lasting peace of mind, and their tremendous
3.Durability makes it easy to use them at home, at work, or for your outdoor needs where trust, safety, and the environment matter most.
4.Widely used in caravan and camping, Backup Power, Electric Vehicles and golf cart, Floor Machines, Marine and boats, Recreational Vehicles, and Solar energy.
Features:
• Environment friendly: Lead-free
• Long life: 2000 times cycle life, life up to 10 years
• Light weight: only 30% of the weight of lead-acid battery
• High power: provide 2 times of lead-acid battery power output
• Flexibility: modular design, can realize 4 series, multiple parallel.
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 2000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
Main applications:
* Communication: back-up electric supply, interphone
* Eletric vehicles: electric bicycle (E-bike), golf cart , electric wheelchair, E-car and E-bus
* Power tools: electric cropper, electric drill, electric saw, electric hammer
* Illuminate devices: solar battery, miner lamp, solar power lamp, emergency light, electric torch.
* Portable office devices: Laptop, PDA, portable electrograph, portable printer
* Video devices: Portable DVD , portable television
* Others: R/C model, toy, small home appliance
Company introduction:
Shenzhen A&S Power Technology Co.,Ltd, a OEM rechargeable battery manufacturer in China over 10 years. Specialized inLithium polymer battery,
LiFePO4 battery and Li-ion Battery. Our products are widely used in popular electronic products, such as Bluetooth Headset, Portable Speakers,
consumer products, emergency light, GPS, digital player, solar & wind energy storage, electronic auto and E-bus
A&S Power has well presence in international fairs each year, such as CEBIT, HK Electronic Fair. We strictly implement
the international management standards and have established a complete quality assurance system. So it’s no wonder

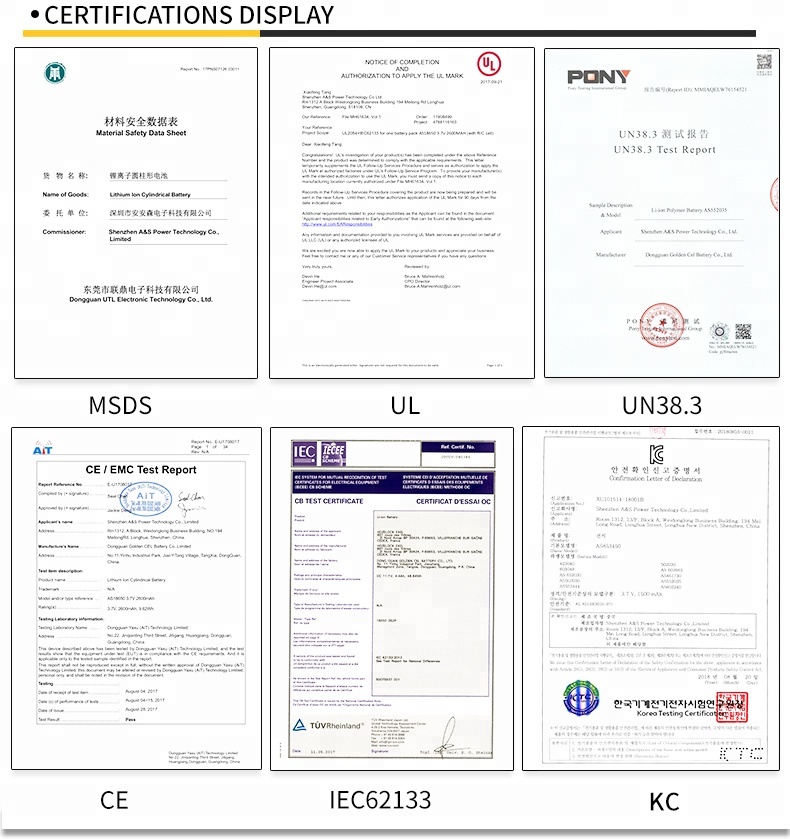

that our products got CE, UL, IEC62133, ROHS certification.
1. Q:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: Honestly, it depends on your order quantity and the season you place the order. We suggested that you start inquiry to months before the date you would like to get the products at your country.
4. Q: What is your terms of payment?
A: We accept T/T and L/C.
1. Best Quality and Best Service for any orders. No matter big or small orders.
2. Prompt delivery time and professional services.
3. We provide resolve methods for you.
4. Please contact and inform us what's the problem you met for quality issues.
One-Year-Warranty
We want you to be fully satisfied with every item that you purchase from A&S Power.
“Market and Technical support email within 24 hours”
