UL CB KC 702040 3.7V 500mah lithium polymer battery
prevnext

UL CB KC 702040 3.7V 500mah lithium polymer battery

  • Art No :AS702040
  • Material:lithium cobalt oxides
  • Size :7.0*20.*40mm
  • Weight:15g
  • Description :

    Model:AS702040

    Voltage:3.7V

    Capacity:500mah UL/CB/KC/UN38.3/MSDScertification get approval

UL CB KC 702040 3.7V 500mah lithium polymer battery

Product details


Specification:

UL CB KC 702040 3.7V 500mah lithium polymer battery


Product Description

Item

Rating

Note

3.1    Capacity

Typical

500mAh

Discharge:0.2CmA

cut off Voltage:3V for cell

Minimum

480mAh

3.2    Nominal Voltage

Average  3.7V

Discharge:0.2CmA

cut off Voltage:3V for cell

3.3    AC Impedance Resistance

360mΩ



3.4    Discharge Cut-off Voltage

3.0V



3.5    Charge Current

100mA

Standard Charge

3.6    Charge Voltage

4.2V



3.7    Max. Charge Voltage

4.23V



3.8   Storage humidity

< 75%RH

Hygrometer

3.9    Fast Charge current

500mA

1.0CmA

3.10   Fast Discharge Current

500mA

1.0CmA

3.11   Weight

Approx 15.5g



3.12   Shipping Voltage

>3.70V

60 ~80% of full charged

3.13  Operating

Temperature

Charge

0~+45



Discharge

-10~+50



3.14  Storage

      Temperature

less than 1 month

-10~+45

Recommended storage

temperature: 20,at the

shipment state

less than 3 months

-10~+35

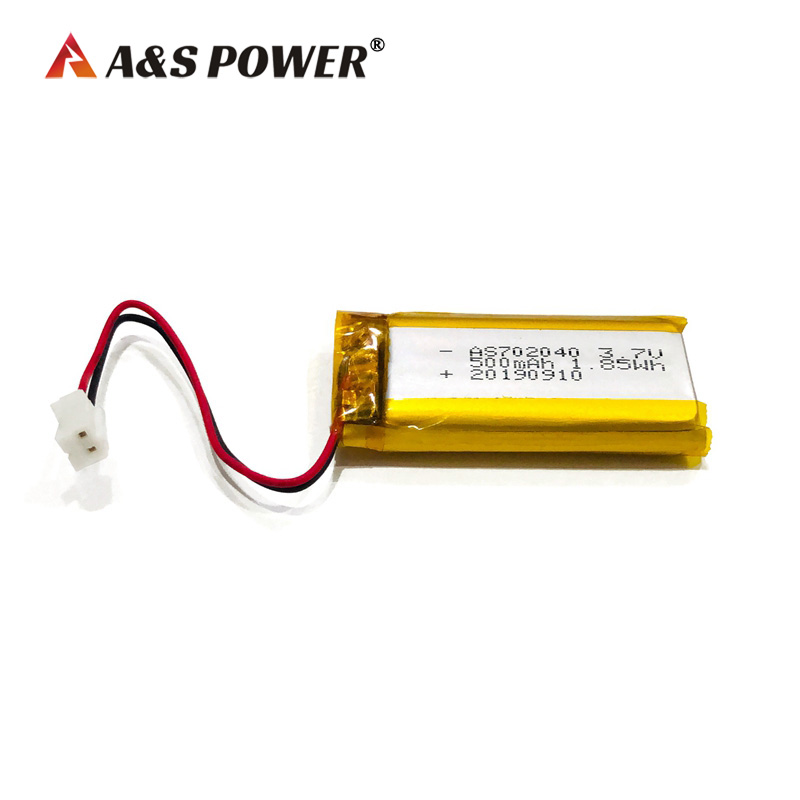

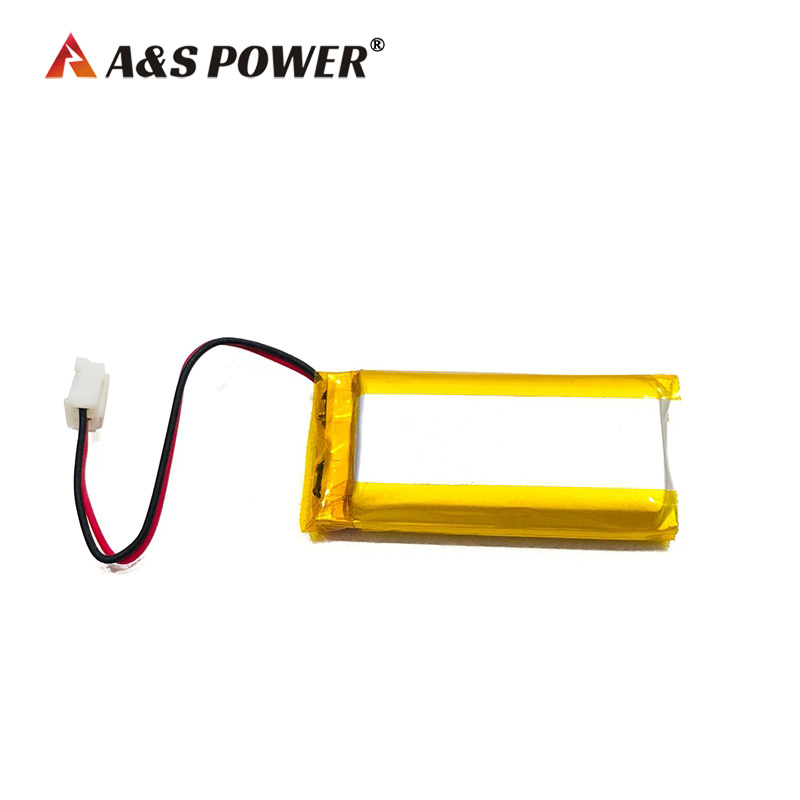

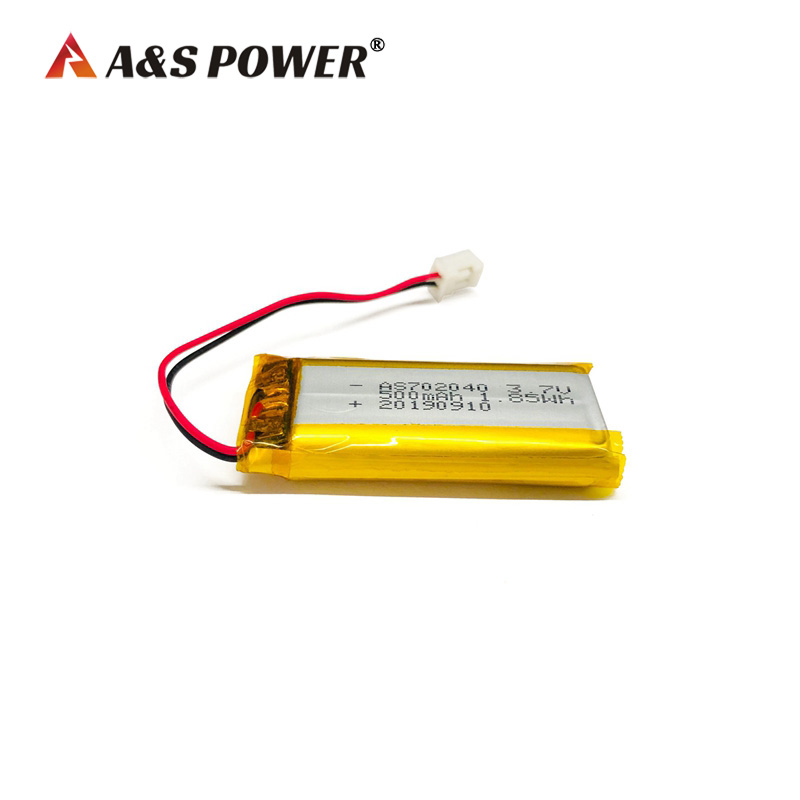

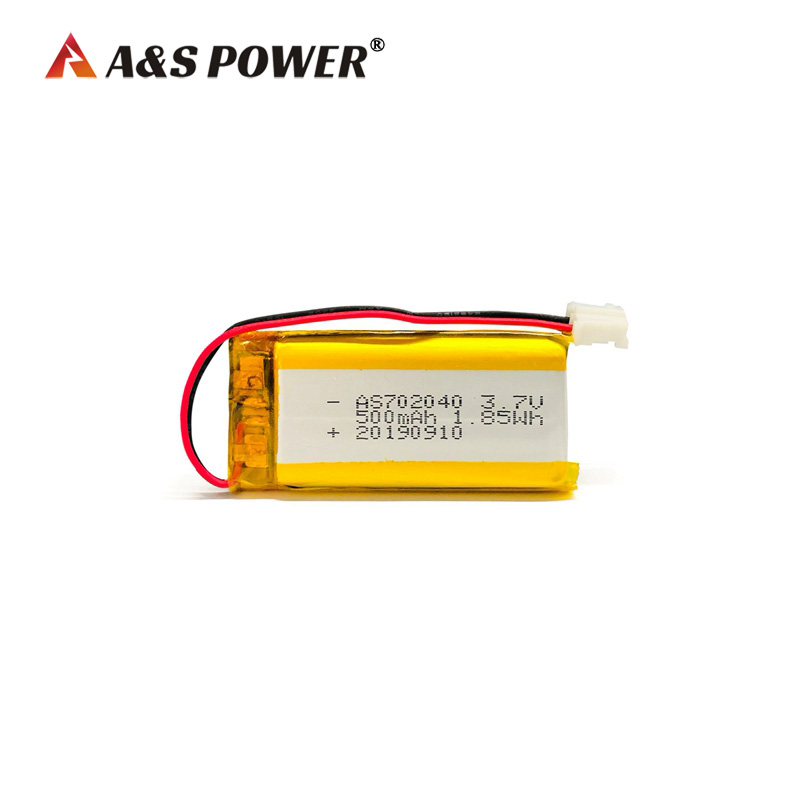

Product photos



A&S Power 702040 3.7V 500mah lithium polymer batteryA&S Power 702040 3.7V 500mah lithium polymer batteryA&S Power 702040 3.7V 500mah lithium polymer batteryA&S Power 702040 3.7V 500mah lithium polymer battery

A&S Power 3.7V lithium polymer batteryA&S Power 3.7V lithium polymer batteryA&S Power Company ProfileA&S Power Lithium Battery factory producedA&S Power Lithium Battery fair photoA&S Power Certification
