UL/KC/CB Certification approval 853450 3.7v 1500mah lipo battery
prevnext

UL/KC/CB Certification approval 853450 3.7v 1500mah lipo battery

  • Art No :AS853450
  • Material:lipo battery
  • Size :8.7*35*52.5mm
  • Weight:30g
  • Description :UL/KC/CB Certification approval 853450 3.7v 1500mah lipo battery

UL/KC/CB Certification approval 853450 3.7v 1500mah lipo battery

Product details


Specification:

UL/KC/CB Certification approval 853450 3.7v 1500mah lipo battery


Product Description


Item

Rating

Note

3.1    Capacity

Typical

1500mAh

Discharge:0.2CmA

cut off Voltage:3.0V for cell

Minimum

1450mAh

3.2    Nominal Voltage

Average  3.7V

Discharge:0.2CmA

cut off Voltage:3.0V for cell

3.3    AC Impedance Resistance

≤280mΩ



3.4    Discharge Cut-off Voltage

3.00V



3.5    Charge Current

300 mA

Standard Charge

3.6    Charge Voltage

4.2V



3.7    Max. Charge Voltage

4.23V



3.8     Storage humidity

< 75%RH

Hygrometer

3.9    Max. Charge Current

1450mA

1.0CmA

3.10   Max. Discharge Current

1450mA

1.0 CmA

3.11   Weight

Approx 28g



3.12  Operating

Temperature

Charge

0~+45°C



Discharge

-20~+60°C



3.13  Storage

      Temperature

less than 1 month

-20~+45°C

Recommended storage

temperature: 20°C,at the

shipment state

less than 3 months

-20~+35°C

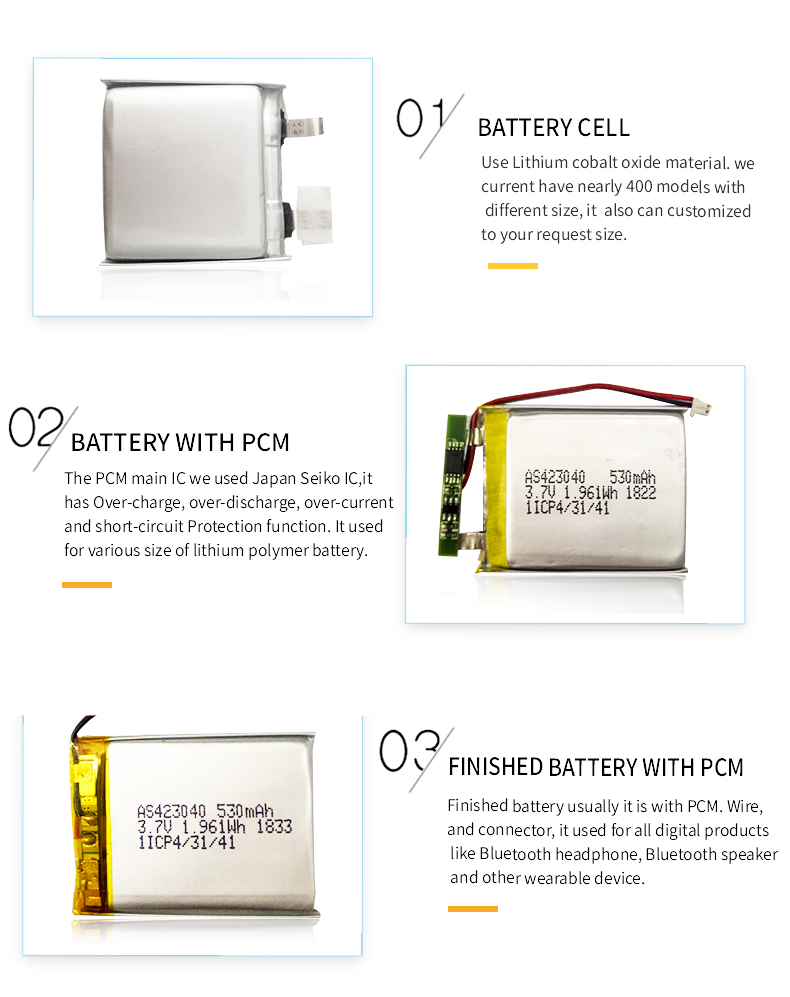

Product Pictures

A&S Power 853450 3.7v 1500mah lipo batteryA&S Power 853450 3.7v 1500mah lipo batteryA&S Power 853450 3.7v 1500mah lipo battery

A&S Power 3.7v lipo batteryA&S Power 3.7v lipo batteryA&S Power Company ProfileA&S Power Lithium Battery factory producedA&S Power Lithium Battery fair photoA&S Power Certification
