A&S Power UL2054 KC Certified 803035 3.7v 800mAh Lipo Battery Motion Monitor
- Art No :AS803030
- Material:Li-polymer
- Size :8.2*31*32.5mm
- Weight:15.8g
- Description :
1. Model: AS803035
2. Voltage: 3.7v
3. Capacity: 800mAh

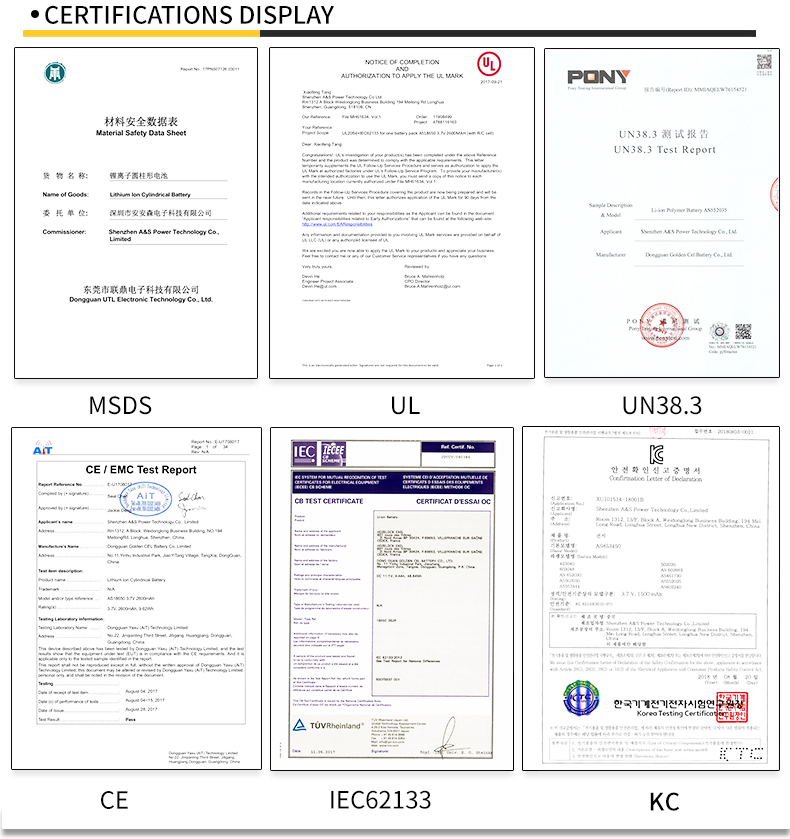

4. Certification: UL2054/KC/UN38.3
Specification:
A&S Power UL2054 KC Certified 803035 3.7v 800mAh Lipo Battery Motion Monitor
Specification:
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
800mAh |
Discharge:0.2CmA cut off Voltage:3V for cell |
|
|
Minimum |
800mAh |
|||
|
3.2 Nominal Voltage |
Average 3.7V |
Discharge:0.2CmA cut off Voltage:3V for cell |
||
|
3.3 AC Impedance Resistance |
≤165mΩ |
|
||
|
3.4 Discharge Cut-off Voltage |
3.00V |
|
||
|
3.5 Charge Current |
160mA |
Standard Charge |
||
|
3.6 Charge Voltage |
4.2V |
|
||
|
3.7 Max. Charge Voltage |
4.23V |
|
||
|
3.8 Storage humidity |
< 75%RH |
Hygrometer |
||
|
3.9 Fast Charge current |
800mA |
1.0CmA |
||
|
3.10 Fast Discharge Current |
800mA |
1.0CmA |
||
|
3.11 Weight |
Approx 15.8g |
|
||
|
3.12 Shipping Voltage |
>3.88V |
70 ~80% of full charged |
||
|
3.13 Operating Temperature |
Charge |
0~+45℃ |
|
|
|
Discharge |
-10~+50℃ |
|
||
|
3.14 Storage Temperature |
less than 1 month |
-10~+45℃ |
Recommended storage temperature: 20℃,at the shipment state |
|
|
less than 3 months |
-10~+35℃ |
|||

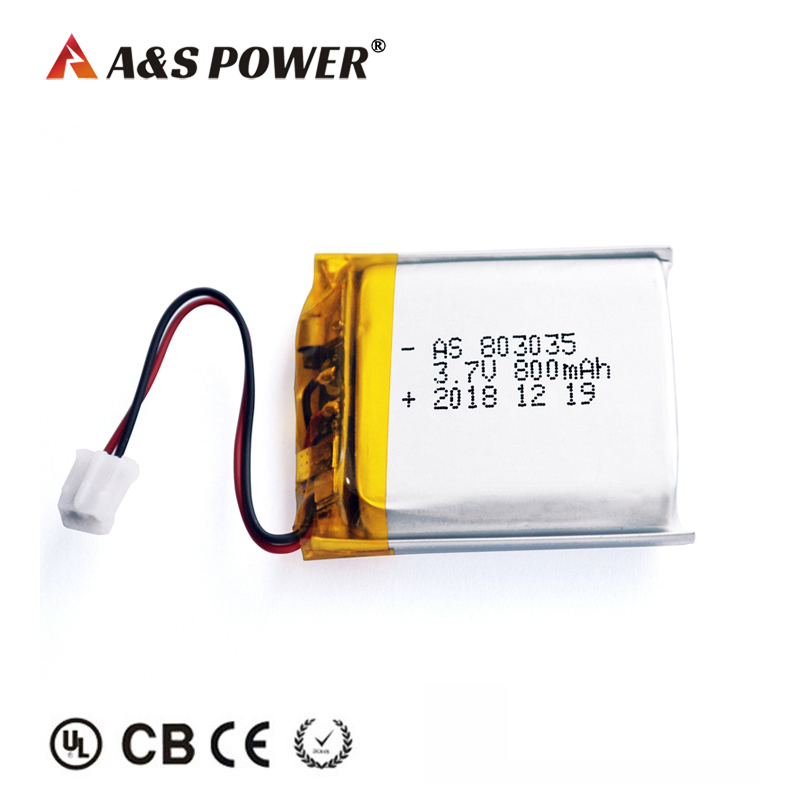

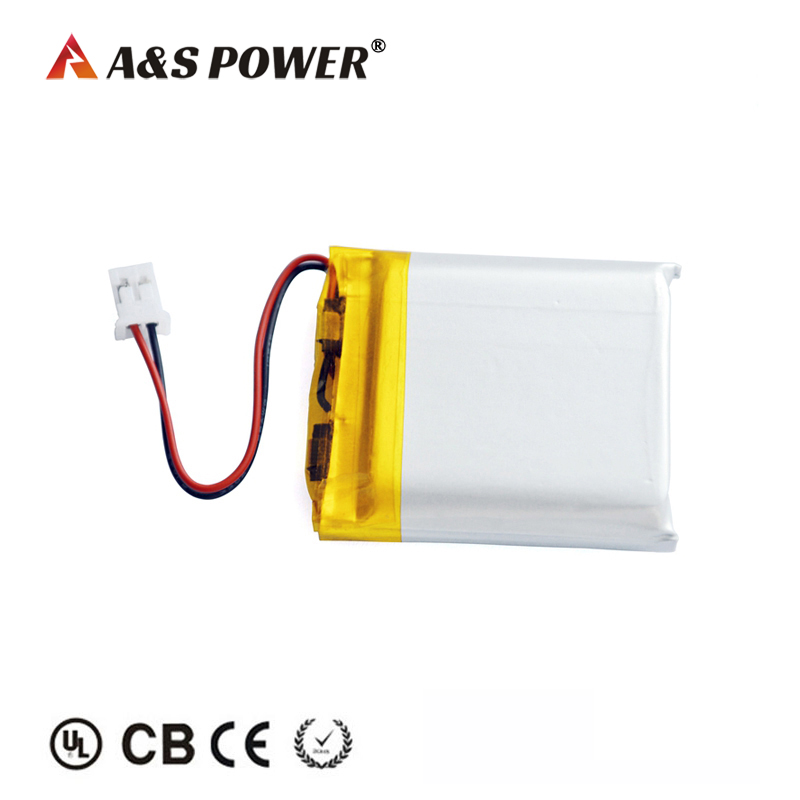

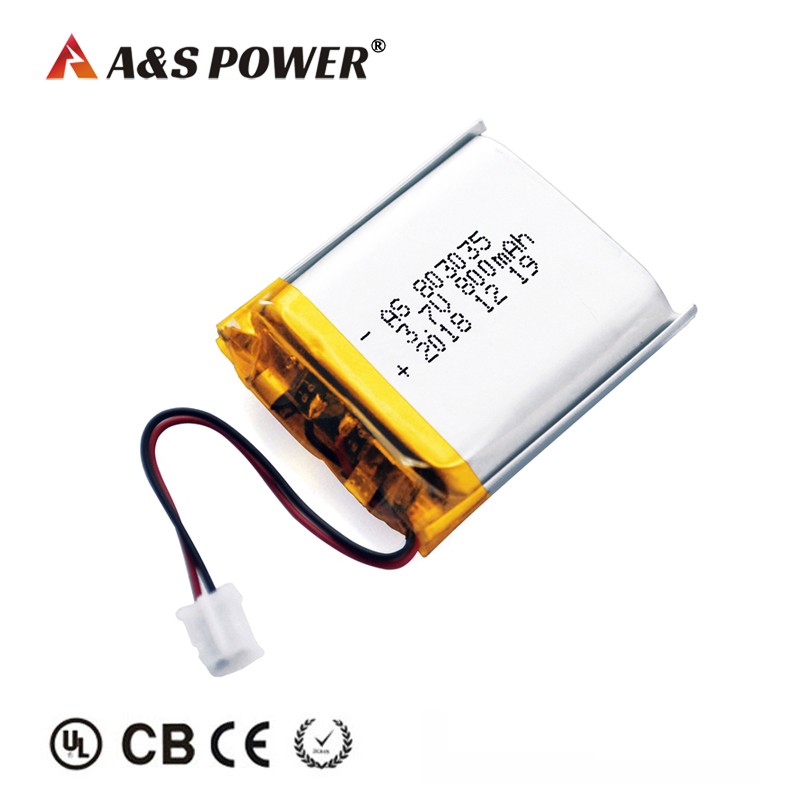

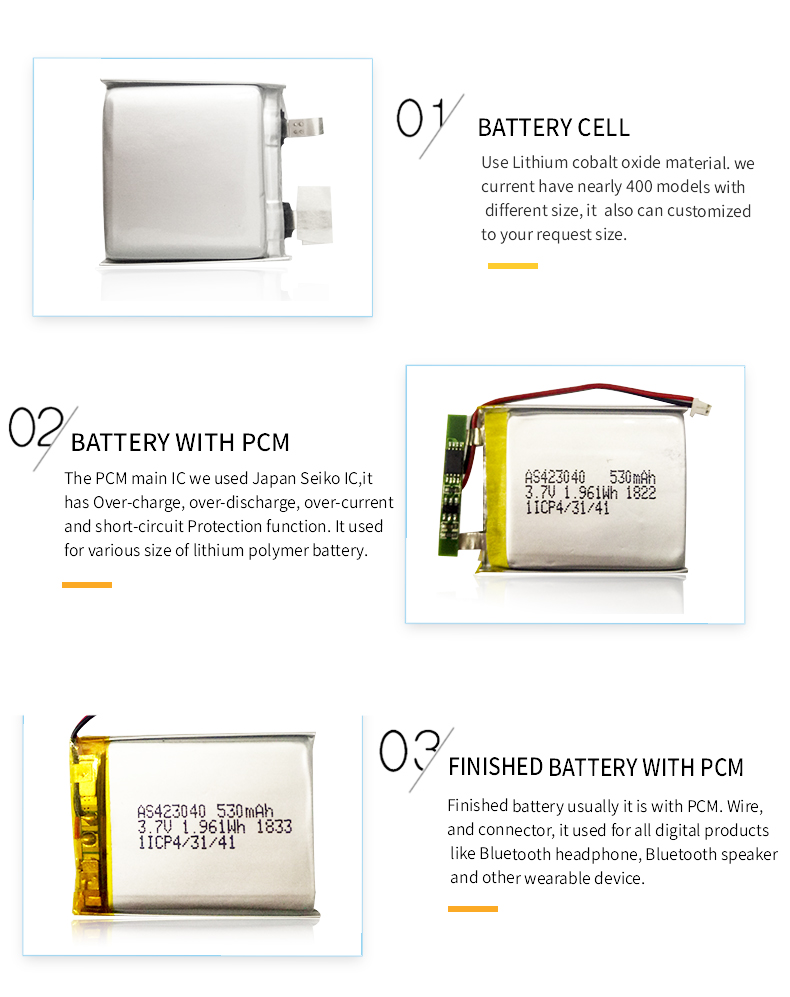

Product Photo
A&S Power UL2054 KC certified 803035 3.7v 800mah lipo battery Motion monitor：
Q1: Can I have some samples for testing quality?
A1: Yes, you can buy some samples of any our products for testing quality and market.Q2: How should I pay?
A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place official order.
Q5: Are you factory?
A5: yes,we are factory.
