Ternary Lithium Battery vs Lithium-ion: Complete Comparison Guide (2025 Edition)

Lithium-based batteries have become the global standard for powering modern medical equipment, drones, portable electronics, wearable devices, industrial instruments, robotics, mobility products, and electric vehicles. However, the terminology used within the lithium battery industry often causes confusion for engineers, procurement managers, R&D designers, and decision-makers.

One of the most common sources of misunderstanding is the term “ternary lithium battery” and how it relates to the broader category of lithium-ion batteries. Many assume these two represent separate battery categories, but the truth is more nuanced:

• A ternary lithium battery IS a type of lithium-ion battery.
• Not all lithium-ion batteries are ternary.

Understanding Lithium-Ion Battery Categories

Lithium-ion batteries include several major cathode chemistries:

• NCM (Lithium Nickel Cobalt Manganese Oxide) → “Ternary lithium battery”
• NCA (Lithium Nickel Cobalt Aluminum Oxide) → “Ternary lithium battery”
• LFP (Lithium Iron Phosphate)
• LCO (Lithium Cobalt Oxide)
• LMO (Lithium Manganese Oxide)
• LTO (Lithium Titanate) → anode variant, very long-life

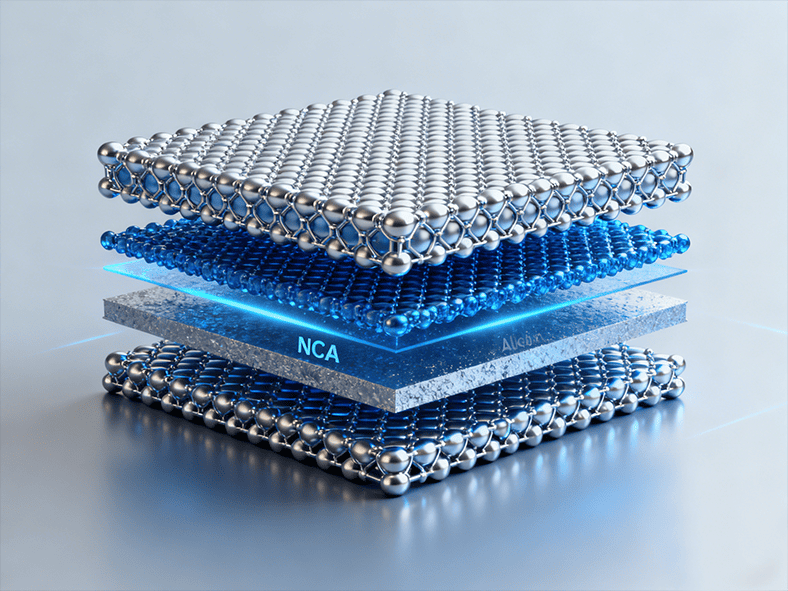

Ternary lithium refers specifically to lithium-ion chemistries that incorporate three key metals—nickel, cobalt, manganese (NCM) or nickel, cobalt, aluminum (NCA). This categorization will guide the comparisons that follow.

Why Engineers Compare Ternary Lithium and Lithium-Ion Batteries

Although ternary lithium batteries belong to the lithium-ion family, they are typically compared against the most widely used alternative—LFP (Lithium Iron Phosphate)—due to differences in:

• Safety
• Cycle life
• Energy density
• Chemical stability
• Cost
• Discharge rate
• Temperature performance

This article provides a detailed head-to-head analysis across all engineering parameters, supported by statistical data, and real-world application insights from A&S Power.

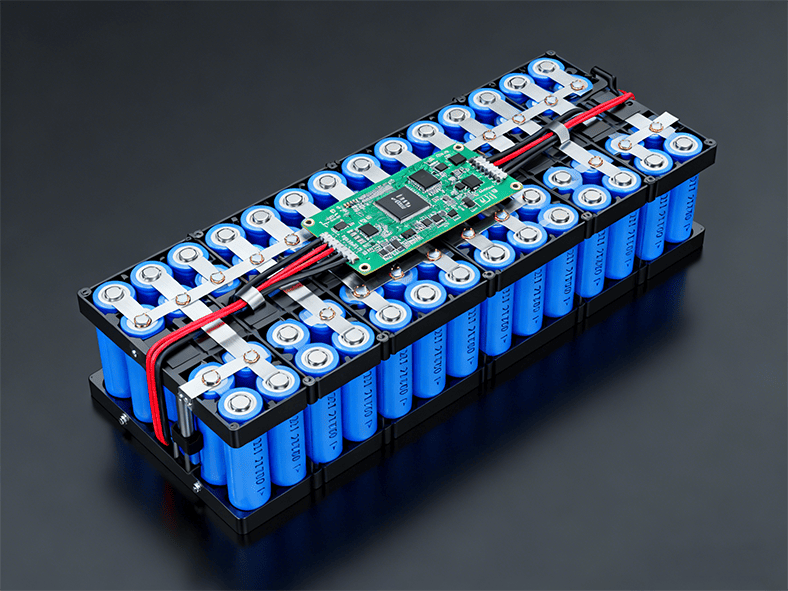

Technical Overview of Ternary Lithium Batteries

Ternary lithium batteries are known for three defining characteristics:

1. High Nickel Content
   Nickel increases energy density, discharge capability, and storage capacity. NCM 811 and NCA chemistries contain extremely high nickel percentages (up to 80%).
2. Balanced Cobalt and Manganese (or Aluminum)
   Cobalt improves structural stability and conductivity. Manganese/Aluminum enhances thermal stability and safety.
3. Highest Energy Density Among Mainstream Chemistries
   This is why ternary lithium dominates drones, high-power industrial tools, EVs, robotics, aviation-grade battery packs, and high-demand consumer electronics.

Technical Overview of Other Lithium-Ion Chemistries

Lithium Iron Phosphate (LFP)

Well-known for exceptional safety, long cycle life, thermal stability, cost-effectiveness. Ideal for medical equipment, industrial devices, energy storage, mobility products.

Lithium Cobalt Oxide (LCO)

Traditionally used in smartphones, tablets, cameras.

Lithium Manganese Oxide (LMO)

Known for good power output, acceptable safety, cost efficiency.

Lithium Titanate (LTO)

Famous for ultra-long cycle life, extremely safe structure, fast charging. Used in transportation systems and solar storage where durability matters.


Data Comparison — Ternary Lithium vs Other Lithium-Ion Chemistries

Real-World Applications

1. Medical Devices

Portable infusion pumps, hospital-grade breast pumps, diagnostic devices. Ternary lithium packs excel in high-energy-density, lightweight devices. LFP packs dominate safety-critical, long-cycle devices.

2. Industrial Equipment

Wireless scanners, robotic arms, portable power tools. Ternary lithium enables high-power peak performance; LFP ensures safer long-term operation.

3. Electric Vehicles (EVs)

Global EV market share (2024, CATL, BloombergNEF): LFP 52%, NCM/NCA 45%, Others 3%. Ternary lithium allows longer range; LFP preferred for low-cost, high-volume EVs.

4. Consumer Electronics

Smartphones, laptops, tablets, wearables. High energy density supports compact, lightweight form factors.

FAQs

• What is a ternary lithium battery?
• Uses three metals (Ni, Co, Mn or Al) for high energy density and strong discharge.

• Is a ternary lithium battery the same as lithium-ion?
• No. It is a subtype; all ternary are lithium-ion, not all lithium-ion are ternary.

• Which is safer, LFP or ternary?
• LFP due to higher thermal stability.

• Which has longer cycle life?
• LFP lasts 2–3× longer.

• Which performs better in cold?
• Ternary lithium.

• Best for high-power applications?
• Ternary (NCM/NCA).

Why Trust A&S Power

• 15+ years global lithium battery experience
• UL/CB/KC/PSE/UN38.3 certified packs
• NCM, NCA, LFP, LCO, LiPo solutions
• Engineering support, CAD, test reports
• OEM/ODM custom battery packs

Reference:

• Custom Li-ion Battery Packs
• Lithium Polymer Battery Solutions
• Medical Device Battery Solutions
• LFP Battery Packs
• Battery University
• DOE Energy Storage
• IEC Standards
• UL Standards

Conclusion

The comparison between ternary lithium (NCM/NCA) and other lithium-ion chemistries demonstrates that no single battery type is perfect for all applications.

• Ternary lithium → Best for energy-dense, lightweight, high-discharge devices (drones, robotics, portable medical equipment, EVs).

• LFP → Best for safety-critical, long-life, cost-sensitive, large-scale applications (industrial devices, hospital equipment, backup systems).

• LTO → Best for extreme longevity, fast charging, and demanding storage applications.

• LCO and LMO → Specialized use-cases for legacy consumer electronics or moderate cost solutions.

By integrating A&S Power’s 15+ years of engineering experience, OEM and product designers can make informed decisions about battery selection, ensuring optimal performance, safety, longevity, and sustainability.
