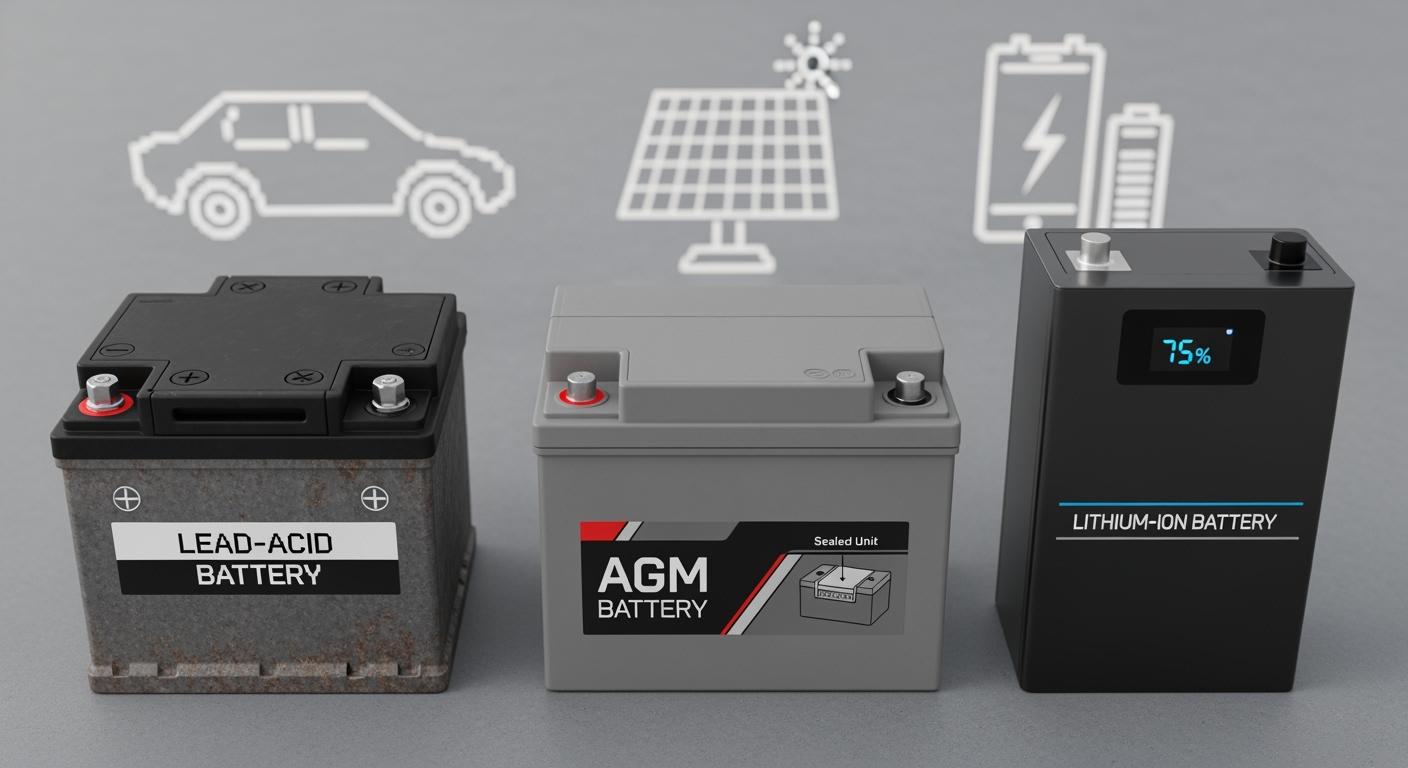

Understanding the Differences Between 12V STD, AGM, and Lithium Batteries

You face a wide range of choices when selecting a battery for your application. Standard 12V batteries use liquid electrolyte, require regular maintenance, and offer lower upfront costs. AGM batteries feature a sealed design, need less maintenance, and deliver improved performance. Lithium batteries provide lightweight construction, long life, and rapid charging, but cost more. Below is a quick 12V battery comparison of average prices:

Consider your budget, reliability requirements, and compatibility before making your choice.

Key Takeaways

• Choose the right battery type based on your needs. Standard lead-acid batteries are cost-effective but require regular maintenance. AGM batteries offer better performance with less upkeep, while lithium batteries provide the best longevity and efficiency.

• Consider the maintenance requirements of each battery type. Standard batteries need frequent checks and water top-ups, AGM batteries are maintenance-free, and lithium batteries require minimal attention due to built-in management systems.

• Evaluate the total cost of ownership. While standard batteries have the lowest upfront cost, AGM and lithium batteries may save you money in the long run due to their longer lifespan and reduced maintenance needs.

• Match your battery choice to your application. AGM batteries are ideal for solar power and backup systems, lithium batteries excel in high-demand mobile applications, and standard batteries suit basic automotive needs.

• Always check compatibility with your charging system before upgrading. Lithium batteries require specific chargers, and using the wrong type can damage the battery or reduce its lifespan.

12v std overview

Structure and identification

You will find that a 12v std battery, often called a standard lead-acid battery, uses a classic design. This battery contains six individual cells, each producing about 2 volts, connected in series to deliver a total of 12 volts. The chemical composition includes lead dioxide plates for the positive side, sponge lead plates for the negative side, and a liquid sulfuric acid electrolyte. You must check water levels regularly and clean the terminals to keep the battery working reliably. The open design means you need to handle the battery carefully to avoid spills.

You can identify a 12v std battery by its removable caps for topping up electrolyte and its heavier weight compared to agm or lithium batteries. The labels often mention "lead-acid" or "deep cycle battery," which helps you distinguish it from other types.

How 12 std battery works

A 12v std battery stores chemical energy and converts it into electrical energy at a nominal voltage of 12 volts. The battery consists of six cells connected in series, each generating around 2.1 volts. When you connect a load, the internal chemical reaction generates electrons, creating a flow of direct current (DC) at a steady 12-volt output. Charging reverses the chemical reaction, allowing the battery to store energy for later use. This process makes the standard lead-acid battery suitable for many applications, including automotive, marine, and backup power.

• The battery stores chemical energy and releases it as electrical energy.

• Each cell contributes to the total voltage.

• Charging reverses the chemical reaction, restoring energy.

• The battery provides a reliable DC output for your devices.

Pros and cons

You will notice several advantages and disadvantages when using a 12v std battery. The mature technology and low cost make it a popular choice. You can rely on its high reliability and wide availability. However, the battery is heavy and has a lower energy density compared to agm or lithium options. The open design can lead to harmful chemical leakage if not maintained properly, and the lifespan is shorter than other battery types.

Tip: If you need a deep cycle battery for regular discharge and recharge, a 12v std battery offers a cost-effective solution. You must perform regular maintenance to ensure long-term performance. For applications where weight and maintenance are concerns, you may want to consider agm or lithium batteries.

12v agm explained

Structure and identification

You will notice that 12v agm batteries use a unique internal design compared to traditional lead acid batteries. Instead of a liquid electrolyte, these batteries use an Absorbed Glass Mat (AGM) separator. The glass mat absorbs the electrolyte, making the battery spill-proof and maintenance-free. You do not need to check water levels or top up fluids, which makes handling much easier.

You can identify a 12v agm battery by its sealed casing and the absence of removable caps. Manufacturers often label these batteries as "AGM" or "VRLA" (Valve Regulated Lead Acid). The design also makes the battery lighter and more robust than standard lead-acid types.

How 12 agm battery works

A 12v agm battery stores energy using lead plates and an absorbed electrolyte. The AGM separator keeps the electrolyte in close contact with the plates, which allows for efficient energy transfer. When you use a deep cycle battery like this, you get high output current and stable voltage. The sealed design prevents leaks and reduces the risk of internal short circuits.

You can use agm batteries in a wide range of applications, including vehicles, solar systems, and backup power. The battery delivers reliable performance even in cold weather. The technology supports deep discharge cycles, so you can use the battery for longer periods without damaging it.

Note: The sealed structure of a 12v agm battery means you do not need to worry about harmful gas emissions or regular maintenance. This makes it a safe and convenient choice for many users.

Pros and cons

You will find several advantages when you choose a 12v agm deep cycle battery. The maintenance-free operation saves you time and effort. The battery resists vibration and shock, which makes it suitable for mobile and off-grid uses. You get high power output and excellent deep cycling performance. The battery also lasts longer than most standard lead acid batteries.

However, you should consider the higher initial cost. AGM batteries are sensitive to overcharging, so you must use a compatible charger. The battery may not suit every budget, but the long lifespan and reliability often justify the investment.

Tip: If you want a battery that offers reliable deep cycle performance with minimal maintenance, a 12v agm battery is an excellent choice. Always use the correct charger to protect your investment.

Lithium batteries basics

Structure and identification

You will find that lithium batteries use advanced materials and construction methods to deliver reliable power for a wide range of applications. Manufacturers design these batteries with different cell shapes, which you can identify by inspecting the casing and labels. The most common cell types include cylindrical, prismatic, and pouch-shaped cells. Each type offers unique benefits for energy storage and durability.

• Cell Types:

  • Cylindrical cells provide robust structure and consistent performance.

  • Prismatic cells offer compact design for space-saving installations.

  • Pouch-shaped cells deliver lightweight construction and flexibility.

• Key Materials:

  • Anode materials vary, which influences the battery’s efficiency and lifespan.

  • Cathode materials include Lithium Cobalt Oxide (LCO), Lithium Nickel Magnesium Cobalt Oxide (NMC), and Lithium Iron Phosphate (LiFePO4).

• Electrolyte:

  • The electrolyte acts as a medium for electron flow between the anode and cathode, supporting stable operation.

You can identify a lithium deep cycle battery by its lightweight design, sealed casing, and clear labelling. Most lithium batteries display voltage and capacity ratings, making it easy for you to select the right battery for your needs.

How lithium battery works

Lithium batteries store energy using chemical reactions between the anode and cathode. When you connect a load, the battery releases electrons, providing a steady flow of direct current. The deep cycle battery design allows you to discharge and recharge the battery many times without significant loss of capacity. You benefit from rapid charging and consistent voltage output, which supports sensitive electronics and demanding applications.

Tip: You should always use a charger designed for lithium batteries to maximise lifespan and safety. Incorrect charging can reduce performance or cause damage.

Pros and cons

You will notice that lithium batteries offer several advantages over traditional battery types. The deep cycle battery technology provides higher energy density, longer lifespan, and faster charging times. You also gain environmental benefits due to reduced toxic materials and improved recyclability. However, you must consider the higher initial cost and potential safety concerns, such as thermal runaway. Recycling lithium batteries can present challenges, so you should follow local guidelines for disposal.

Note: If you require a lightweight, long-lasting deep cycle battery for solar, marine, or backup power, lithium batteries deliver outstanding performance. You should weigh the upfront investment against the long-term benefits.

You can contact our team for more information about lithium battery options and compatibility. Academic studies, such as those published in the Journal of Power Sources, highlight the efficiency and reliability of lithium batteries in modern energy systems.

12v battery comparison

Design and structure

You encounter significant differences in design and structure when you compare 12v std, 12v agm, and lithium batteries. The 12v std battery uses a liquid electrolyte and lead plates, which require a vented casing. This design makes the battery heavier and more prone to leaks. The 12v agm battery features an absorbed glass mat separator, which immobilises the electrolyte and allows for a sealed, spill-proof casing. You benefit from a more compact structure and improved vibration resistance. Lithium batteries use advanced cell designs, such as prismatic or cylindrical cells, and integrate a Battery Management System (BMS) for safety. The casing is lightweight and fully sealed, which enables flexible installation and reduces the risk of leaks.

You notice that battery capacity varies by type. Lithium batteries offer the highest battery capacity for their size, while 12v agm batteries provide a good balance between size and output. The 12v std battery delivers moderate capacity but requires more space and weight for the same output.

Maintenance and cost

Maintenance requirements play a crucial role in your decision. The 12v std battery needs regular checks, including topping up electrolyte levels and cleaning terminals. You must also ensure proper charging to avoid sulphation and capacity loss. The 12v agm battery reduces maintenance, as the sealed design eliminates the need for water top-ups. You still need to monitor charging and inspect terminals, but the process is simpler. Lithium batteries stand out for their nearly maintenance-free operation. The built-in BMS monitors charging, temperature, and cell balance, which protects battery capacity and extends lifespan.

• SLA and lead acid batteries require frequent maintenance, such as checking terminals and venting gases.

• AGM batteries share similar maintenance needs but eliminate electrolyte top-ups.

• Lithium batteries need minimal attention due to their advanced management systems.

Cost varies significantly. The 12v std battery offers the lowest upfront cost, making it attractive for budget-conscious users. The 12v agm battery costs more initially but saves you time and effort on maintenance. Lithium batteries have the highest purchase price, but you benefit from a longer lifespan and lower total cost of ownership over time. You spend less on replacements and maintenance, which offsets the initial investment.

Performance and durability

Battery performance and durability determine how well your battery meets your needs. The 12v std battery provides reliable performance for basic applications, but you experience faster degradation and shorter lifespan. The 12v agm battery delivers improved deep-cycle performance, supporting higher discharge rates and stable voltage. You can expect a cycle life of 4-7 years, which suits frequent use and demanding environments.

Lithium batteries excel in battery performance and durability. You achieve over 10 years of service life and up to 4,000 charge cycles. The battery maintains consistent capacity and voltage throughout its lifespan, which supports sensitive electronics and high-demand systems. You notice minimal performance degradation, even after repeated deep cycles.

• AGM and gel batteries last 4-7 years under typical conditions.

• Lithium batteries (LiFePO4) last over 10 years and support thousands of cycles.

• Deep cycle battery technology in lithium batteries ensures stable capacity and reliable performance.

You should consider battery capacity and deep-cycle battery features when evaluating battery comparison options. Lithium batteries provide the highest battery capacity and deep-cycle performance, while 12v agm batteries offer a solid balance for most users.

Safety and weight

Safety and weight influence your choice, especially for mobile or sensitive installations. The 12v std battery contains liquid acid, which poses risks of leaks and gas emissions. You must handle the battery carefully and install it upright. The 12v agm battery improves safety with a sealed design, reducing the risk of spills and allowing installation in any orientation. You benefit from lower gas emissions and better vibration resistance.

Lithium batteries set the standard for safety and weight. The omission of cobalt and the use of a BMS reduce the risk of thermal runaway. You enjoy a stable, recyclable battery with no acid content or gas emissions. The lightweight design makes lithium batteries ideal for portable and off-grid applications.

• Lithium batteries can be installed in any orientation.

• No gas emissions or acid leaks.

• Built-in BMS enhances safety and protects battery capacity.

Tip: If you need a lightweight battery with high battery capacity and reliable performance, lithium batteries provide the best solution. For stationary or backup use, 12v agm batteries offer a safe and robust alternative.

Feature-by-feature comparison table

Key differences and practical implications

You see that the 12v battery comparison highlights clear distinctions. The 12v std battery suits basic, low-cost applications but demands regular maintenance and careful handling. The 12v agm battery offers improved safety, higher battery capacity, and reduced maintenance, making it ideal for vehicles, solar, and backup systems. Lithium batteries deliver unmatched battery performance, deep-cycle battery durability, and safety, with minimal maintenance and the lowest weight.

You should match your choice to your application. If you value low upfront cost and accept maintenance, choose the 12v std battery. If you need reliable performance and moderate battery capacity, select the 12v agm battery. For maximum battery capacity, deep-cycle battery life, and safety, invest in lithium batteries.

Note: Academic studies and manufacturer data confirm that lithium batteries provide superior battery performance, durability, and safety. You can contact our team for tailored advice and further information about battery capacity and compatibility.

Choosing your battery

Application scenarios

You must consider your application before selecting a battery. Each type suits different environments and usage patterns. If you operate a solar power system or require reliable energy storage for your business, AGM batteries provide consistent performance and minimal maintenance. You can use lithium batteries for electric boats, where propulsion and onboard systems demand lightweight construction and high energy density. Marine batteries offer versatility for golf carts, recreational vehicles, and cars, although they may not deliver optimised performance in every scenario.

The following table summarises common application scenarios for each battery type:

You should match your deep cycle battery choice to your specific needs. For frequent cycling and long-term reliability, lithium batteries excel in demanding environments. AGM batteries suit stationary installations and backup power systems, where maintenance-free operation is essential. Standard lead-acid batteries remain popular for automotive starting and basic backup applications, but you must accept regular maintenance.

Tip: Identify your primary use case before making a decision. Deep cycle battery performance varies by scenario, so choose the technology that aligns with your operational demands.

Budget and reliability

Budget and reliability play a crucial role in your selection process. You must weigh initial costs against long-term value and ongoing maintenance. Lead-acid batteries offer a cost-effective solution for users who prioritise affordability. You will find these batteries heavier and less durable, with a shorter lifespan compared to other options. AGM batteries cost more upfront, but you gain maintenance-free operation and improved reliability. Lithium batteries require the highest initial investment, yet you benefit from superior performance, extended lifespan, and minimal upkeep.

The table below outlines expert recommendations for each battery type:
