Specification:

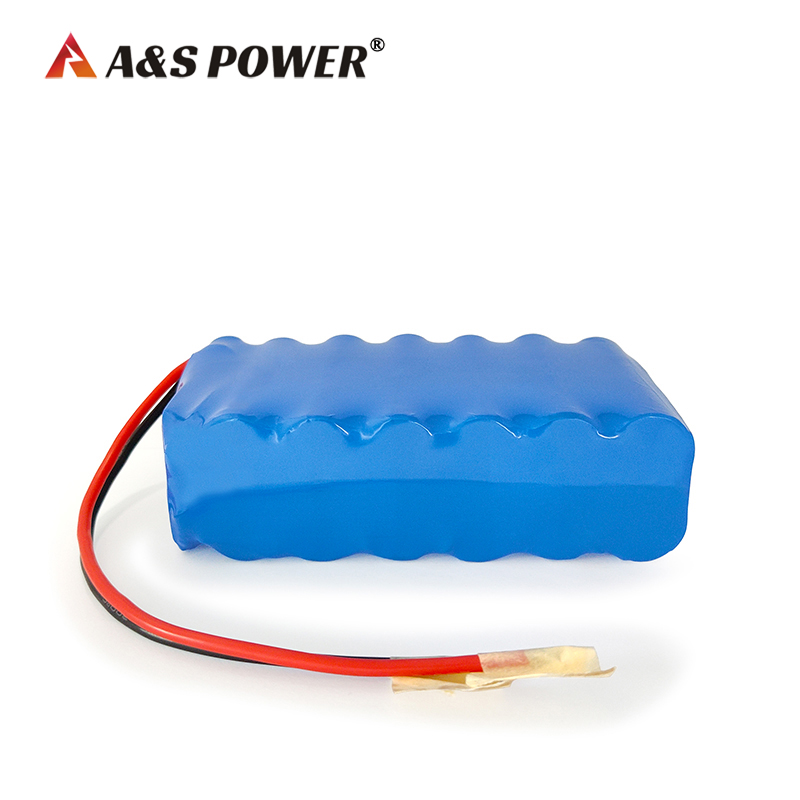

A&S Power 18650 6S2P 22.2V 4000mAh lithium ion battery with IEC62133/UN38.3 certificate
Product and Model Name
2.1 Product: Lithium ion Battery
2.2 Model Name:AS186506S2P
3 Ratings of battery pack
Item |
Rating |
Note |
||
3.1 Capacity |
Typical |
4000mAh |
Discharge:0.2CmA |
|
Minimum |
3800mAh |
|||
3.2 Nominal Voltage |
Average 22.2v |
|
||
3.3 AC Impedance Resistance |
≤360mΩ |
|
||
3.4 Discharge Cut-off Voltage |
18.0V |
|
||
3.5 Charge Current |
800mA |
Standard Charge |
||
3.6 Max Charge Voltage |
25.2V |
|
||
3.7 Charge Time |
Approx 6h |
Charge: 0.2CmA |
||
3.8 Max. Charge Current |
4.0A |
1.0CmA |
||
3.9 Max. Discharge Current |
16.0A |
|
||
3.10 Weight |
Approx 600g |
|
||
3.11 Operating Temperature |
Charge |
0~+45°C |
|
|
Discharge |
-20~+60°C |
|
||
3.12 Storage Temperature |
less than 1 month |
-5~+35°C |
Recommended storage temperature: 25°C,at the shipment state |
|
less than 3 months |
-5~+35°C |
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely
Lithium Ion Battery Cell Models:
Model | Nominal voltage(V) | Capacity (mAh) | Max charge voltage(V) | Cut-off discharge voltage(V) | Max continuous discharge currnt(C) | Diameter φ ( mm) | Height ( mm) | Weight (approx)(g) |
AS-18650 | 3.7 | 2000 | 4.25 | 2.75 | 3C | 18 | 65 | 43.5 |
AS-18650 | 3.7 | 2200 | 4.25 | 2.75 | 3C | 18 | 65 | 45 |
AS-18650 | 3.7 | 2500 | 4.25 | 2.75 | 3C | 18 | 65 | 45.5 |
AS-18650 | 3.7 | 2600 | 4.25 | 2.75 | 3C | 18 | 65 | 46 |
AS-18650 | 3.6 | 3200 | 4.25 | 2.5 | 2C | 18 | 65 | 45.5 |
AS-18650 | 3.6 | 3350 | 4.25 | 2.5 | 1C | 18 | 65 | 46 |
AS-21700 | 3.6 | 4000 | 4.25 | 2.5 | 5C | 21 | 70 | 68.5 |
AS-21700 | 3.6 | 4500 | 4.25 | 2.5 | 3C | 21 | 70 | 69 |
AS-21700 | 3.6 | 4800 | 4.25 | 2.5 | 1C | 21 | 70 | 70 |
AS-21700 | 3.6 | 5000 | 4.25 | 2.5 | 1C | 21 | 70 | 70 |
A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:
Model | Nominal voltage(V) | Capacity (mAh) | Max charge voltage(V) | Cut-off discharge voltage(V) | Max continuous discharge currnt(C) | Weight (approx)(g) | Certification |
AS-18650-2600-11 | 3.7 | 2600 | 4.2 | 3 | 1C | 49 | UL2054,IEC62133(CB),CE,KC,UN38.3 |
AS-18650-2000-21 | 7.4 | 2000 | 8.4 | 6 | 1C | 89 | UL2054,IEC62133(CB),UN38.3 |
AS-18650-2600-21 | 7.4 | 2600 | 8.4 | 6 | 1C | 90 | IEC62133(CB),UN38.3 |
AS-18650-3350-21 | 7.4 | 3350 | 8.4 | 5 | 1C | 92 | IEC62133(CB) |
AS-18650-2000-32 | 11.1 | 4000 | 12.6 | 9 | 0.5C | 265 | UL2054,UN38.3 |
AS-18650-2600-41 | 14.8 | 2600 | 16.8 | 12 | 1C | 185 | IEC62133(CB) |
AS-18650-2500-52 | 18.5 | 5000 | 21 | 15 | 1C | 480 | IEC62133(CB),UN38.3 |
AS-18650-2000-62 | 22.2 | 4000 | 25.2 | 18 | 2C | 530 | IEC62133(CB),UN38.3 |
AS-21700-5000-14 | 3.7 | 20000 | 4.2 | 2.5 | 0.25 | 300 | UN38.3 |
AS-21700-4800-12 | 3.7 | 9600 | 4.2 | 2.5 | 0.2 | 150 | UN38.3 |
AS-21700-4800-73 | 25.9 | 15000 | 29.4 | 17.5 | 0.5 | 1500 | CE |
AS-21700-50E-22 | 7.4 | 10000 | 8.4 | 5 | 0.5 | 300 | IEC62133(CB),UN38.3 |
Application:
Children toy car |
Sweeping robot |
electric toy |
Company information:
A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery and LiFePO4 battery.
Company Overview
Q1: Can I have some samples for testing quality?
A1: Yes, you can buy some samples of any our products for testing quality and market.A5: yes,we are factory.
If you have any questions abouts lithium ion battery,lithium polymer batteries for sale,lifepo4 battery ,you can contact with us.Thank you to visit my website:http://www.szaspower.com!
