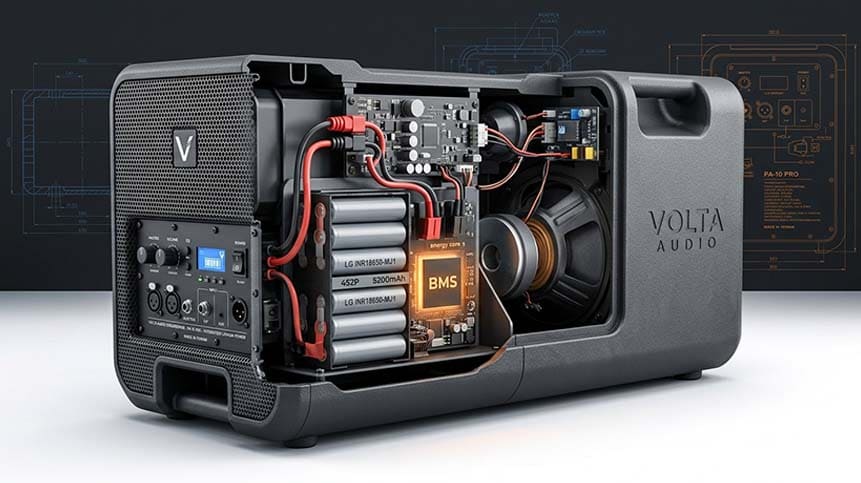

18650 Battery Pack for Portable Speakers, Amplifiers & Portable PA Systems

Understanding 18650 Battery Packs in Portable Audio Systems

In my experience working with lithium battery design for portable audio equipment, I often see a common misconception: people think a battery is just a “power box.”

In reality, a 18650 battery pack for portable speakers and amplifiers is an engineered energy system that directly affects:

• Sound power output
• Bass stability under load
• Maximum volume performance
• Runtime consistency
• Device safety and thermal behavior

Modern portable speakers, guitar amplifiers, and PA systems increasingly rely on lithium-ion 18650 cell-based packs because they offer a balance of energy density, discharge capability, and modular scalability.

Why 18650 Battery Packs Are Widely Used in Audio Devices

From a manufacturing and OEM perspective, 18650 cells dominate audio power systems for three core reasons:

1. High Energy Density

A single 18650 cell typically provides 2000–3500mAh capacity, enabling compact yet powerful energy storage.

2. Stable Discharge Performance

Audio systems require instant peak current, especially for bass or amplifier spikes. High-drain 18650 cells can deliver:

• 5A to 20A continuous discharge (depending on cell type)
• Short burst peaks up to 30A+ in power-grade cells

This is critical for PA systems and guitar amplifiers where dynamic load changes are frequent.

3. Mature Supply Chain

According to industry battery engineering references, 18650 cells are widely adopted in:

• Portable speakers
• Wireless PA systems
• Guitar combo amplifiers
• Stage monitoring systems

This maturity ensures reliability and consistent sourcing.

Common 18650 Battery Pack Configurations for Speakers & Amplifiers

In most real-world designs, I work with series-parallel configurations, especially 4S2P.

Typical Configuration: 4S2P (14.8V System)

This is the most common structure for portable audio systems.

Why 4S2P is ideal for audio:

• Matches amplifier input voltage range
• Supports 20W–200W portable audio systems
• Reduces voltage sag under bass peaks
• Balances weight and runtime

Battery Performance in Portable Speakers & Amplifiers

Real Runtime Calculation Method

Battery runtime is not linear due to voltage drop and amplifier efficiency.

Formula used in engineering:

Runtime (hours) = Battery Energy (Wh) / Device Power (W)

Example:

• Battery: 14.8V × 6Ah = 88.8Wh
• Speaker load: 30W

Runtime ≈ 2.96 hours

Real-World Audio Load Behavior

Audio devices are not constant loads:

• Idle: 5–10W
• Medium volume: 20–50W
• Peak bass output: 80–200W spikes

This is why lithium packs often perform differently than theoretical calculations.

Technical Structure of a 18650 Audio Battery Pack

A professional-grade battery pack for PA systems includes:

1. 18650 Cells

• Matched internal resistance
• Same capacity batch
• Same discharge profile

2. Battery Management System (BMS)

Critical for safety and performance:

• Overcharge protection (16.8V cutoff)
• Over-discharge protection (~10.8–11.2V cutoff)
• Overcurrent protection (10A–30A+)
• Temperature monitoring (NTC sensor)

3. Nickel Strip Welding Structure

Spot-welded nickel ensures:

• Low resistance
• Stable high current output
• Mechanical durability in vibration-heavy audio devices

4. Thermal Design

Portable amplifiers generate heat, especially at high volume.
Proper packs include:

• Venting space
• Thermal padding
• Heat-resistant casing

Data Comparison – Speaker Battery Capacity Levels

Engineering Considerations for Amplifiers & PA Systems

Portable amplifiers behave differently from simple speakers:

1. Peak Current Demand

Amplifiers require instantaneous current bursts during:

• Guitar strumming
• Drum hits
• Bass drops

2. Voltage Stability

Voltage sag directly affects sound quality:

• Low voltage = distortion
• High internal resistance = weak bass response

3. Continuous Output Stability

Professional PA systems need stable output over long sessions (2–6 hours).

Safety Standards and Certification

For export-grade battery packs, especially in Europe and the US, I always consider:

• UN38.3 transport certification
• IEC62133 safety standard
• MSDS documentation
• CE compliance

OEM & Custom Battery Pack Advantages

From a manufacturing perspective, custom 18650 packs offer:

• Shape customization for speaker housing
• Higher discharge rate optimization
• Integrated smart BMS (SMBus / UART)
• Weight distribution control
• Waterproof casing options

This is especially important for:

• Stage PA systems
• Outdoor portable speakers
• Guitar amplifiers

Final Thoughts

From my engineering experience, the performance of a portable speaker or amplifier is not defined by the speaker driver alone—it is fundamentally powered by the quality of the 18650 battery pack behind it.

A well-designed lithium pack determines:

• Whether bass remains stable at high volume
• Whether the amplifier clips under load
• Whether the system lasts 3 hours or 10 hours

In modern portable audio systems, battery engineering is audio engineering.

If you are developing professional audio or musical equipment and require a reliable battery system, our engineering team can support your project from concept to mass production.

Contact us for:

• Custom battery pack design
• OEM/ODM audio battery solutions
• Prototype development
• Mass production supply

FAQ – 18650 Battery for Speakers & Amplifiers

Q1: Why is 18650 battery used in portable speakers?

Because it provides high energy density, stable discharge current, and modular scalability suitable for audio amplification systems.

Q2: What is the best configuration for PA system batteries?

The most common is 4S2P (14.8V 18650 pack), balancing voltage and runtime for portable amplifiers.

Q3: How long does a 18650 speaker battery last?

Depending on load, typically: 4–8 hours for portable speakers, 2–6 hours for PA systems under heavy use.

Q4: Can I replace 18650 cells in a speaker battery pack?

Yes, but only with matched cells and proper balancing via BMS is recommended.

Q5: What is the risk of using low-quality 18650 cells?

Risks include: Voltage instability, Overheating, Reduced runtime, Potential safety hazards.
