A&S Power 11.1v 7500mah lithium ion battery for solar led light
Product and Model Name
2.1 Product: Lithium ion Battery
2.2 Model Name:AS186503S3P
3 Ratings of battery pack
Item
|
Rating
|
Note
|
3.1 Capacity
|
Typical
|
7500mAh
|
Discharge:0.2CmA
|
Minimum
|
7500mAh
|
3.2 Nominal Voltage
|
Average 11.1V
|
|
3.3 AC Impedance Resistance
|
≤220mΩ
|
|
3.4 Discharge Cut-off Voltage
|
9.0V
|
|
3.5 Charge Current
|
1500mA
|
Standard Charge
|
3.6 Max Charge Voltage
|
12.6V
|
|
3.7 Charge Time
|
Approx 6h
|
Charge: 0.2CmA
|
3.8 Max. Charge Current
|
7500mA
|
1.0CmA
|
3.9 Max. Discharge Current
|
15000A
|
2.0CmA
|
3.10 Weight
|
Approx 410g
|
|
3.11 Operating
Temperature
|
Charge
|
0~+45°C
|
|
Discharge
|
-20~+60°C
|
|
3.12 Storage
Temperature
|
less than 1 month
|
-5~+35°C
|
Recommended storage
temperature: 25°C,at the
shipment state
|
less than 3 months
|
-5~+35°C
|

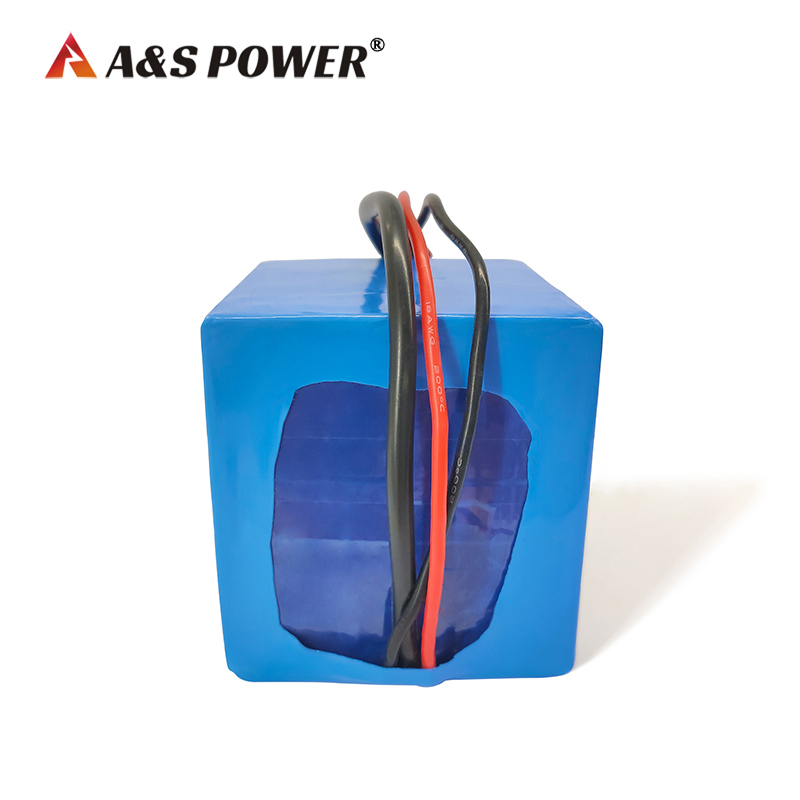

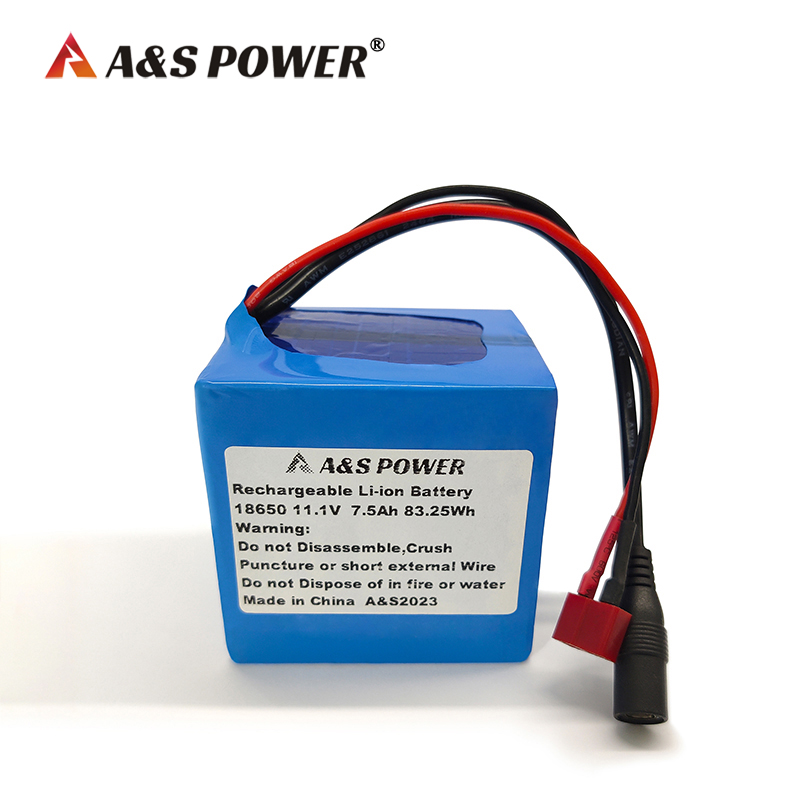

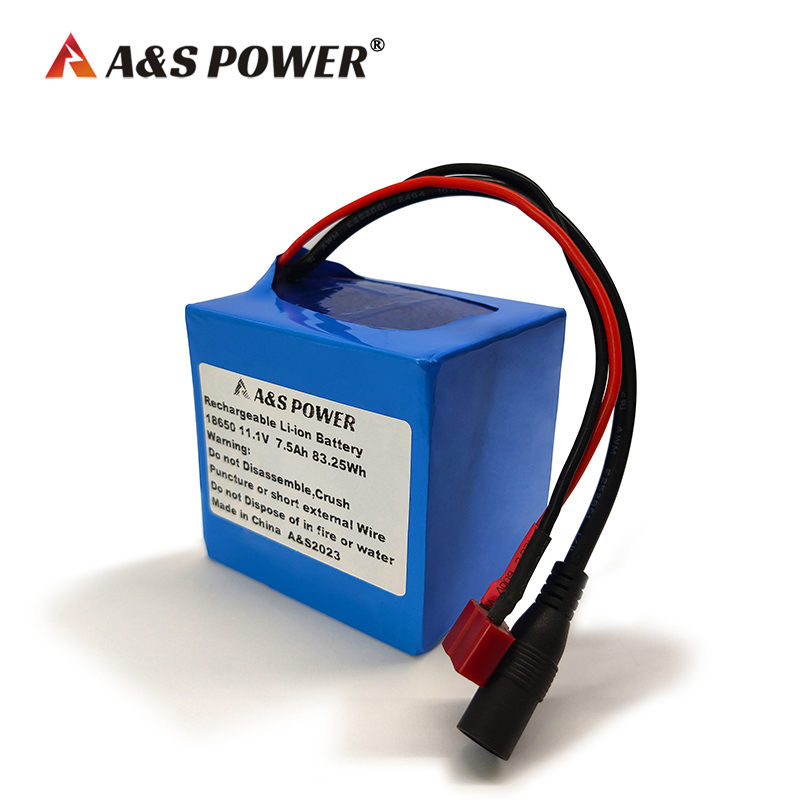

Product Photo
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely
Lithium Ion Battery Cell Models:
Model | Nominal voltage(V) | Capacity (mAh) | Max charge voltage(V) | Cut-off discharge voltage(V) | Max continuous discharge currnt(C) | Diameter φ ( mm) | Height ( mm) | Weight (approx)(g) |
AS-18650 | 3.7 | 2000 | 4.25 | 2.75 | 3C | 18 | 65 | 43.5 |
AS-18650 | 3.7 | 2200 | 4.25 | 2.75 | 3C | 18 | 65 | 45 |
AS-18650 | 3.7 | 2500 | 4.25 | 2.75 | 3C | 18 | 65 | 45.5 |
AS-18650 | 3.7 | 2600 | 4.25 | 2.75 | 3C | 18 | 65 | 46 |
AS-18650 | 3.6 | 3200 | 4.25 | 2.5 | 2C | 18 | 65 | 45.5 |
AS-18650 | 3.6 | 3350 | 4.25 | 2.5 | 1C | 18 | 65 | 46 |
AS-21700 | 3.6 | 4000 | 4.25 | 2.5 | 5C | 21 | 70 | 68.5 |
AS-21700 | 3.6 | 4500 | 4.25 | 2.5 | 3C | 21 | 70 | 69 |
AS-21700 | 3.6 | 4800 | 4.25 | 2.5 | 1C | 21 | 70 | 70 |
AS-21700 | 3.6 | 5000 | 4.25 | 2.5 | 1C | 21 | 70 | 70 |
A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:
Model | Nominal voltage(V) | Capacity (mAh) | Max charge voltage(V) | Cut-off discharge voltage(V) | Max continuous discharge currnt(C) | Weight (approx)(g) | Certification |
AS-18650-2600-11 | 3.7 | 2600 | 4.2 | 3 | 1C | 49 | UL2054,IEC62133(CB),CE,KC,UN38.3 |
AS-18650-2000-21 | 7.4 | 2000 | 8.4 | 6 | 1C | 89 | UL2054,IEC62133(CB),UN38.3 |
AS-18650-2600-21 | 7.4 | 2600 | 8.4 | 6 | 1C | 90 | IEC62133(CB),UN38.3 |
AS-18650-3350-21 | 7.4 | 3350 | 8.4 | 5 | 1C | 92 | IEC62133(CB) |
AS-18650-2000-32 | 11.1 | 4000 | 12.6 | 9 | 0.5C | 265 | UL2054,UN38.3 |
AS-18650-2600-41 | 14.8 | 2600 | 16.8 | 12 | 1C | 185 | IEC62133(CB) |
AS-18650-2500-52 | 18.5 | 5000 | 21 | 15 | 1C | 480 | IEC62133(CB),UN38.3 |
AS-18650-2000-62 | 22.2 | 4000 | 25.2 | 18 | 2C | 530 | IEC62133(CB),UN38.3 |
AS-21700-5000-14 | 3.7 | 20000 | 4.2 | 2.5 | 0.25 | 300 | UN38.3 |
AS-21700-4800-12 | 3.7 | 9600 | 4.2 | 2.5 | 0.2 | 150 | UN38.3 |
AS-21700-4800-73 | 25.9 | 15000 | 29.4 | 17.5 | 0.5 | 1500 | CE |
AS-21700-50E-22 | 7.4 | 10000 | 8.4 | 5 | 0.5 | 300 | IEC62133(CB),UN38.3 |
