The AS502248 is a rechargeable 3.7V 500mAh lithium polymer battery cell designed for compact electronic products. The supplied certification documentation includes UL1642, CB, CCC, KC, CE and UN38.3 documentation. The UL1642 certificate identifies the product category as Rechargeable Battery Cells.
The UL1642 Certificate Number is UL-US-L61542-03511-60302102-1, with Report Reference MH61542-20120306 and an Issue Date of August 6, 2026.
Introduction
When I evaluate a rechargeable lithium polymer battery for an OEM project, I do not look at capacity alone. For many commercial products, the battery must also fit the available space, meet electrical requirements, pass relevant safety evaluations, and provide documentation that can support the customer's compliance process.

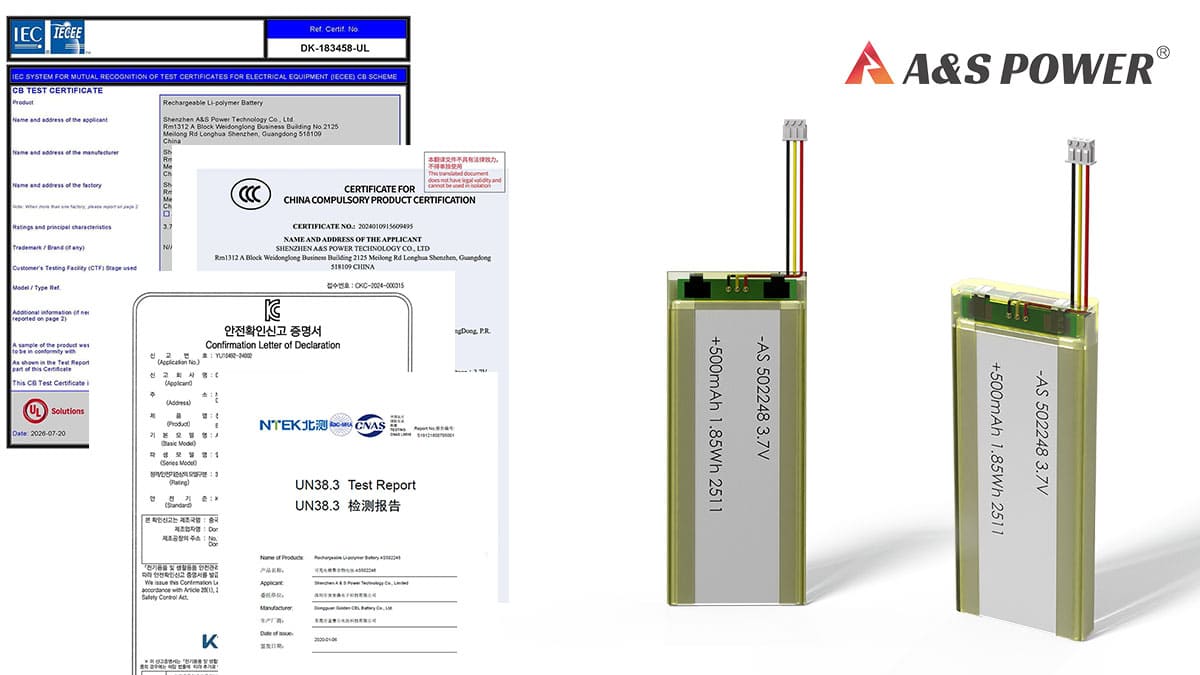

That is why I am highlighting our AS502248 3.7V 500mAh lithium polymer battery cell in this article.
The AS502248 is a compact rechargeable LiPo cell with a nominal voltage of 3.7V and a typical capacity of 500mAh. Its compact cylindrical-free pouch construction allows the battery geometry to be considered more flexibly during product design.
More importantly for OEM customers, this cell has documentation covering UL1642, CB, CCC, KC, CE and UN38.3. This documentation gives customers a clearer starting point when evaluating the battery for new products, supplier qualification and regional compliance requirements.
AS502248 3.7V 500mAh LiPo Battery Specifications
The AS502248 is designed as a compact rechargeable lithium polymer cell for space-constrained electronic products.
| Parameter | Specification |
|---|---|
| Model | AS502248 |
| Battery Type | Rechargeable Lithium Polymer Battery |
| Nominal Voltage | 3.7V |
| Typical Capacity | 500mAh |
| Minimum Capacity | 490mAh |
| Standard Charge/Discharge | 0.2C |
| Standard Charge Current | 245mA |
| Maximum Charge Current | 500mA |
| Charge Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.00V |
| Dimensions | 5.2 × 22.5 × 50.5mm |
UL1642 Certification for the AS502248 Battery Cell
UL1642 Certificate Details
UL1642 is an important safety standard to consider when an OEM customer requires documented evaluation of rechargeable lithium battery cells.
For the AS502248 cell, the supplied UL documentation identifies the product category as Rechargeable Battery Cells.
| UL1642 Data | Details |
|---|---|
| Standard | UL1642 |
| Product Category | Rechargeable Battery Cells |
| Certificate Number | UL-US-L61542-03511-60302102-1 |
| Report Reference | MH61542-20120306 |
| Issue Date | August 6, 2026 |
| Battery Model | AS502248 |
| Nominal Voltage | 3.7V |
| Capacity | 500mAh |
UL1642 Certificate
CB Certification Details
The AS502248 also has CB certification documentation referencing IEC 62133-2 requirements for rechargeable battery safety.
| CB Data | Details |
|---|---|
| Certification | CB |
| Reference Certificate No. | DK-183458-UL |
| Standard | IEC 62133-2:2017 |
| Amendment | IEC 62133-2:2017/AMD1:2021 |
| Test Report | R02026050137 01001 |
| Issue Date | July 9, 2026 |

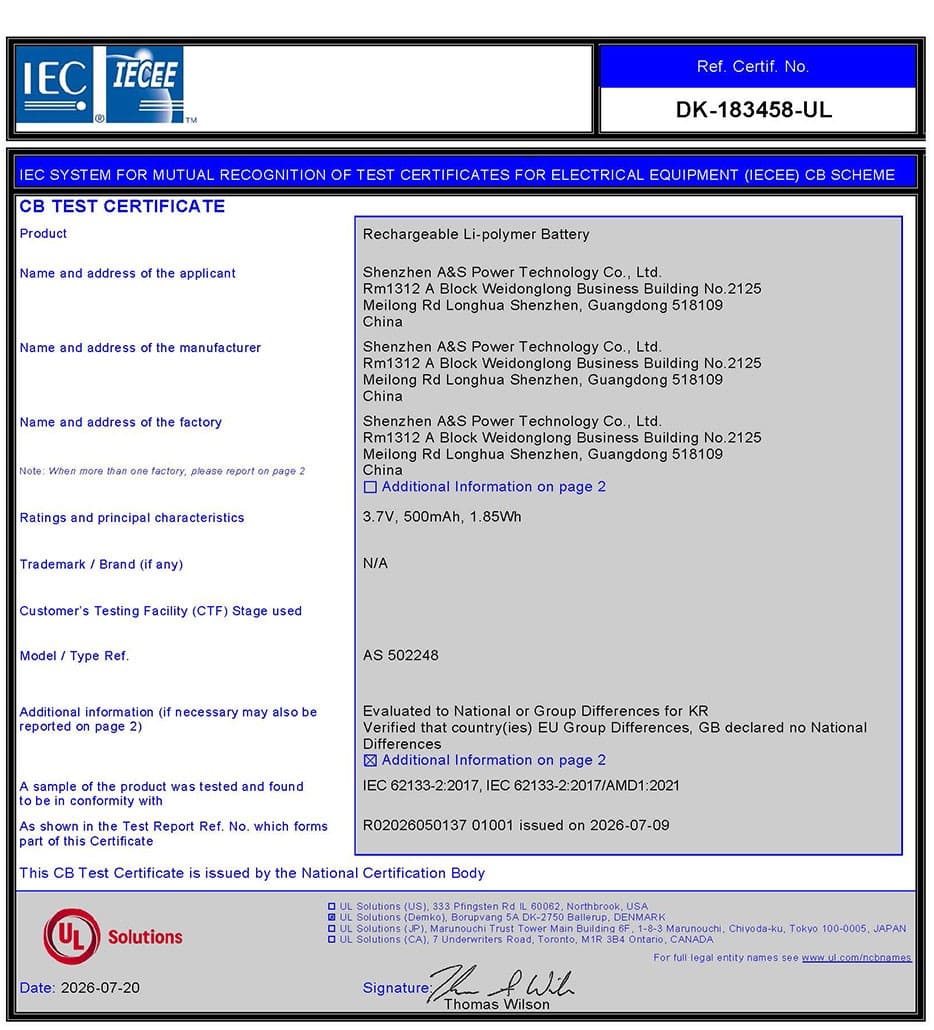

CB Certificate
CCC Certification Details
The AS502248 is also supported by CCC certification documentation under GB 31241-2022.
| CCC Data | Details |
|---|---|
| Certification | CCC |
| Certificate No. | 2024010915609495 |
| Standard | GB 31241-2022 |
| Valid From | February 23, 2024 |
| Valid Until | February 22, 2029 |

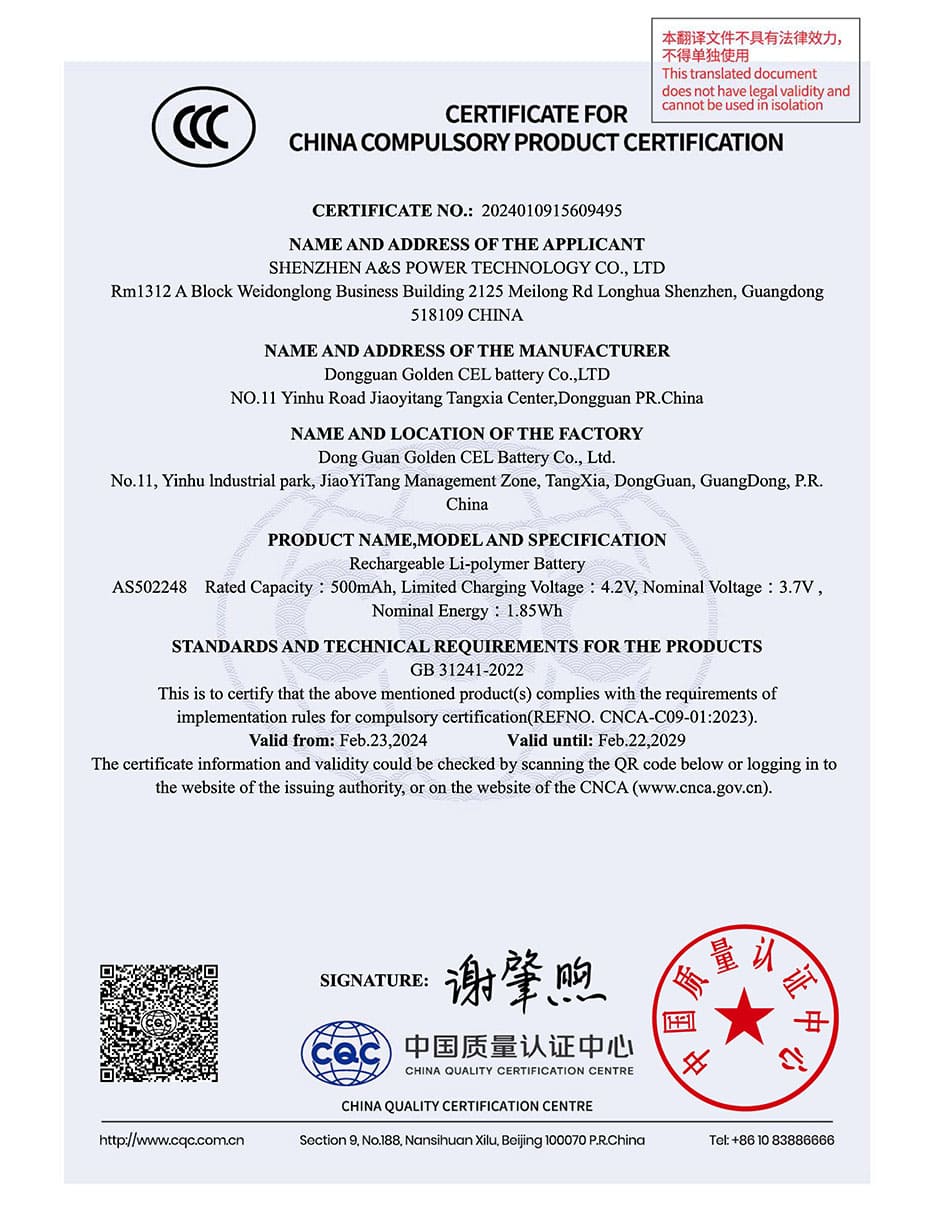

CCC Certificate
KC Certification Details
For customers developing products for the Korean market, the AS502248 has KC certification documentation.
| KC Data | Details |
|---|---|
| Certification | KC |
| Application No. | YU10492-24002 |
| Certificate Number | CKC-2024-000315 |
| Standard | KC62133-2 (2020-07) |

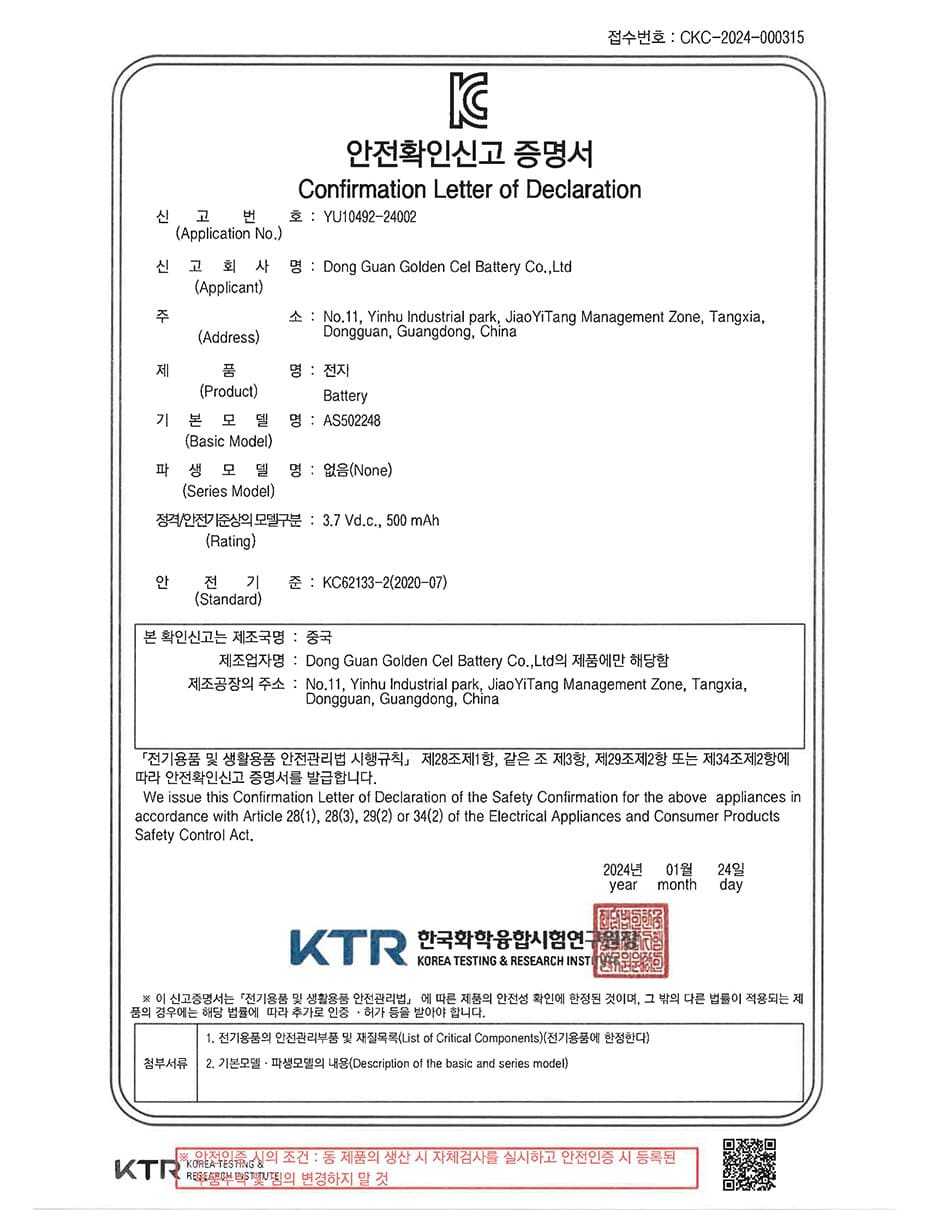

KC Certificate
UN38.3 Test Report
Transportation compliance is another important consideration for rechargeable lithium batteries.
The AS502248 has a UN38.3 test report with the following information:
| UN38.3 Data | Details |
|---|---|
| Test Standard | UN38.3 |
| Report No. | S19121800705001 |
| Date of Issue | January 6, 2020 |
| Battery Model | AS502248 |
| Battery Type | Rechargeable Lithium Polymer Cell |

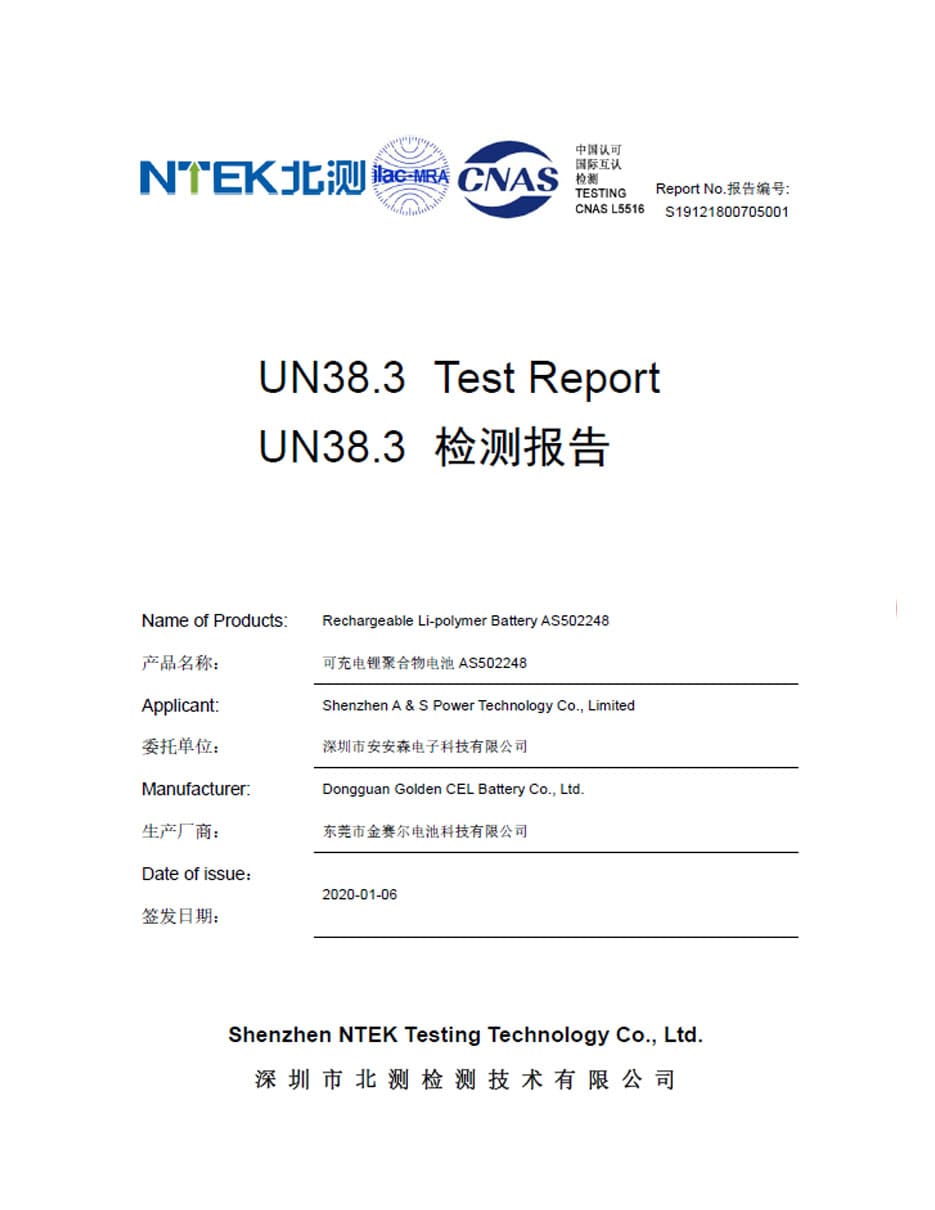

UN38.3 Test Report
AS502248 Certification Summary
| Certification | Certificate / Report Number | Standard / Reference | Issue / Validity |
|---|---|---|---|
| UL1642 | UL-US-L61542-03511-60302102-1 | UL1642 | August 6, 2026 |
| UL1642 Report | MH61542-20120306 | UL1642 | August 6, 2026 |
| CB | DK-183458-UL | IEC 62133-2:2017 + AMD1:2021 | July 9, 2026 |
| CCC | 2024010915609495 | GB 31241-2022 | 2024-02-23 to 2029-02-22 |
| KC | CKC-2024-000315 | KC62133-2 (2020-07) | Available |
| CE | CE documentation available | To be verified from original document | Available |
| UN38.3 | S19121800705001 | UN38.3 | January 6, 2020 |
14 Additional UL1642 LiPo Battery Cells
In addition to AS502248, A&S Power has expanded its range of rechargeable lithium polymer battery cells with UL1642 certification . The following models represent additional UL1642-certified cell options supplied for OEM battery evaluation.
| Model | Nominal Voltage | Capacity |
|---|---|---|
| 601225 | 3.7V | 150mAh |
| 502540 | 3.7V | 500mAh |
| 452536 | 3.7V | 400mAh |
| 582751 | 3.7V | 800mAh |
| 682728 | 3.7V | 520mAh |
| 755060 | 3.7V | 3000mAh |
| 501520 | 3.7V | 150mAh |
| 102030 | 3.7V | 600mAh |
| 903048 | 3.7V | 1500mAh |
| 301525 | 3.7V | 100mAh |
| 502072 | 3.7V | 900mAh |
| 602030 | 3.7V | 300mAh |
| 553035 | 3.7V | 600mAh |
| 502530 | 3.7V | 350mAh |
Why Certification Matters for OEM Battery Selection
From my experience working with OEM battery projects, certification should not be treated as a substitute for engineering validation.
A battery can have the appropriate certification documentation and still be unsuitable for a particular device if its dimensions, current capability, connector, protection circuit, charging profile or operating temperature do not match the product.
When I evaluate a battery for an OEM application, I normally look at:
- Available battery compartment
- Required capacity
- Maximum charge current
- Maximum discharge current
- Operating temperature
- Charging IC compatibility
- Protection circuit requirements
- Connector and wire configuration
- Required certification
- Transportation documentation
Typical Applications for a 3.7V 500mAh LiPo Battery
A 3.7V 500mAh LiPo cell can be considered for many compact electronic applications, including:
- Wearable electronics
- Portable consumer electronics
- GPS and tracking devices
- IoT devices
- Smart sensors
- Beauty and personal-care devices
- Portable medical electronics
- Handheld instruments
- Small industrial electronics
- Smart home products
The final battery selection should always be based on the device's electrical load, mechanical space, charging system and required safety architecture.
Why OEM Customers Choose A&S Power
At A&S Power, I approach battery selection from the perspective of the complete product rather than simply supplying a standard cell.
Our certification resources cover multiple lithium battery categories, including UL1642, UL2054, CE, CB, KC, CCC, PSE and UN38.3 documentation.
For customers who already have a suitable cell, we can also work on the complete battery pack configuration, including:
- Battery dimensions
- Capacity
- Voltage
- Connector
- Wire length
- PCM / protection circuit
- NTC
- Labels
- Packaging
- OEM production requirements
Related Battery Resources
Customers can review the A&S Power Battery Certification page to explore our broader certification resources.
For complete technical specifications, visit the AS502248 3.7V 500mAh LiPo Battery product page .
Customers looking for customized lithium battery solutions can also visit our Custom Battery Services page.
For OEM and ODM inquiries, please visit our Contact A&S Power page.
Frequently Asked Questions
Is the AS502248 a 3.7V 500mAh rechargeable LiPo battery?
Yes. The AS502248 is a rechargeable lithium polymer battery cell with a nominal voltage of 3.7V and a typical capacity of 500mAh.
Does the AS502248 have UL1642 certification?
Yes. The supplied UL1642 documentation identifies the product category as Rechargeable Battery Cells. The Certificate Number is UL-US-L61542-03511-60302102-1, with Report Reference MH61542-20120306 and Issue Date August 6, 2026.
What is the UL1642 report reference?
The UL1642 Report Reference supplied for AS502248 is MH61542-20120306.
Does the AS502248 have CB certification?
Yes. The CB reference certificate number is DK-183458-UL. The documentation references IEC 62133-2:2017 and IEC 62133-2:2017/AMD1:2021.
Does the AS502248 have CCC certification?
Yes. The CCC certificate number is 2024010915609495, based on GB 31241-2022. The supplied validity period is February 23, 2024 through February 22, 2029.
Does the AS502248 have KC certification?
Yes. The KC Certificate Number is CKC-2024-000315, with Application Number YU10492-24002 and standard KC62133-2 (2020-07).
Does the AS502248 have UN38.3 documentation?
Yes. The supplied UN38.3 Test Report Number is S19121800705001, issued on January 6, 2020.
Is CE documentation available?
Yes. The AS502248 product documentation identifies CE certification. The specific CE report number, applicable standards and issue date should be verified against the original CE document before being used in regulatory submissions.
Can A&S Power customize the AS502248 battery?
Yes. Depending on the project requirements, A&S Power can support OEM and ODM battery customization, including dimensions, capacity, voltage, connectors, wires, protection circuits, NTC and other battery pack requirements.
Looking for a Certified LiPo Battery for Your OEM Project?
If you are evaluating the AS502248 or need a different UL1642-certified lithium polymer battery cell, contact A&S Power with your required voltage, capacity, dimensions and application.
Request OEM Battery Information
