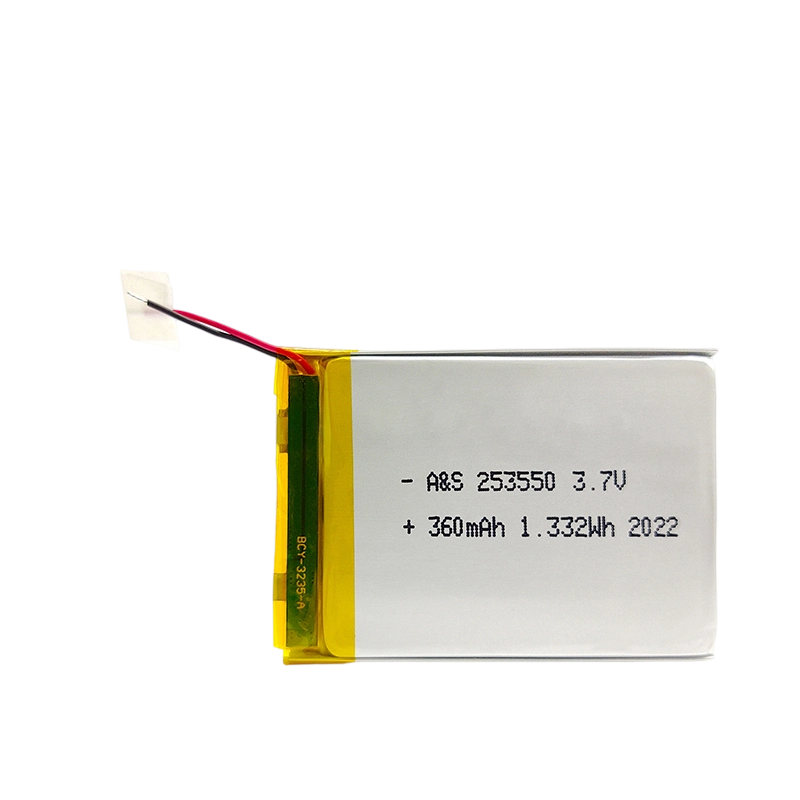

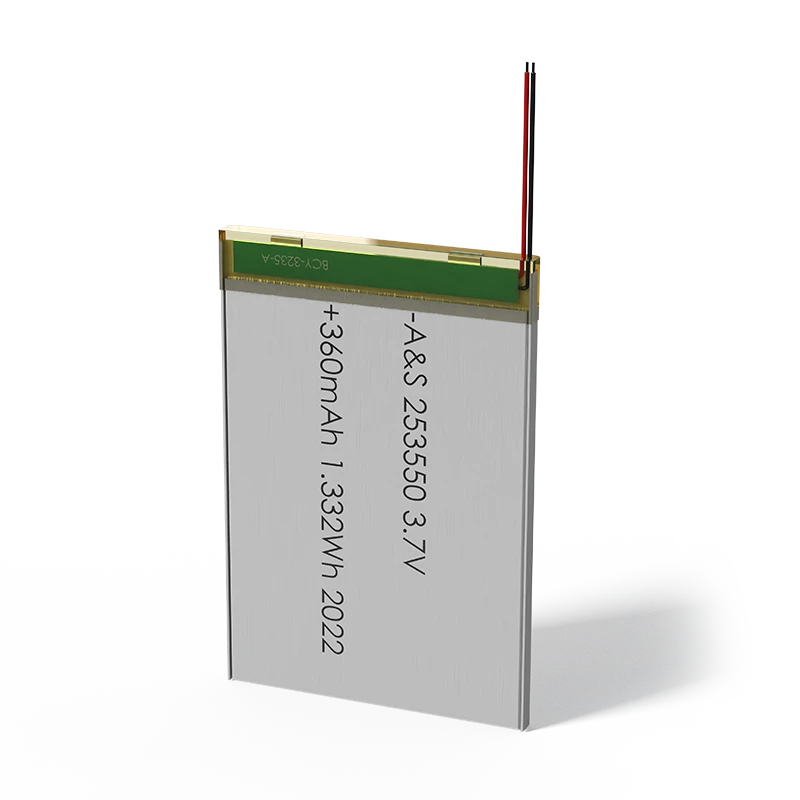

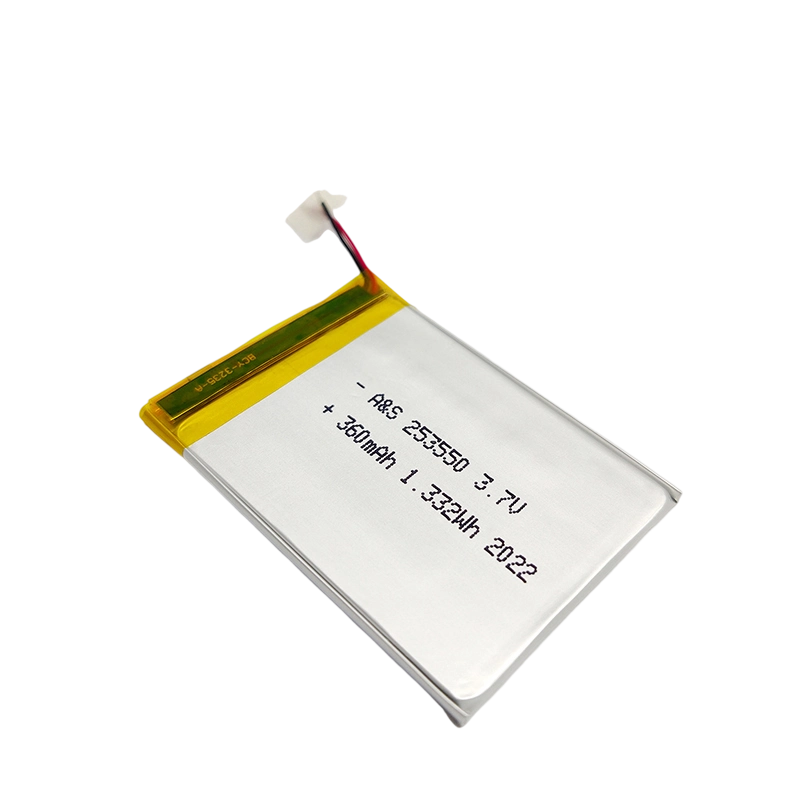

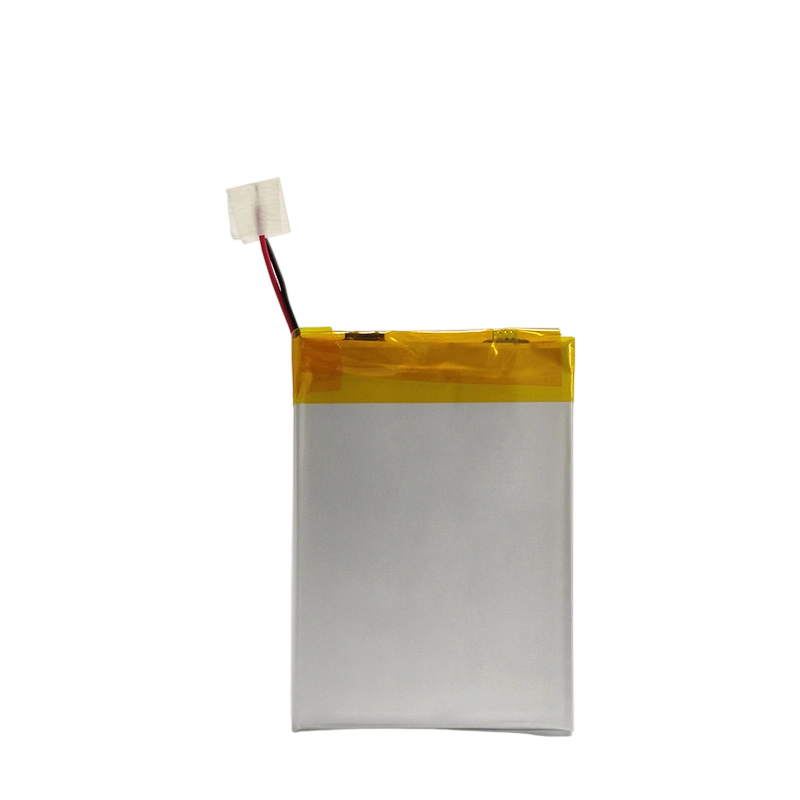

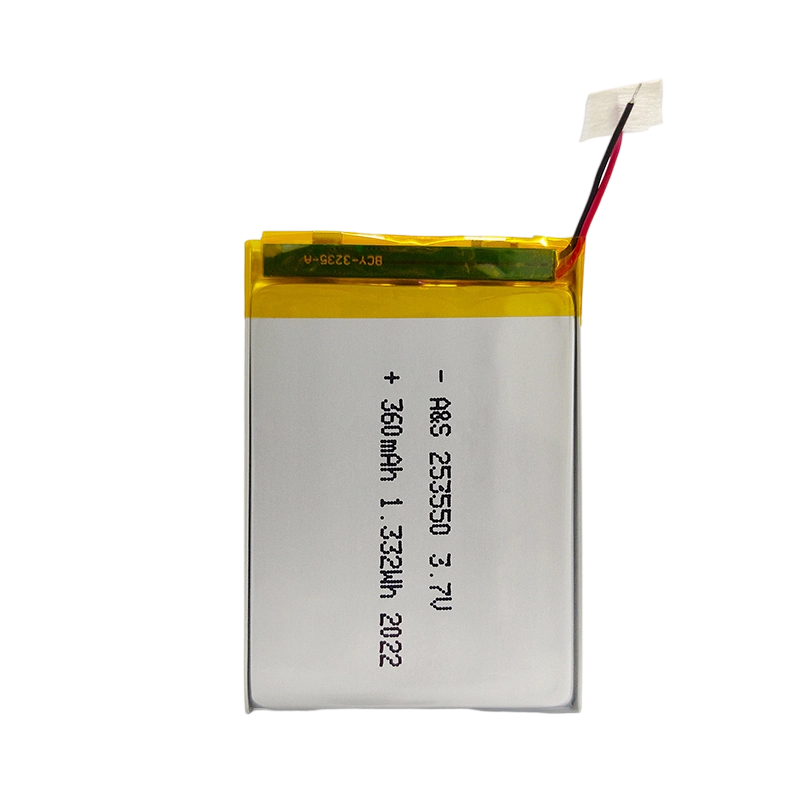

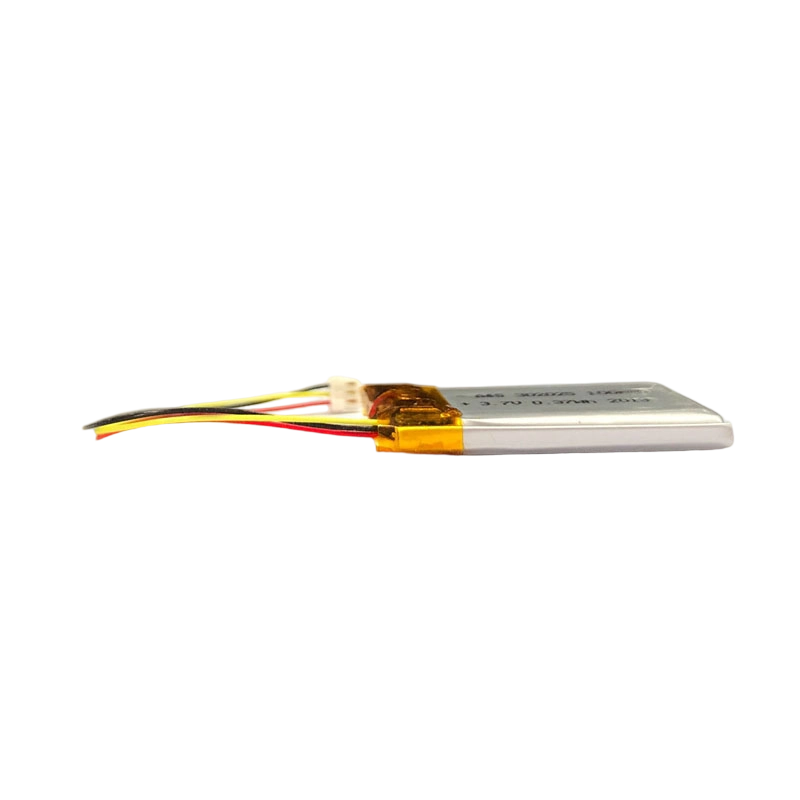

Parameters
Norminal Capacity: 360mAh
Rated Voltage: 3.7V
Weight: 6.5g
Dimensions (mm): 2.7*35.0*50.0mm
lmpedance: ≤320mΩ
Standard Charge/Discharge: 72mA
Max Charge/Discharge: 1C
Peak Discharge: 1.0CmA
Charge Temp: 0~+45℃
Discharge Temp: -20~+60℃
Product Parameters:
|
Item
|
Rating
|
Note
|
|
3.1 Capacity
|
Typical
|
360 mAh
|
From 4.2V to 3.0V by discharge current 0.2C.
|
|
Minimum
|
350 mAh
|
|
3.2 Nominal Voltage
|
Average 3.7V
|
|
|
3.3 AC Impedance Resistance
|
≤200mΩ
|
Cell
|
|
≤320mΩ
|
Pack
|
|
3.4 Discharge Cut-off Voltage
|
3.00V
|
|
|
3.5 Charge Current
|
72 mA
|
Standard Charge
|
|
3.6 Charge voltage
|
4.2V
|
|
|
3.7 Charge Time
|
Approx 6 h
|
Standard Charge
|
|
3.8 Fast Charge current
|
360mA
|
10~45℃
|
|
3.9 Discharge Current
|
180mA
|
|
|
3.10 Max Discharge current
|
360mA
|
|
|
3.11 Weight
|
Approx 6.5g
|
|
|
3.12 Shipping Voltage
|
3.85-3.95V
|
|
|
3.13 Operating Temperature
|
Charge
|
5~+10℃
|
Max Charge:0.5C(180mA)
|
|
10~+45℃
|
Max Charge: 1C(360mA)
|
|
Discharge
|
-20~+60℃
|
|
|
3.14 Storage Temperature
|
less than 1 month
|
-20~+45℃
|
Recommended storage
temperature: 25±2℃,at the shipment state.
|
|
less than 3 months
|
-20~+35℃
|
|
less than 6 months
|
-20~+30℃
|
Performance
1 Standard Test Conditions
Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise defined, test and measurement shall be done under temperature of 25±2℃ and relative humidity of 45~85%. The test results are not affected evidently by such conditions of temperature 15~30℃ or humidity 25~85%RH.5.2 Measuring Instrument or Apparatus.
2 Measuring Instrument or Apparatus
2.1 Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.

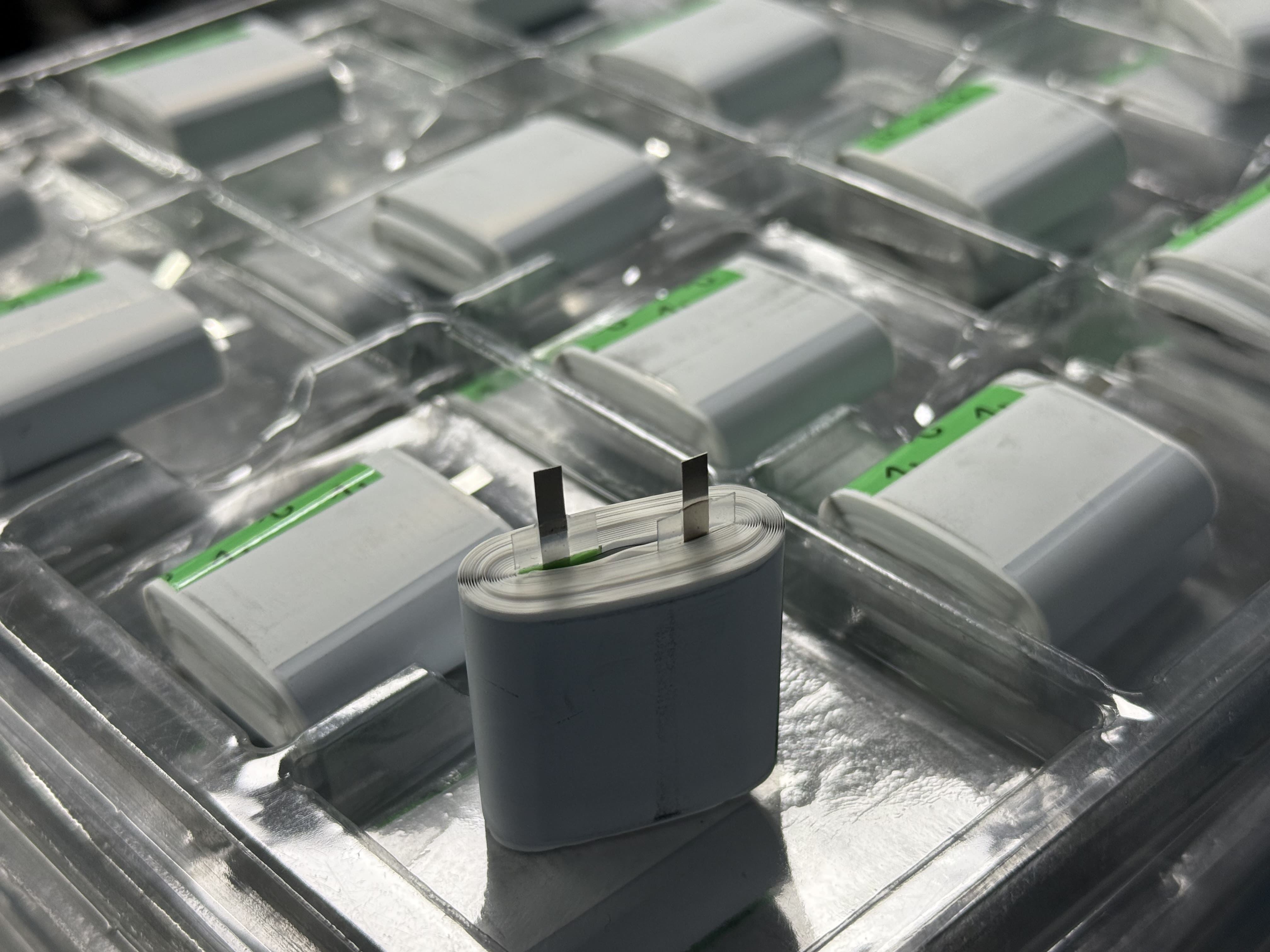

Custom Lithium Polymer Battery Solutions
1. Support Customized Battery Size:
The Same Battery Capacity We Can Do Different Sizes To Meet Customer Size Limitations;
2. Support Custom Wire And Plug:
Customized Wire And Plug According To Customer’s Use Scenario Requirements;
3. Support Customized Voltage:
We Support Customized Polymer Battery Packs To Meet Customers’ Demand For Battery Voltage And Capacity Through Series And Parallel Batteries;
4. Support Custom PCM Circuit Board:
In Addition To The Standard Overcharge, Overdischarge, Short Circuit Protection, We Also Support Temperature Overheat Protection, Communication Functions And Other Customized Services;
We specialize in providing customized lithium battery solutions for medical devices, GPS trackers, wearables, and more. Our products are known for their reliability, safety, and precision engineering. Whether you need high-capacity or ultra-slim battery packs, our engineering team is ready to help bring your project to life.
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely.
 |
|
 |
|
 |
|
 |

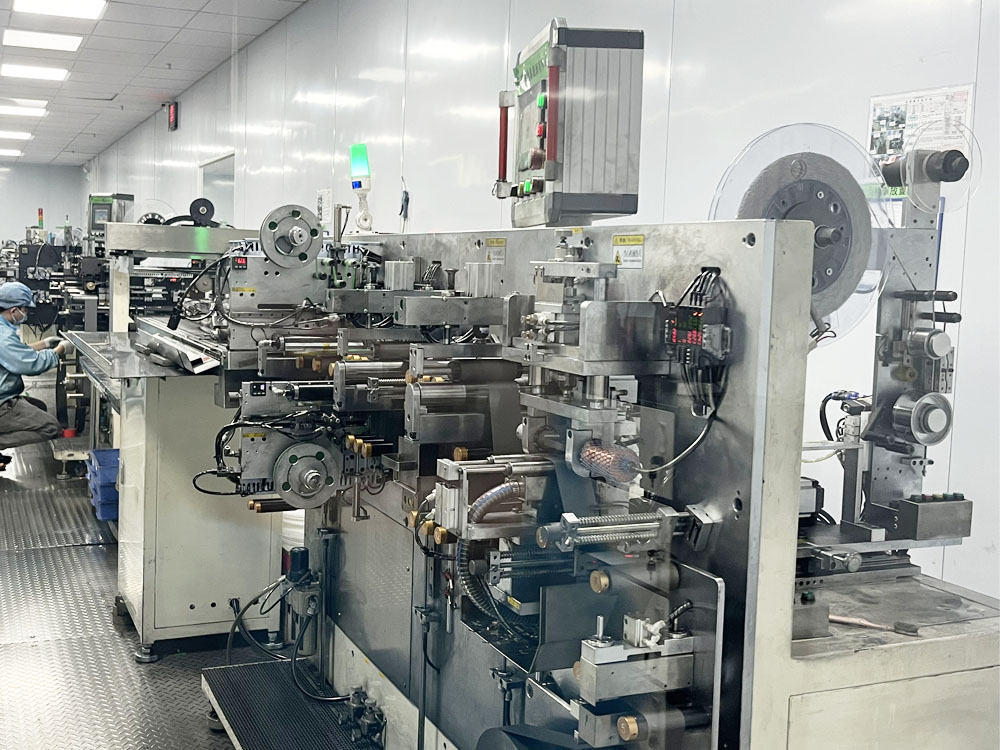

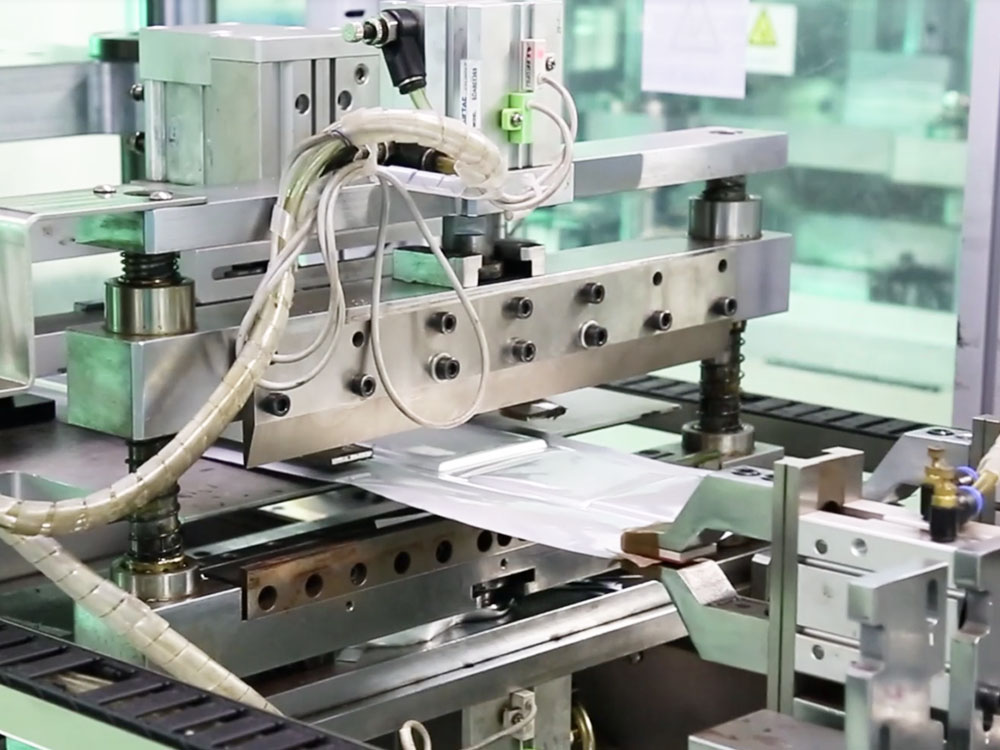

Automatic Rolling Machine
|
|

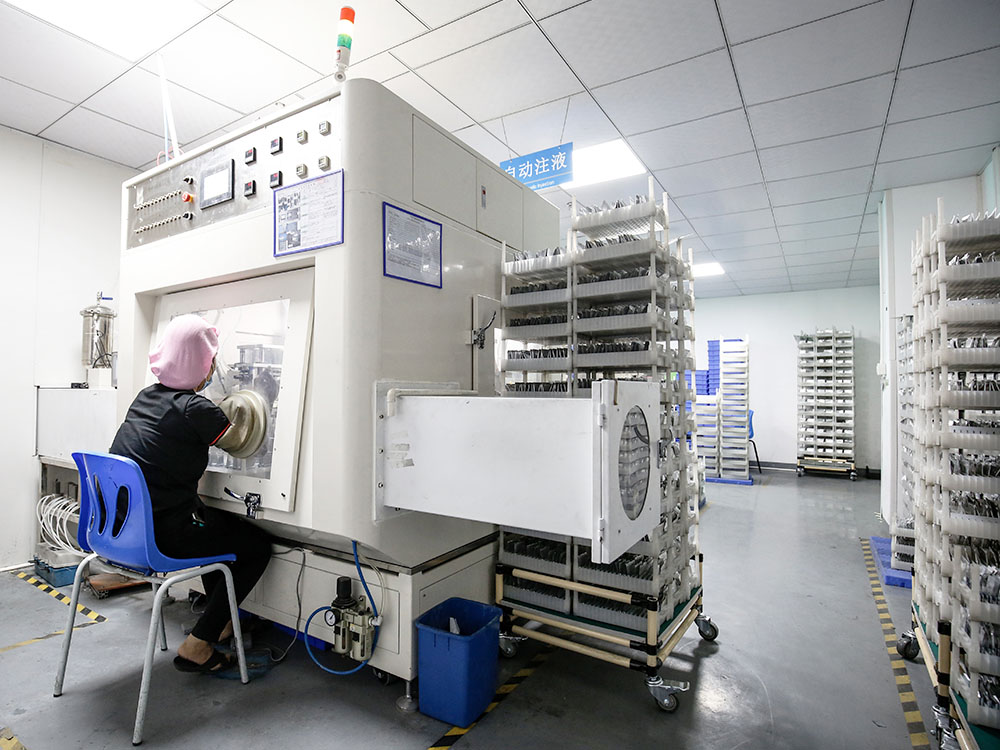

Electrolyte Injecting Machine
|
|
Automatic Tape Sticking Machine
|
|

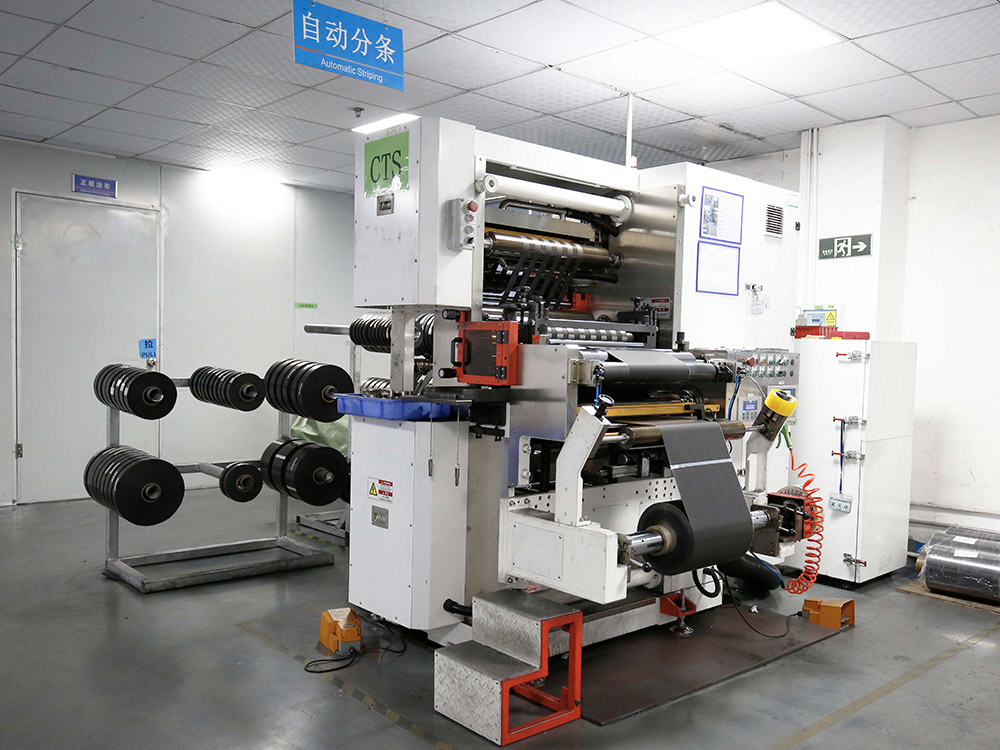

Automatic Slitting Machine
|
 |
|
 |
|
 |
|
 |
Fully Automatic Tablet Making Machine
|
|
Aluminum-Plastic Film Punching Machine
|
|

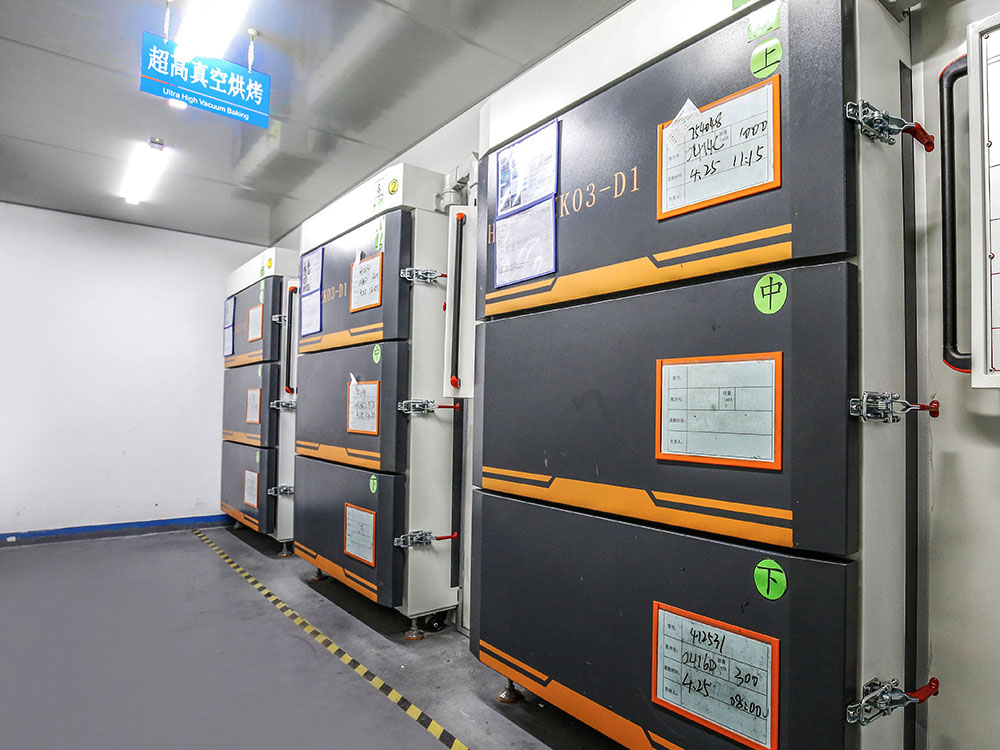

Ultra High Vacuum Baking Machine
|
|
