Parameters
Norminal Capacity: 420mAh
Rated Voltage: 3.7V
Weight: 6g
Dimensions (mm): 6.2*20.5*32.5mm
lmpedance: ≤380mΩ
Standard Charge/Discharge: 0.2C
Max Charge/Discharge: .350mA
Peak Discharge: 1.0CmA
Charge Temp: 0~+45℃
Discharge Temp: -20~+60℃
AS802030 Key Technical Parameters:

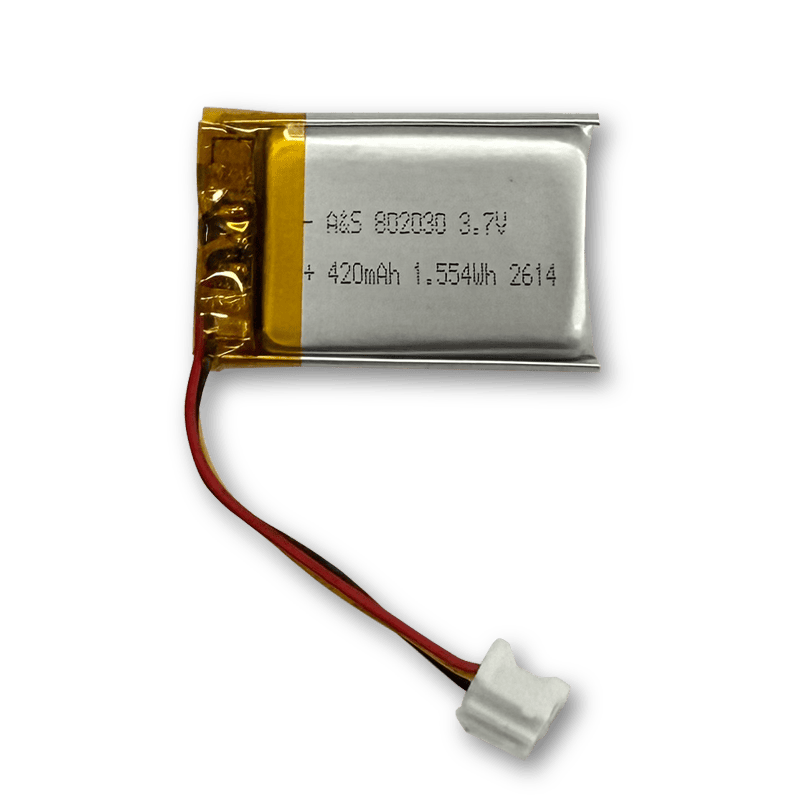

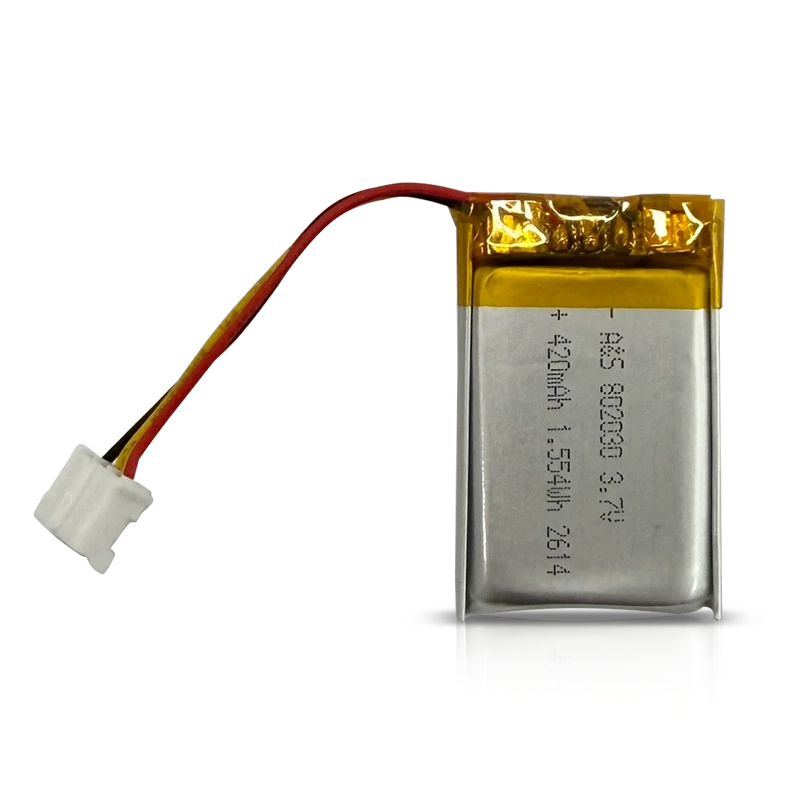

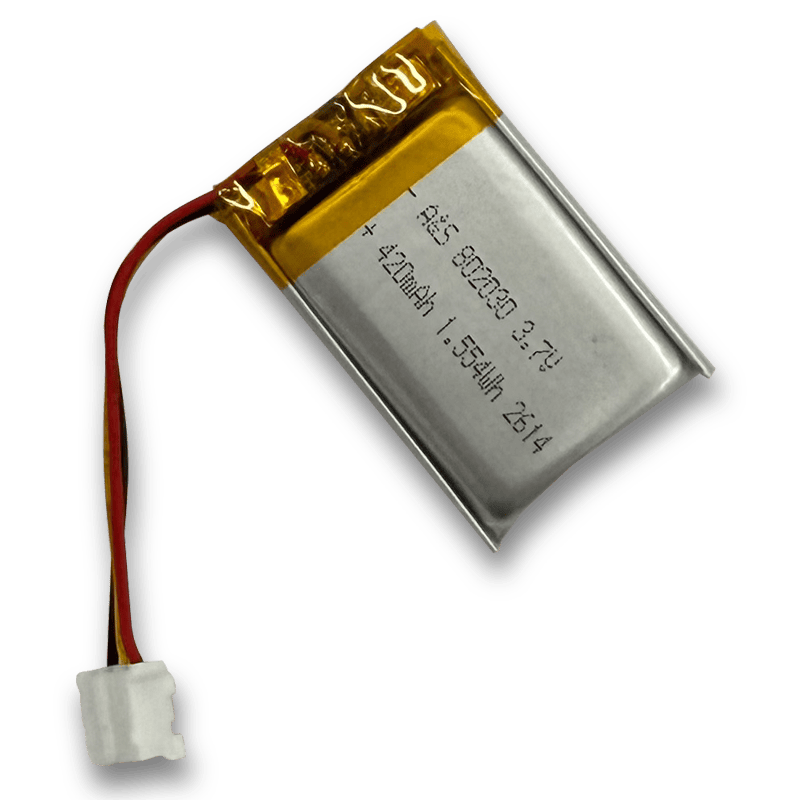

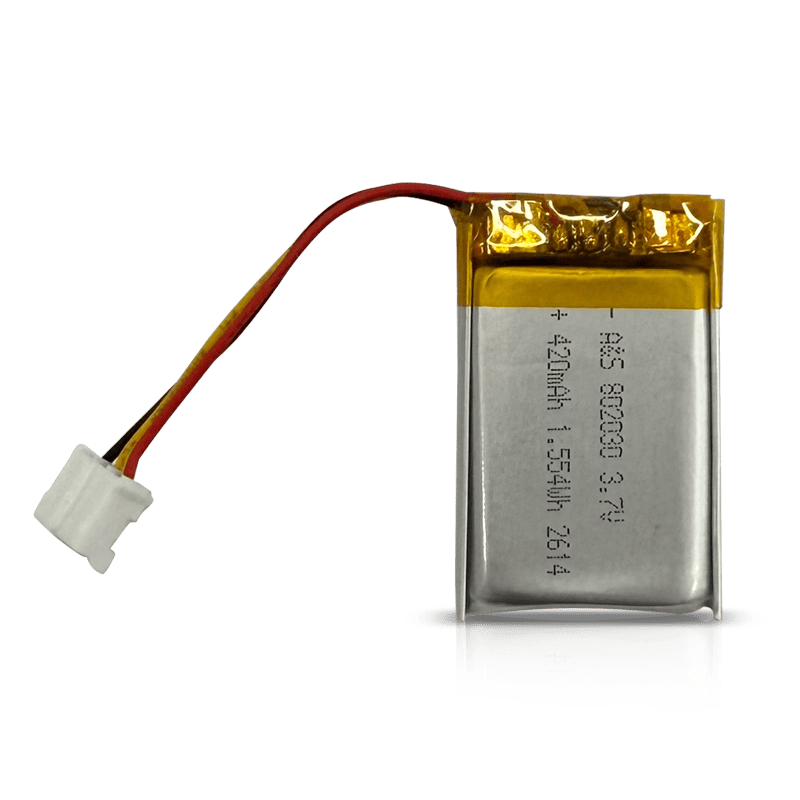

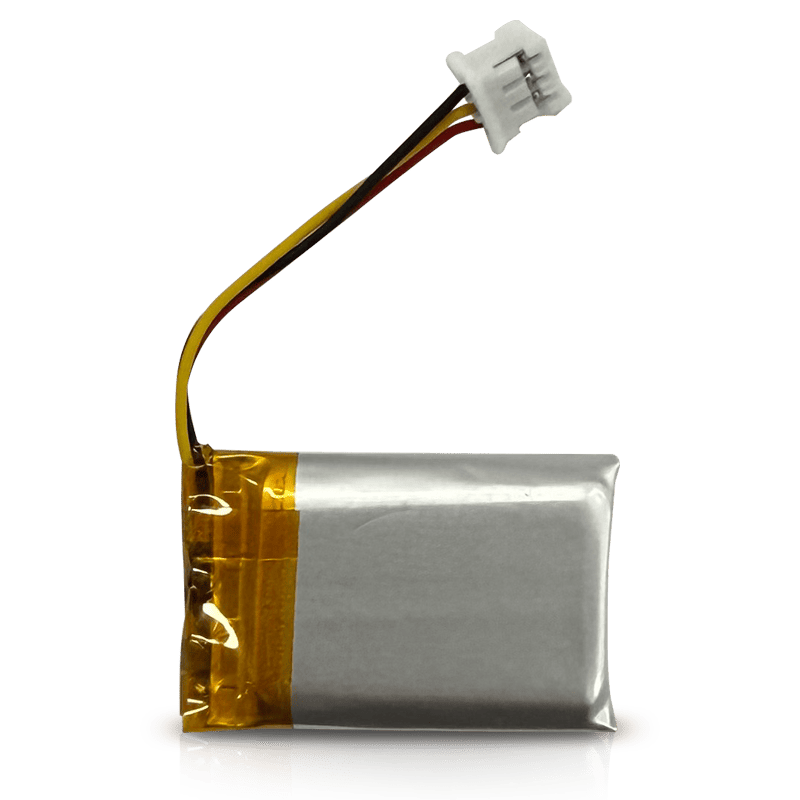

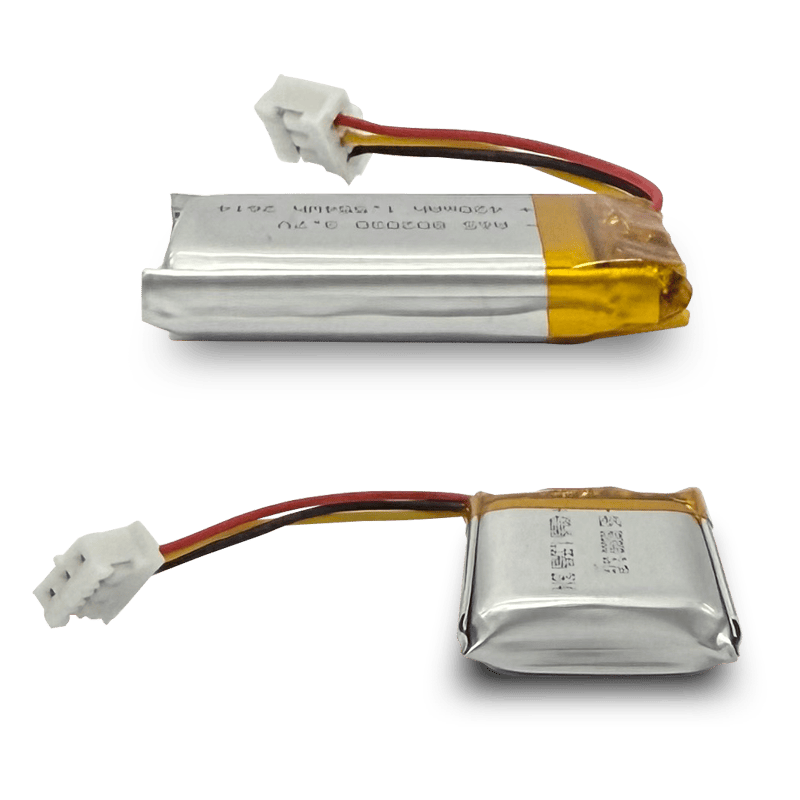

AS802030 3.7v 420mAh Lithium Polymer Battery Product Parameters:
|
Item
|
Rating
|
Note
|
|
3.1
|
Capacity
|
Typical
|
420 mAh
|
Temperature：25±5℃
Charge：0.2C
Discharge：0.2C
|
|
Minimum
|
350 mAh
|
|
3.2
|
Nominal Voltage
|
Average 3.7V
|
|
|
3.3
|
AC Impedance Resistance
|
≤100mΩ
|
Cell
|
| ≤380mΩ |
Battery Pack |
|
3.4
|
Discharge Cut-off Voltage |
3.0V
|
|
3.5
|
Charge Current
|
70 mA
|
Standard Charge
|
|
3.6
|
Charge Voltage
|
4.2V
|
Cut-off current ≤ 3.5mA
|
|
3.7
|
Charge Time
|
Approx 6 h
|
Standard Charge
|
|
3.8
|
Storage Humidity
|
< 85%RH
|
|
|
3.9
|
Max Charge Continuous
|
350mA
|
+10 ~ +45℃
|
|
3.10
|
Discharge Continuous
|
175mA
|
|
|
3.11
|
Max Discharge Continuous
|
350mA
|
+10 ~ +45℃
|
|
3.12
|
Weight
|
Approx 6g
|
|
|
3.13
|
Shipping Voltage
|
3.85 ~ 3.95V
|
|
|
3.14
|
Operating Temperature
|
Charge：0 ~ +45℃
Charge：10 ~ +45℃
Discharge：-20 ~ +60℃
|
Max Charge: 70mA
Max Charge: 350mA
|
|
3.15
|
Storage Temperature |
Less than 1 month
|
-10 ~ +45℃ |
Recommended storage temperature:
25±2℃ at shipment state |
| Less than 3 months |
-10 ~ +35℃ |
| Less than 6 months |
-10 ~ +30℃ |
 |
|

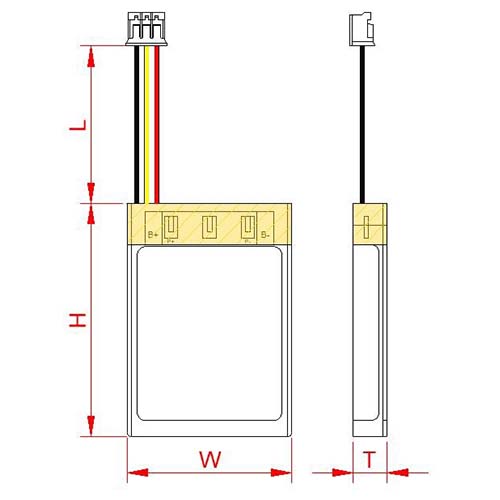

Item
|
Pack Dimension
|
|
T
|
6.2 mm max. (After 500 cycle life 6.51mm max)
|
|
W
|
20.5 mm max.
|
|
H
|
32.5 mm max.
|
|
L
|
33±3 mm (UL3302 28# AWG)
|
|
Connector
|
PHR-3
|
|
Target Applications & Form-Factor Compatibility:
-
Smart Wearables & Healthcare Devices: Smart wristbands, portable health monitors, and pulse oximeters requiring compact 3.7V power.
-
Wireless Audio & IoT Hardware: High-end Bluetooth headsets, voice recorders, and smart sensor nodes.
-
Direct Drop-in Replacement: Compatible replacement for standard 802030 / 802032 form-factor pouch cells.
Technical FAQ for Project Managers & Engineers
Q: How does this battery pack balance high energy density with safety in compact medical devices?
A: We utilize premium high-energy-density lithium polymer cells stacked with a precise, custom geometric layout to maximize capacity within tight space constraints. To ensure absolute reliability, each battery pack is integrated with a smart, customized BMS (Battery Management System) that provides redundant hardware protection against overcharging, over-discharging, short circuits, and thermal runaway. The entire design and manufacturing process are fully compliant with UL 2054, UL 1642, and IEC 62133 standards, making it ideal for regulatory-approved medical and wearable applications.
Performance
1 Standard Test Conditions
Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise defined, test and measurement shall be done under temperature of 25±2℃ and relative humidity of 45~85%. The test results are not affected evidently by such conditions of temperature 15~30℃ or humidity 25~85%RH.5.2 Measuring Instrument or Apparatus.
2 Measuring Instrument or Apparatus
2.1 Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale
of 0.01mm.
Custom Lithium Polymer Battery Solutions
1. Support Customized Battery Size:
The Same Battery Capacity We Can Do Different Sizes To Meet Customer Size Limitations;
2. Support Custom Wire And Plug:
Customized Wire And Plug According To Customer’s Use Scenario Requirements;
3. Support Customized Voltage:
We Support Customized Polymer Battery Packs To Meet Customers’ Demand For Battery Voltage And Capacity Through Series And Parallel Batteries;
4. Support Custom PCM Circuit Board:
In Addition To The Standard Overcharge, Overdischarge, Short Circuit Protection, We Also Support Temperature Overheat Protection, Communication Functions And Other Customized Services;
We specialize in providing customized lithium battery solutions for medical devices, GPS trackers, wearables, and more. Our products are known for their reliability, safety, and precision engineering. Whether you need high-capacity or ultra-slim battery packs, our engineering team is ready to help bring your project to life.
Battery Support Customization (Size Voltage Capacity BMS Chip Cable Plug)
|
 |
| Battery Cells |
With PCB and Wire |
With PCB Wire and Connector |
Battery Protection Board Support Customization
|
 |
Terminal Cable and Plug Support Customization
|
 |
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely.
 |
|
 |
|
 |
|
 |
Automatic Rolling Machine
|
|
Electrolyte Injecting Machine
|
|
Automatic Tape Sticking Machine
|
|
Automatic Slitting Machine
|
 |
|
 |
|
 |
|
 |
Fully Automatic Tablet Making Machine
|
|
Aluminum-Plastic Film Punching Machine
|
|
Ultra High Vacuum Baking Machine
|
|
Thermoforming
|
Partnerships
|
 |
Our Service
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries professional in English of course.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.
• 1 year warranty of products and good after-sale service offered, please get back if you got question.
Contact Us
Shenzhen A&S Power Technology Co., Ltd
Tel: +86-0755-28169348
Fax:+86-0755-84157385
E-mail: info@szaspower.com
sales@szaspower.com
Address: Rm1312,A Block,Weidonglong Business Building,No.2125 Meilong Rd,Longhua,Shenzhen,Guangdong,518109,CHINA
Our website lists just some of the products we have
successfully supplied,but please note this is just
representative and an example of our products&service,
so,if you cannot see the product you are looking for, please contact us today!!!
FAQs: AS802030 3.7V 420mAh Li-Po Battery
Q: What are the exact dimensions and key specifications of the AS802030 battery?
A: The battery measures approximately 8.0mm in thickness, 20mm in width, and 30mm in length ($\pm0.5\text{mm}$ tolerance). It has a nominal voltage of 3.7V and a capacity of 420mAh, providing a compact and lightweight energy solution.
Q: What safety certifications does this battery hold for global compliance?
A: It complies with international safety standards, including UL (UL1642 / UL2054), CE, RoHS, and REACH, along with UN38.3 and MSDS reports for air and sea transport.
Q: Can the wires, connectors, and protection circuitry (PCM/BMS) be customized?
A: Yes, full customization is available. You can request specific lead wire lengths, wire gauges (e.g., UL1007 AWG26/28), connectors (JST, Molex, Hirose, etc.), and custom PCM/BMS designs featuring overcharge, over-discharge, overcurrent, and short-circuit protection (NTC temperature sensors can also be included).
Q: Is this cell suitable for multi-cell battery pack configurations (Series/Parallel)?
A: Yes, cells can be configured into multi-series or multi-parallel battery packs (such as 1S2P, 2S1P) with customized BMS management according to your device’s voltage and runtime demands.
Q: What are the primary applications for the AS802030 battery?
A: It is ideal for space-constrained portable and wearable electronics, including:
Smart Wearables & Consumer Electronics: Bluetooth headsets, smartwatches, fitness trackers, and wireless audio devices.
Medical Devices: Portable pulse oximeters, wearable monitors, and personal health equipment.
IoT & Smart Hardware: GPS tracking units, smart locks, and compact sensor devices.
Q: What is the cycle life expectancy of this battery?
A: Under standard charge and discharge conditions, the cell maintains over 80% of its initial capacity after 500 cycles.
Q: What are the lead times for samples and mass production?
A: Sample delivery typically takes 3–7 working days if cells are in stock. Mass production lead time is generally 20–30 working days, depending on order volume and custom wiring specifications.
Q: What is the Minimum Order Quantity (MOQ)?
A: Flexible sampling is supported without strict MOQ constraints. For custom mass production orders (with custom leads/connectors), the standard MOQ is typically 1,000–3,000 pcs.
