Parameters
Norminal Capacity: 850mAh
Rated Voltage: 3.7V
Weight: 17g
Dimensions (mm): 3.2*30.5*82.5mm
lmpedance: ≤180mΩ
Standard Charge/Discharge: 0.2C
Max Charge/Discharge: 850mA 1.0CmA
Peak Discharge: 1.0CmA
Charge Temp: 0~+45℃
Discharge Temp: -20~+60℃
| Item |
|
Rating |
Note |
|
1.1
|
Capacity
|
Typical
|
850 mAh |
Temperature: 25±5℃
Charge: 0.2C
Discharge: 0.2C
|
|
Minimum
|
830 mAh |
| 1.2 |
Nominal Voltage |
Average 3.7V |
|
|
1.3
|
AC Impedance Resistance
|
≤60mΩ |
Cell |
| ≤180mΩ |
Battery Pack |
| 1.4 |
Discharge Cut-off Voltage
|
3.0V |
|
| 1.5 |
Charge voltage |
4.2V |
Cut-off current≤8.5mA |
|
1.6
|
Max Charge Continuous
|
850mA |
+10~+45℃ |
| 1.7 |
Max Discharge Continuous
|
850mA |
+10~+45℃ |
| 1.8 |
Weight |
|
Approx 17g |
|
| 1.9 |
Cycle Life |
500 cycles |
Capacity≥80% |
| 1.10 |
Shipping Voltage |
3.85-3.95V |
|
|
1.11
|
Operating Temperature
|
Charge
|
0~+45℃ |
Max Charge: 170mA |
| +10~+45℃ |
Max Charge: 850mA |
| Discharge |
-20~+60℃ |
Get more than 50% discharge capacity (typical) in -15°C or +55°C. |

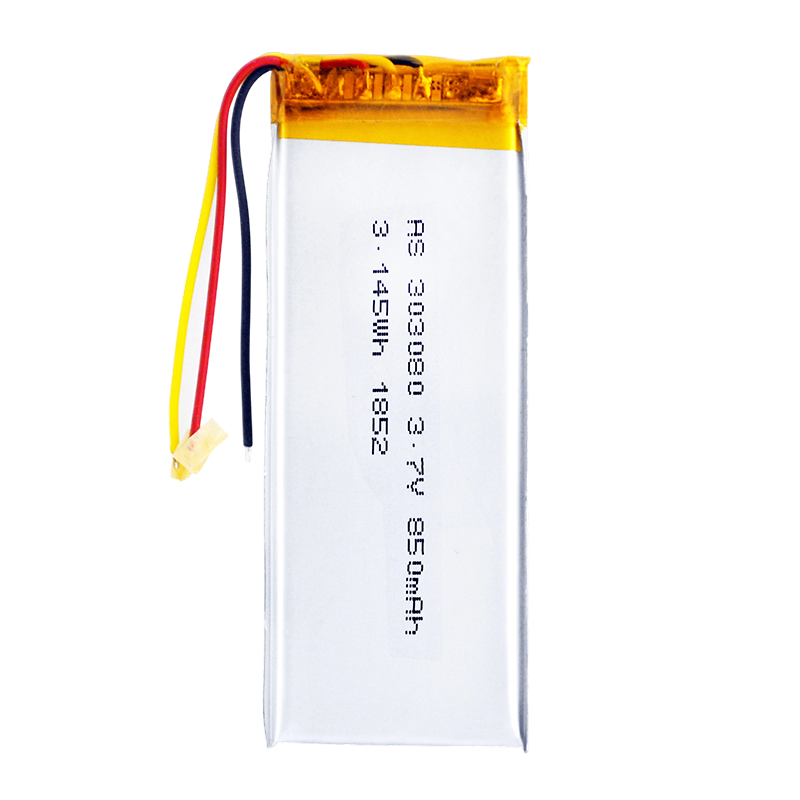

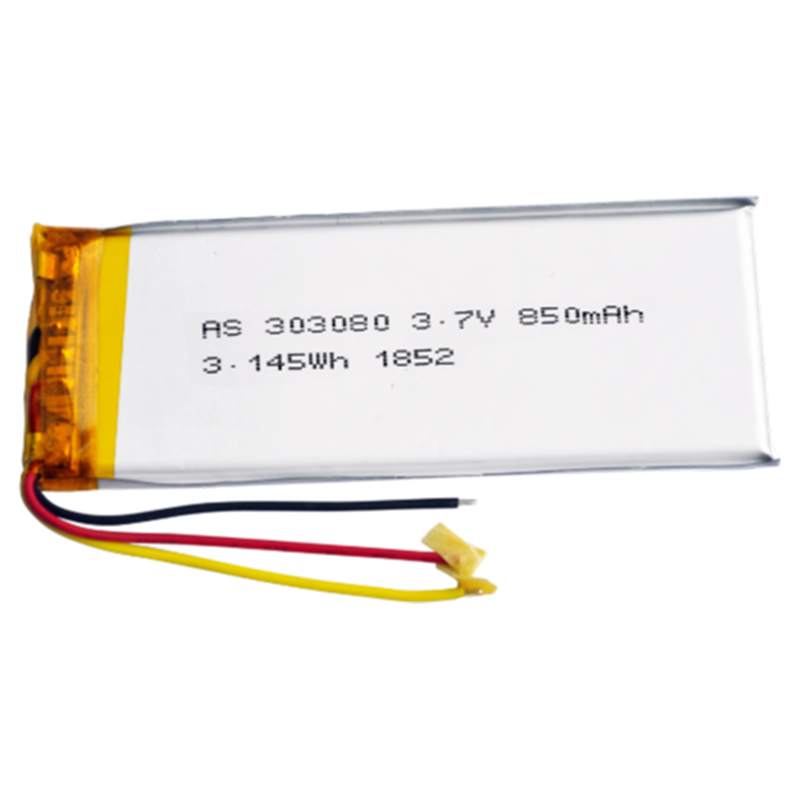

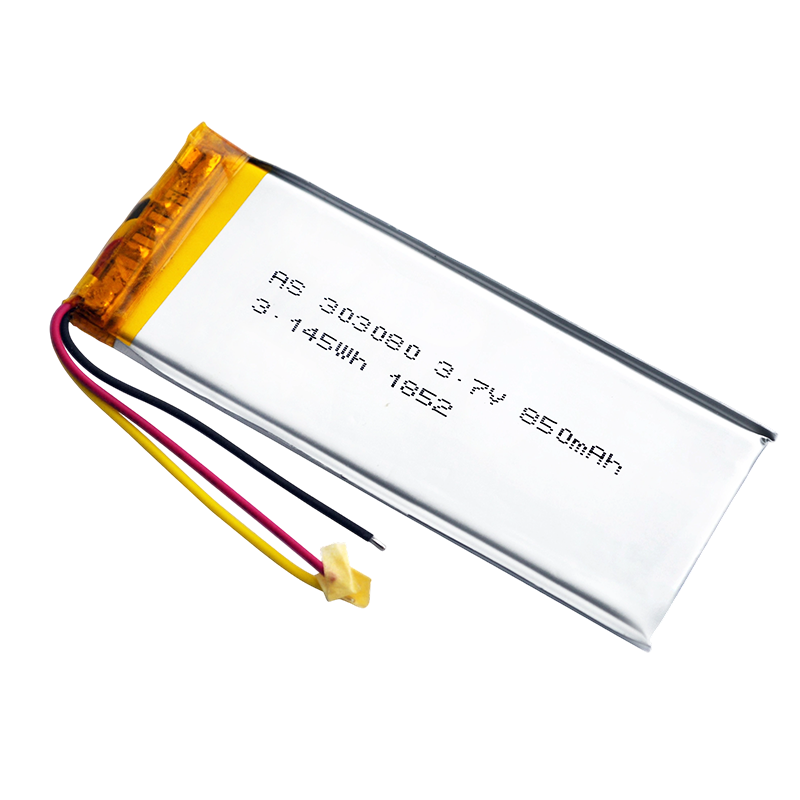

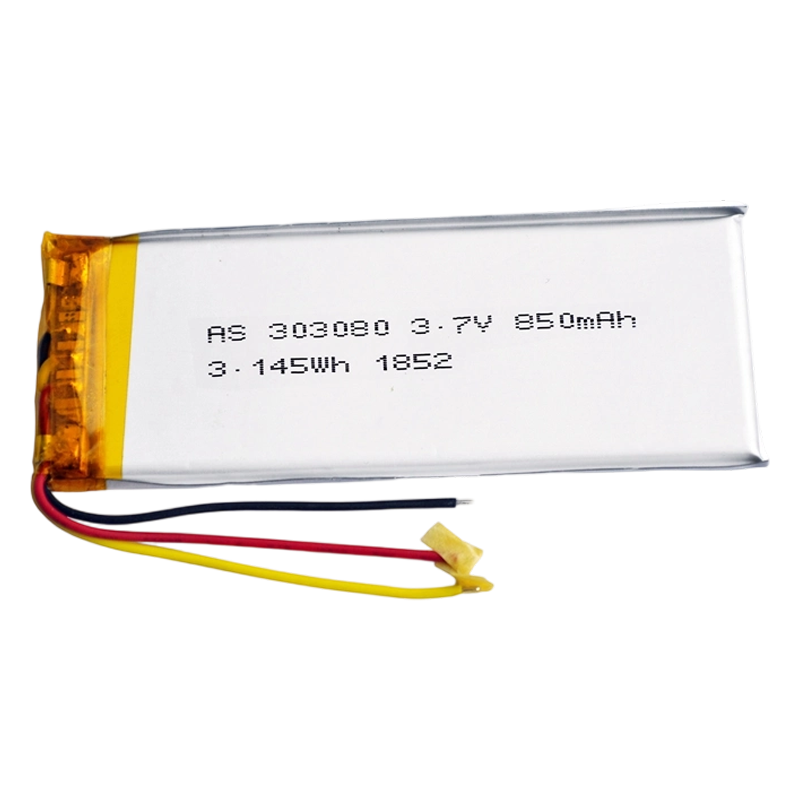

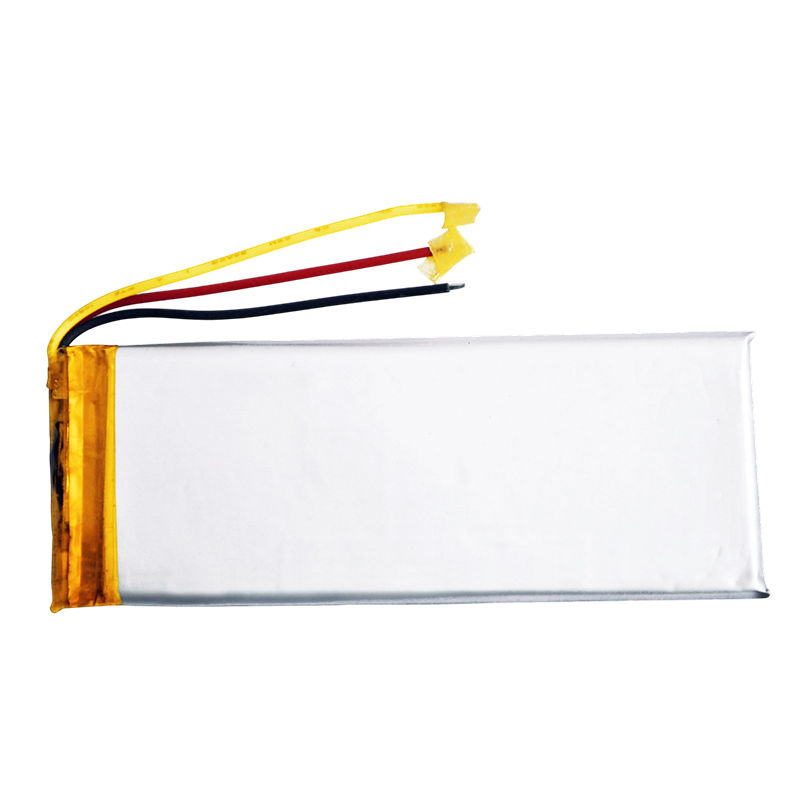

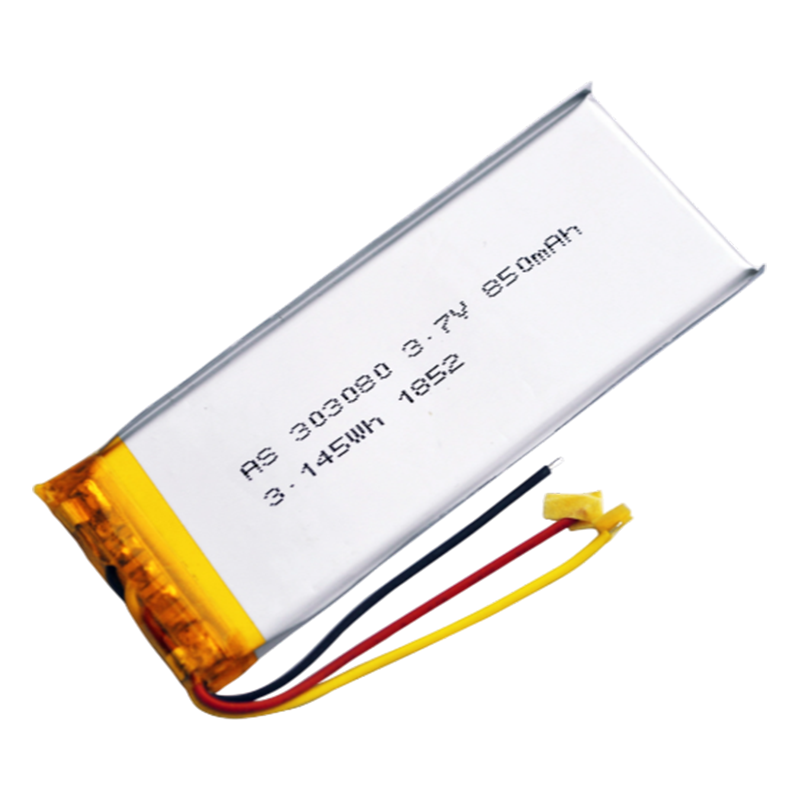

| Model Name: A&S 303080 |
| Overcharge detection voltage: 4.255--4.305V |
| Overdischarge detection voltage: 2.950--3.050V |
| Overcurrent protection current: 1~3.0A |
| NTC:10K,B=3435±1% |
|
| IC: DAA |
|
Specifications
Battery size: 3.2mm × 30.5mm × 82.5mm
Weight: Approx 17.0g
Electrical Characteristics
Nominal Voltage: Average 3.7V
Charge voltage: 4.2V
Discharge Cut-off Voltage: 3.0V

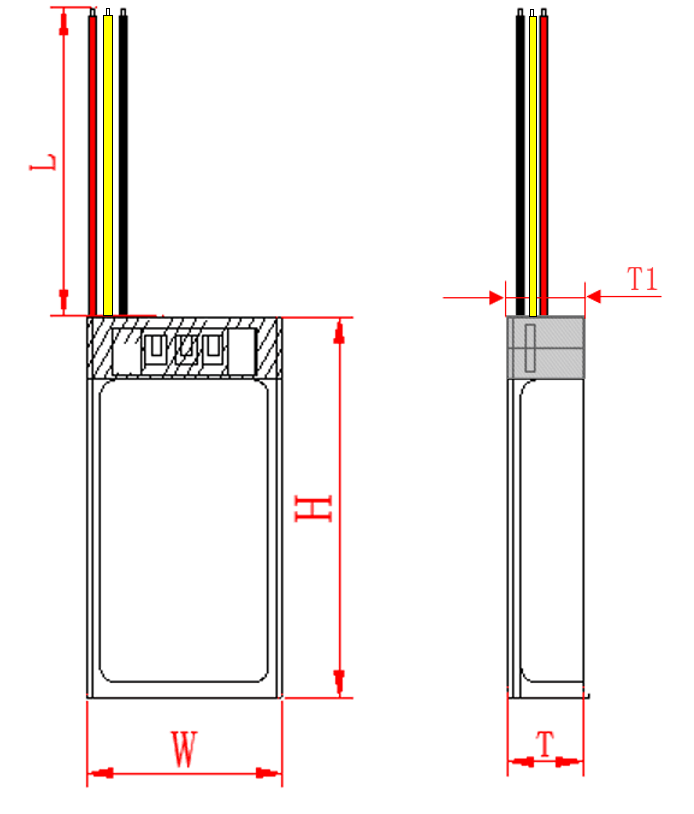

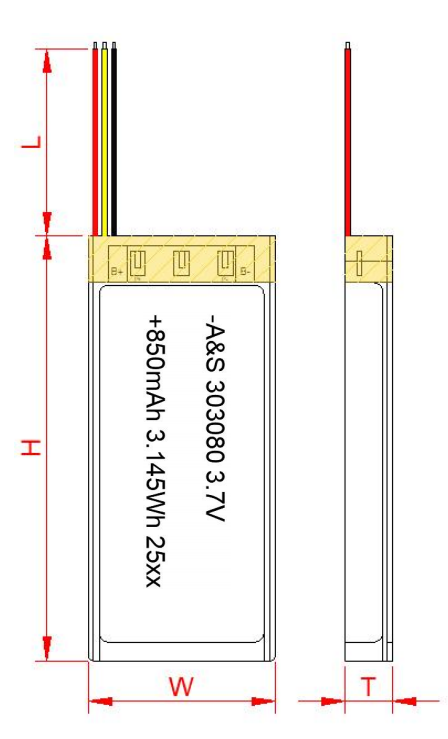

Dimensional Drawing of 303080 ：
 |
|
Item
|
Pack Dimension
|
|
T
|
3.0 mm max.（Max 3.15mm after 500 cycles life）
|
|
T1
|
3.2 mm max.
|
|
W
|
30.0±0.2 mm.
|
|
H
|
82.0±0.5 mm.
|
|
L
|
50.0±3.0 mm (UL3302 24# AWG)
|
|
Client Background
In 2018, we received an inquiry from Starkey, a well-known American hearing product brand. They were seeking a high-performance, ultra-thin, and safe battery for a new type of hearing aid. They had specific requirements for capacity and dimensions, and, as a medical product, the safety standards were extremely stringent.
Solution
Facing this challenge, we quickly assembled a dedicated team to develop a custom ultra-thin battery solution for them. After multiple rounds of technical collaboration and parameter adjustments, we successfully finalized and began mass production of a custom battery model: 303080, 3.7V 850mAh. To ensure compliance with medical-grade safety requirements, we not only strictly controlled production quality but also assisted in applying for multiple international authoritative certifications, including UL, IEC62133, CE, and UN38.3.
Outcome & Value
This high-performance, high-safety custom battery successfully won Starkey’s approval. Monthly shipments have stabilized at tens of thousands of units, making it a reliable power source for their hearing aid products. Even more gratifyingly, the successful cooperation with Starkey also opened doors for us to collaborate with other international well-known companies such as Jabil and Keytronic, enhancing our company’s market influence in the field of custom batteries.
 |
 |
Performance
1 Standard Test Conditions
Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise defined, test and measurement shall be done under temperature of 25±2℃ and relative humidity of 45~85%. The test results are not affected evidently by such conditions of temperature 15~30℃ or humidity 25~85%RH.5.2 Measuring Instrument or Apparatus.
2 Measuring Instrument or Apparatus
2.1 Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.
Custom Lithium Polymer Battery Solutions
1. Support Customized Battery Size:
The Same Battery Capacity We Can Do Different Sizes To Meet Customer Size Limitations;
2. Support Custom Wire And Plug:
Customized Wire And Plug According To Customer’s Use Scenario Requirements;
3. Support Customized Voltage:
We Support Customized Polymer Battery Packs To Meet Customers’ Demand For Battery Voltage And Capacity Through Series And Parallel Batteries;
4. Support Custom PCM Circuit Board:
In Addition To The Standard Overcharge, Overdischarge, Short Circuit Protection, We Also Support Temperature Overheat Protection, Communication Functions And Other Customized Services;
We specialize in providing customized lithium battery solutions for medical devices, GPS trackers, wearables, and more. Our products are known for their reliability, safety, and precision engineering. Whether you need high-capacity or ultra-slim battery packs, our engineering team is ready to help bring your project to life.
Battery Support Customization (Size Voltage Capacity BMS Chip Cable Plug)
|
 |
| Battery Cells |
With PCB and Wire |
With PCB Wire and Connector |
Battery Protection Board Support Customization
|
 |
Terminal Cable and Plug Support Customization
|
 |
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely.

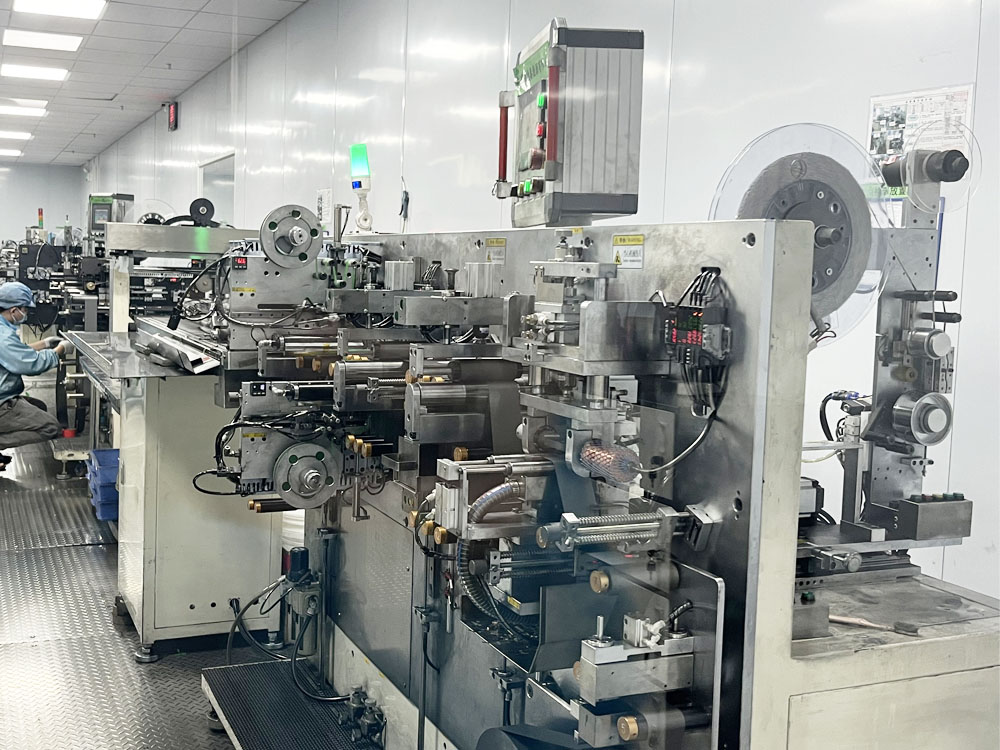

Automatic Rolling Machine

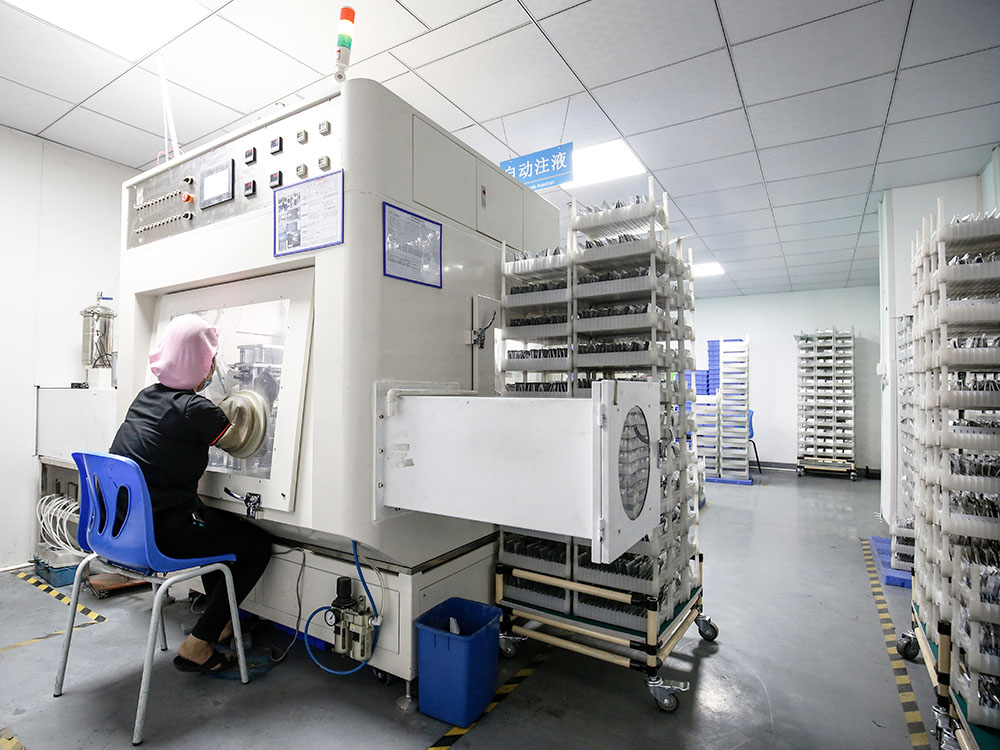

Electrolyte Injecting Machine

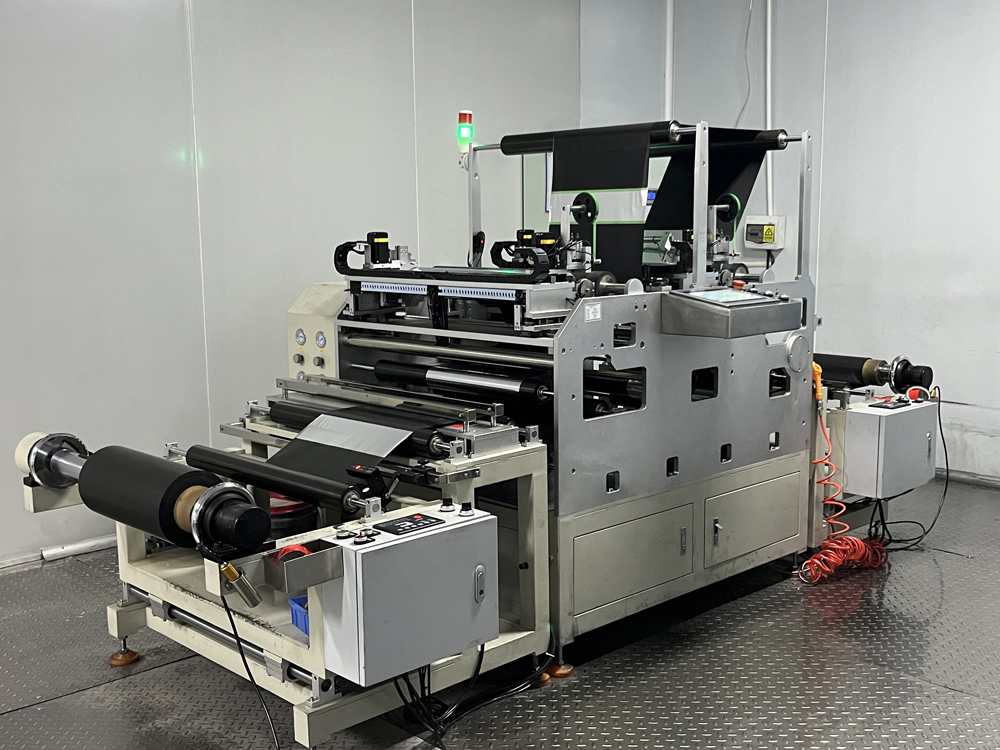

Automatic Tape Sticking Machine

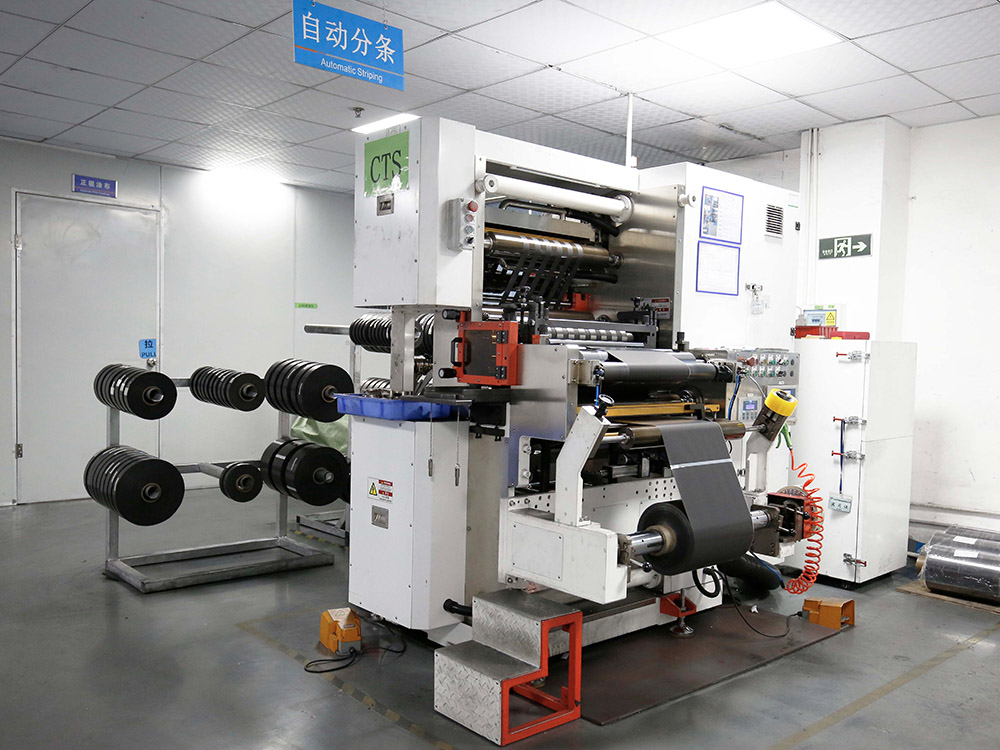

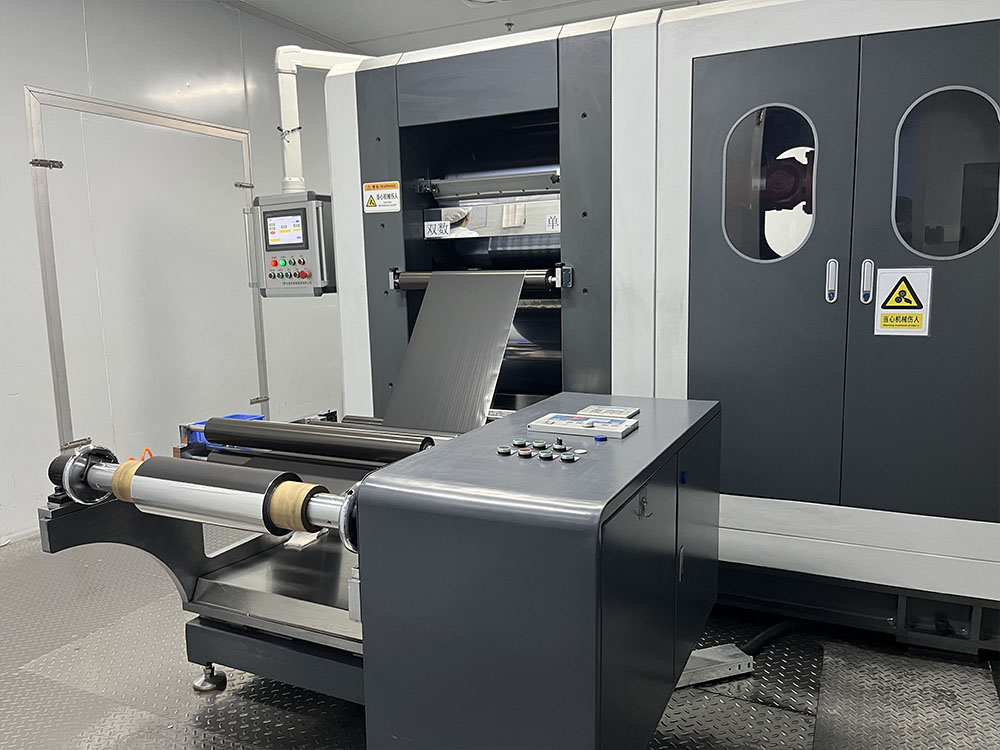

Automatic Slitting Machine
Fully Automatic Tablet Making Machine

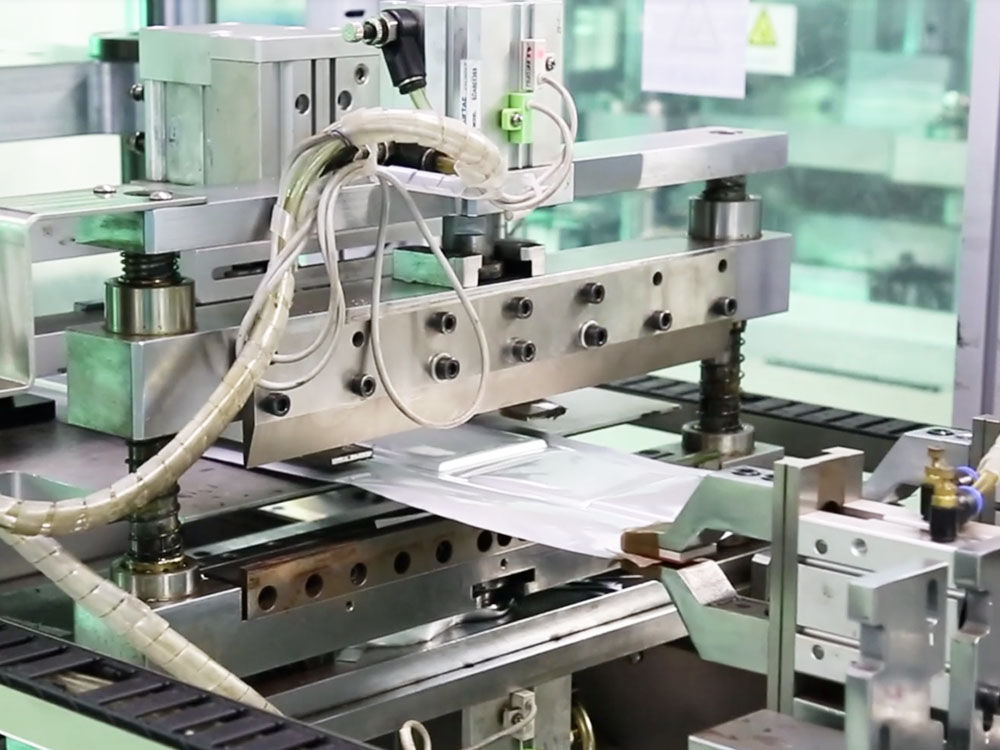

Aluminum-Plastic Film Punching Machine

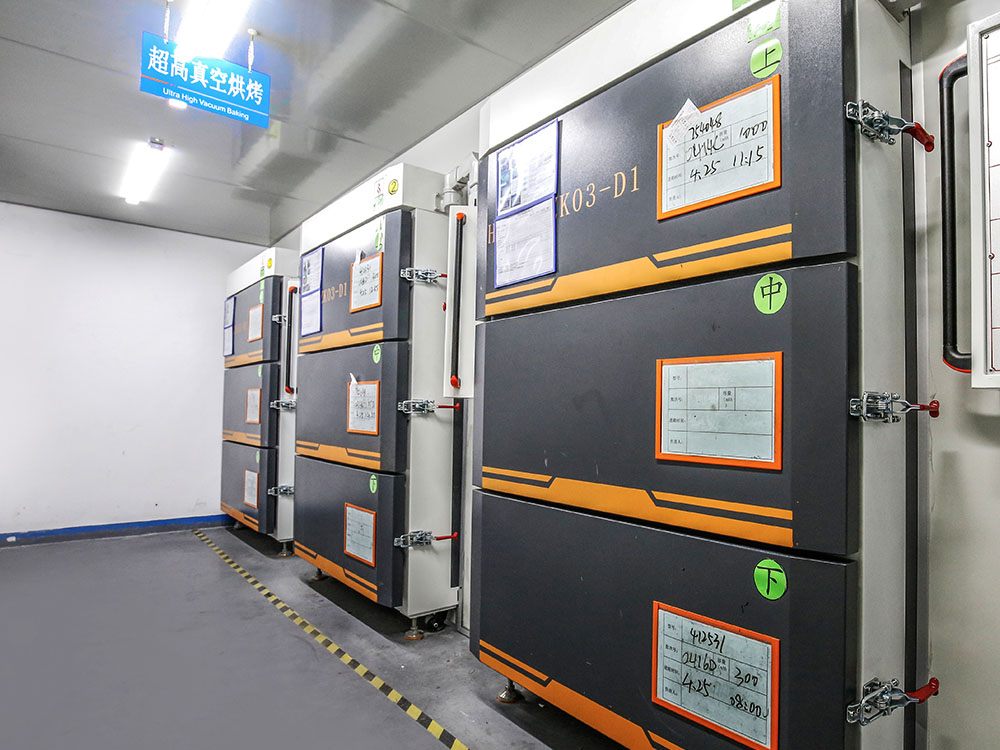

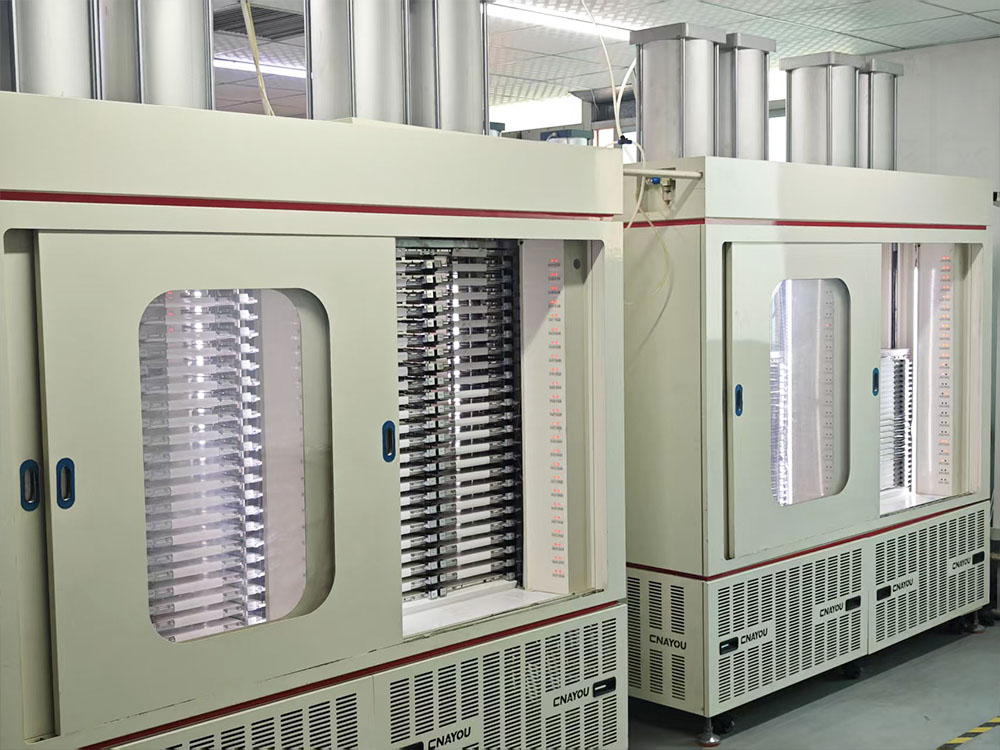

Ultra High Vacuum Baking Machine
