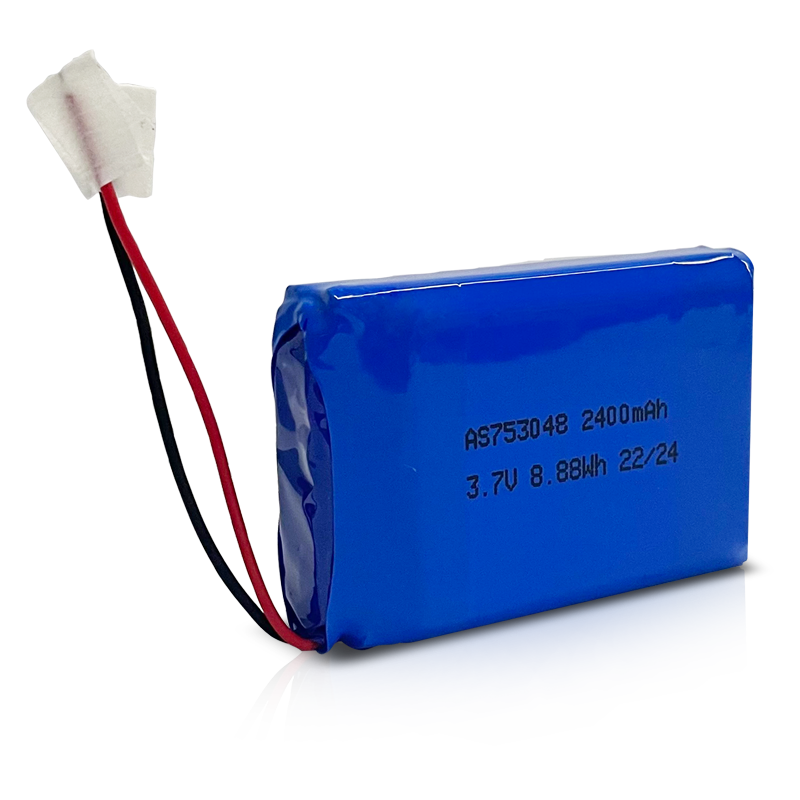

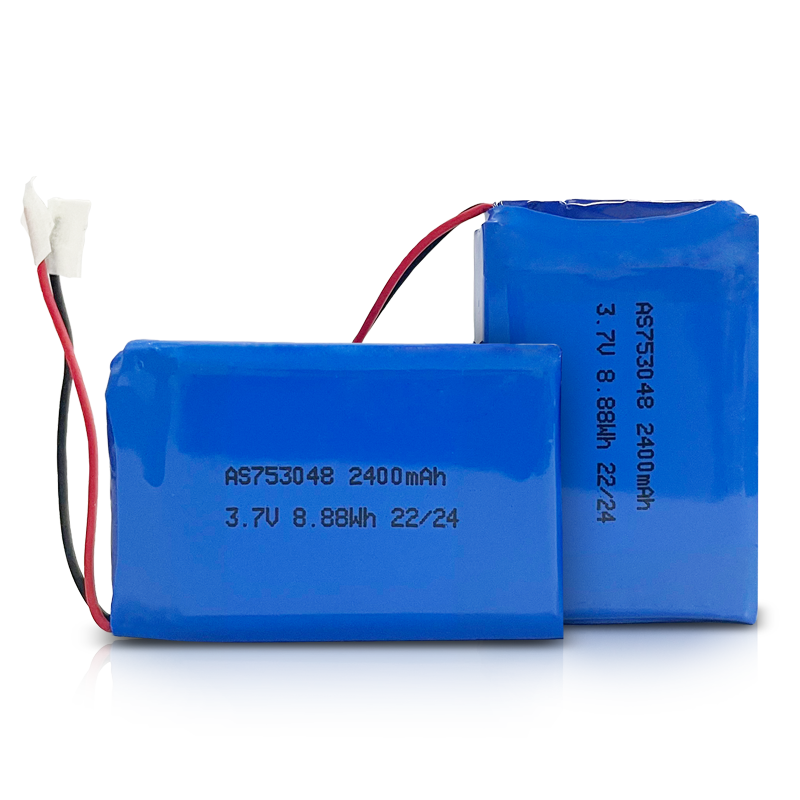

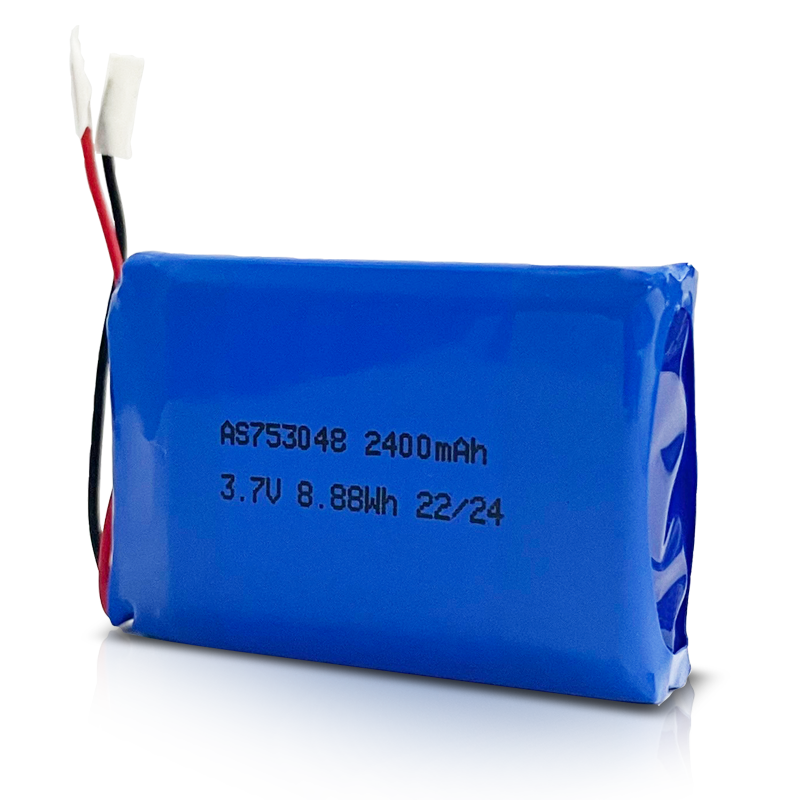

Parameters
Norminal Capacity: 2400mAh
Rated Voltage: 3.7V
Weight: 40g
Dimensions (mm): 15.5*31*51mm
lmpedance: ≤220mΩ
Standard Charge/Discharge: 0.2C
Max Charge/Discharge: 2400mA
Peak Discharge: 1.0CmA
Charge Temp: 0~+45℃
Discharge Temp: -20~+60℃
Product Parameters:
|
Item
|
Rating
|
Note
|
|
3.1 Capacity
|
Typical
|
2400mAh
|
Discharge:0.2CmA
|
|
Minimum
|
2300mAh
|
|
3.2 Nominal Voltage
|
Average 3.7V
|
|
|
3.3 AC Impedance Resistance
|
≤180mΩ
|
|
|
3.4 Discharge Cut-off Voltage
|
3.00V
|
|
|
3.5 Charge Current
|
480 mA
|
Standard Charge
|
|
3.6 Charge Voltage
|
4.2V
|
|
|
3.7 Max Charge Voltage
|
4.23V
|
|
|
3.8 Storage humidity
|
< 85%RH
|
Hygrometer
|
|
3.9 Max Charge Current
|
2400mA
|
1.0CmA
|
|
3.10 Max Discharge Current
|
2400mA
|
1.0 CmA
|
|
3.11 Weight
|
Approx 47g
|
|
|
3.12 Operating
Temperature
|
Charge
|
0~+45°C
|
|
|
Discharge
|
-20~+60°C
|
|
|
3.13 Storage
Temperature
|
less than 1 month
|
-20~+45°C
|
Recommended storage
temperature: 20°C,at the
shipment state
|
|
less than 3 months
|
-20~+35°C
|
Product Description：
This high-quality lithium polymer battery is designed to meet the demands of various B2B applications. With a capacity of 3.7v and 850mAh, it offers excellent discharge performance, ensuring uninterrupted power supply to your devices. It is UL, CB, KC, CE, and UN38.3 certified, making it a reliable and safe option for your business needs.
The battery has been tested and certified to undergo 500 cycles, which means it can be recharged and used up to 500 times without losing its capacity. This ensures long-lasting performance and helps reduce the cost of replacing batteries frequently.
One of the key features of this battery is its lightweight design, which makes it easy to carry and ideal for portable devices. It is also available in customized sizes to fit your specific requirements. This flexibility in size ensures that it can be used in a wide range of applications, including medical devices, industrial equipment, and handheld devices.
The excellent discharge performance of this battery ensures that it can deliver a consistent and stable power supply to your devices, even in high-drain situations. This makes it ideal for applications that require high levels of power, such as mobile phones and other handheld devices.
In summary, this lithium polymer battery is a reliable and safe option for your B2B needs. Its UL, CB, KC, CE, and UN38.3 certifications ensure that it meets the highest safety standards. With a 500-cycle lifespan, lightweight design, and excellent discharge performance, it provides reliable power to meet the demands of your business. Its customizable size also makes it a versatile option for a wide range of applications.
 |
 |
Performance
1 Standard Test Conditions
Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise defined, test and measurement shall be done under temperature of 25±2℃ and relative humidity of 45~85%. The test results are not affected evidently by such conditions of temperature 15~30℃ or humidity 25~85%RH.5.2 Measuring Instrument or Apparatus.
2 Measuring Instrument or Apparatus
2.1 Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.
Custom Lithium Polymer Battery Solutions
1. Support Customized Battery Size:
The Same Battery Capacity We Can Do Different Sizes To Meet Customer Size Limitations;
2. Support Custom Wire And Plug:
Customized Wire And Plug According To Customer’s Use Scenario Requirements;
3. Support Customized Voltage:
We Support Customized Polymer Battery Packs To Meet Customers’ Demand For Battery Voltage And Capacity Through Series And Parallel Batteries;
4. Support Custom PCM Circuit Board:
In Addition To The Standard Overcharge, Overdischarge, Short Circuit Protection, We Also Support Temperature Overheat Protection, Communication Functions And Other Customized Services;
We specialize in providing customized lithium battery solutions for medical devices, GPS trackers, wearables, and more. Our products are known for their reliability, safety, and precision engineering. Whether you need high-capacity or ultra-slim battery packs, our engineering team is ready to help bring your project to life.
Battery Support Customization (Size Voltage Capacity BMS Chip Cable Plug)
|
 |
| Battery Cells |
With PCB and Wire |
With PCB Wire and Connector |
Battery Protection Board Support Customization
|
 |
Terminal Cable and Plug Support Customization
|
 |
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely.
 |
|
 |
|
 |
|
 |

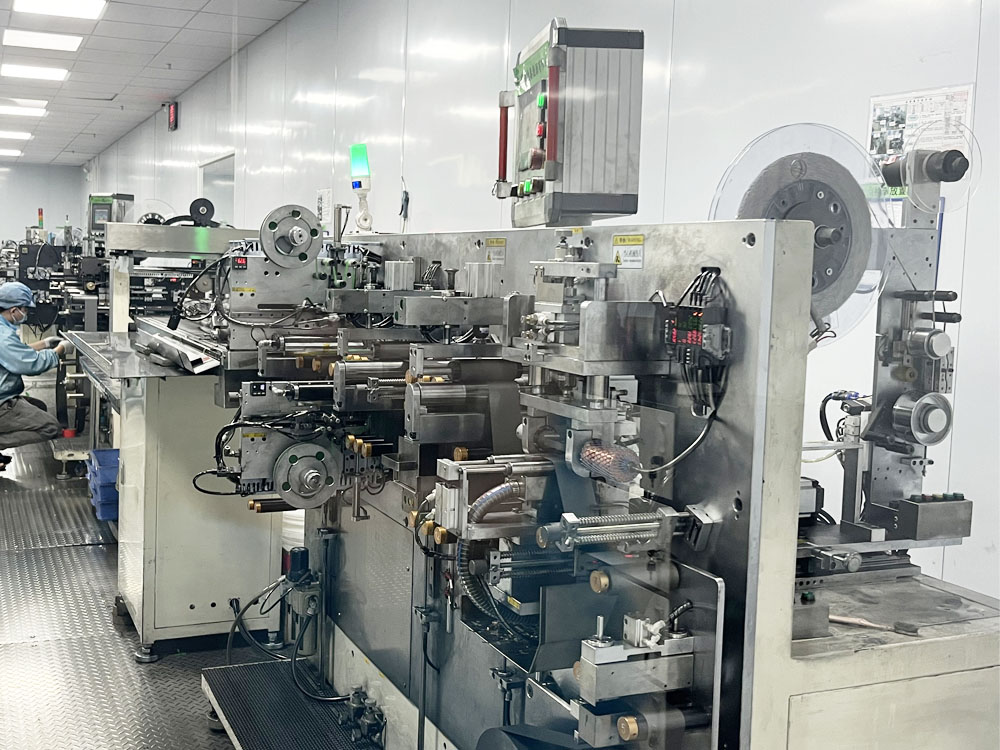

Automatic Rolling Machine
|
|

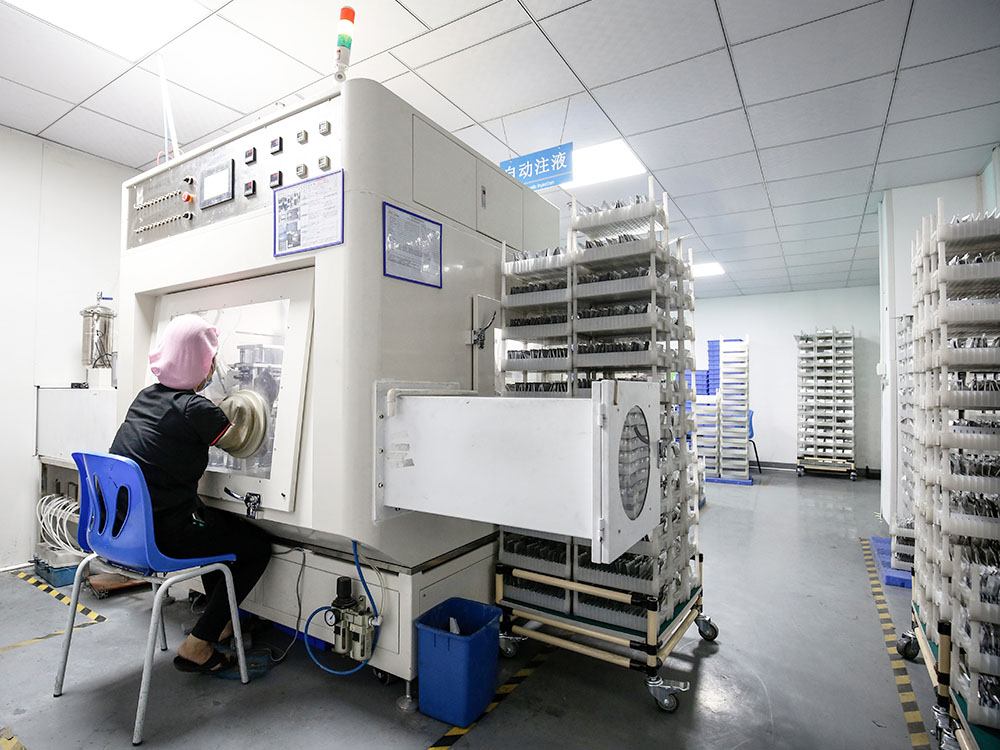

Electrolyte Injecting Machine
|
|
Automatic Tape Sticking Machine
|
|

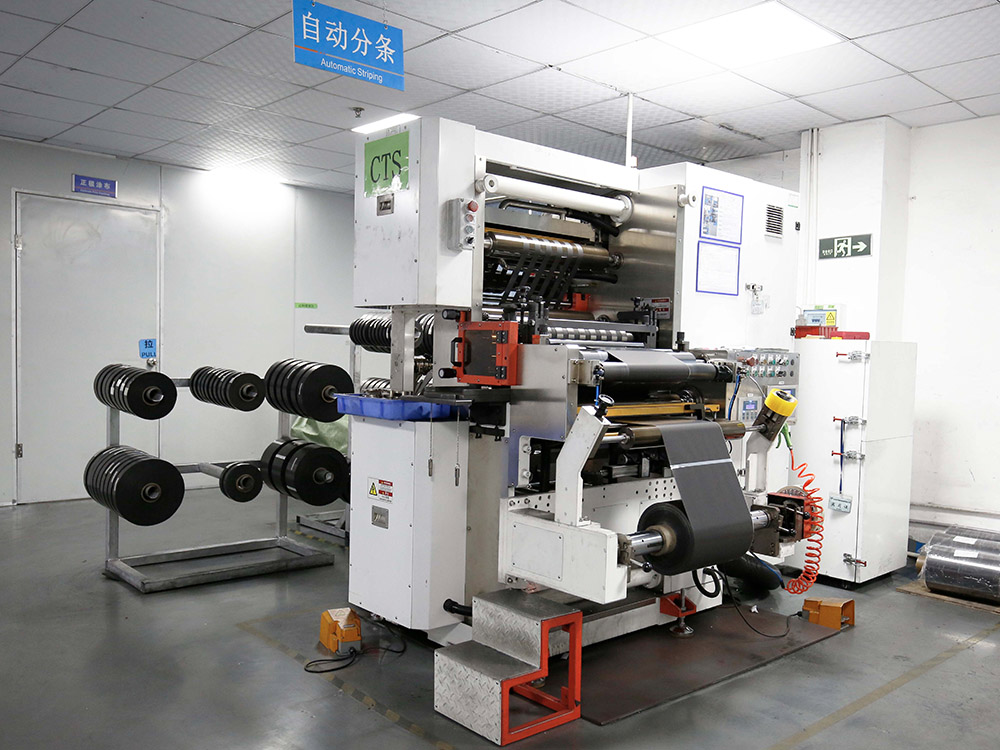

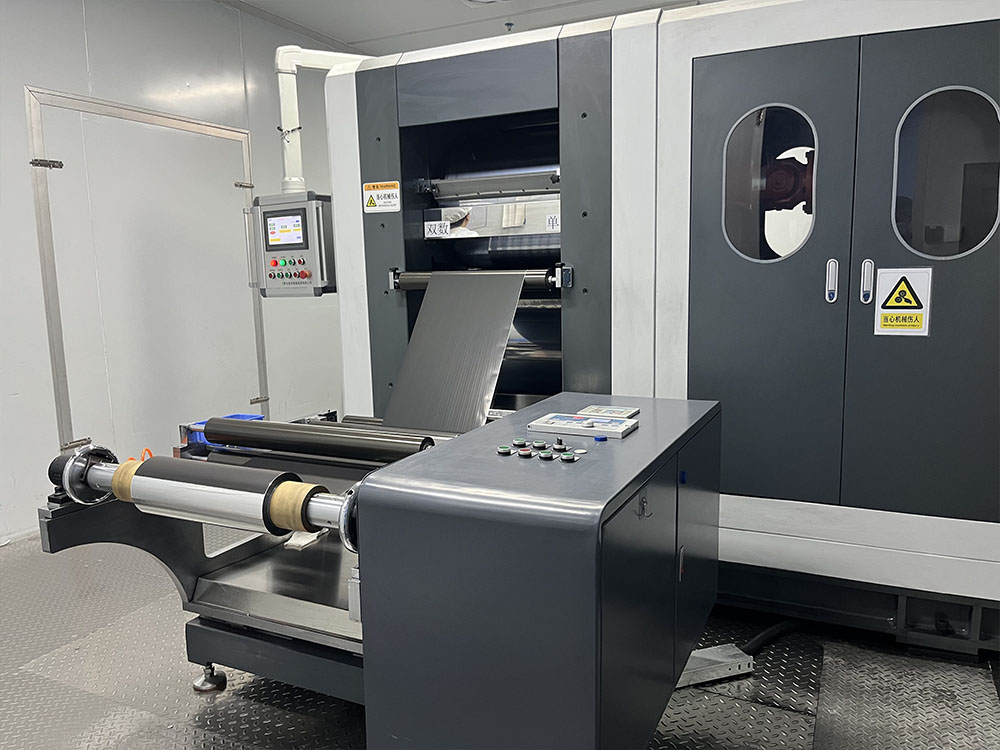

Automatic Slitting Machine
|
 |
|
 |
|
 |
|
 |
Fully Automatic Tablet Making Machine
|
|

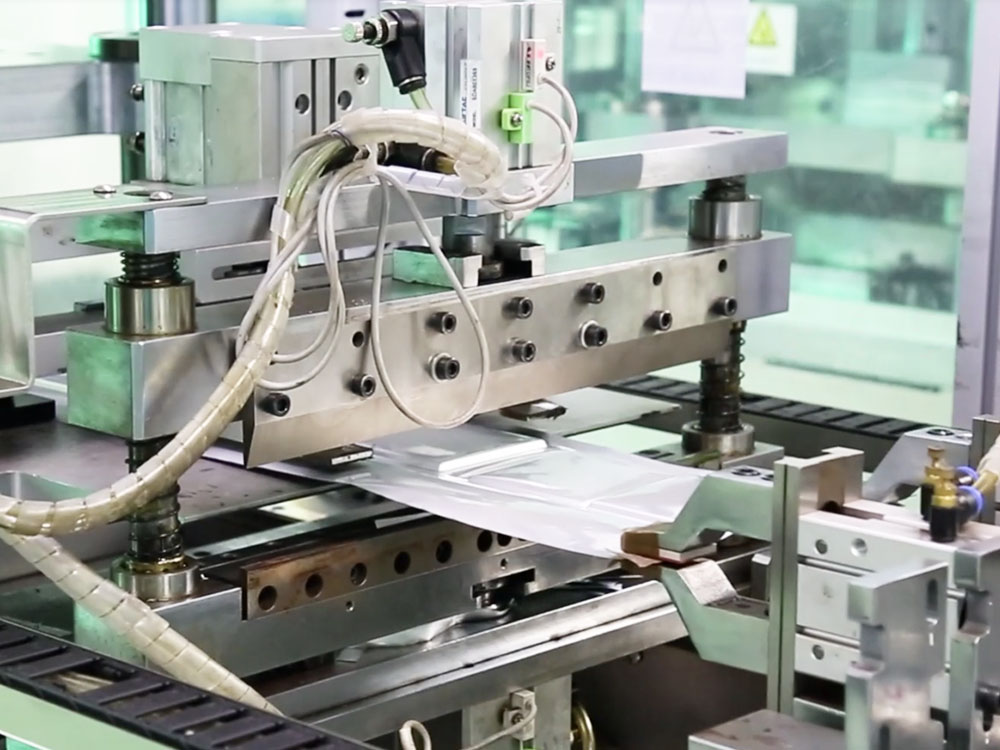

Aluminum-Plastic Film Punching Machine
|
|

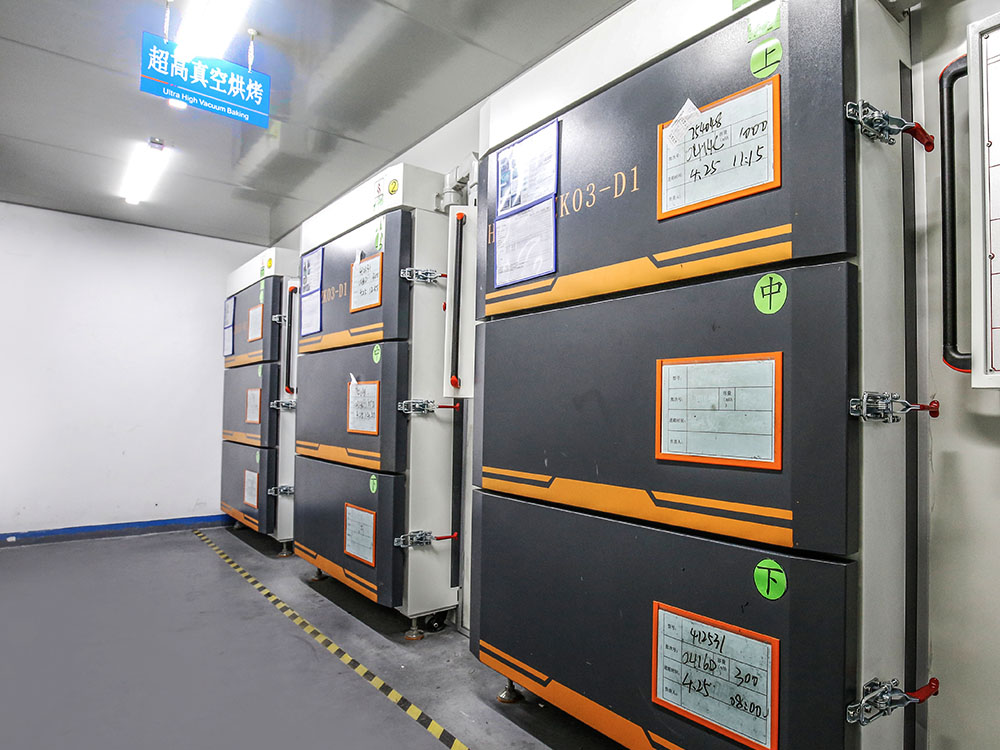

Ultra High Vacuum Baking Machine
|
|
Thermoforming
|
Partnerships
|
 |
Our Service
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries professional in English of course.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.
• 1 year warranty of products and good after-sale service offered, please get back if you got question.
